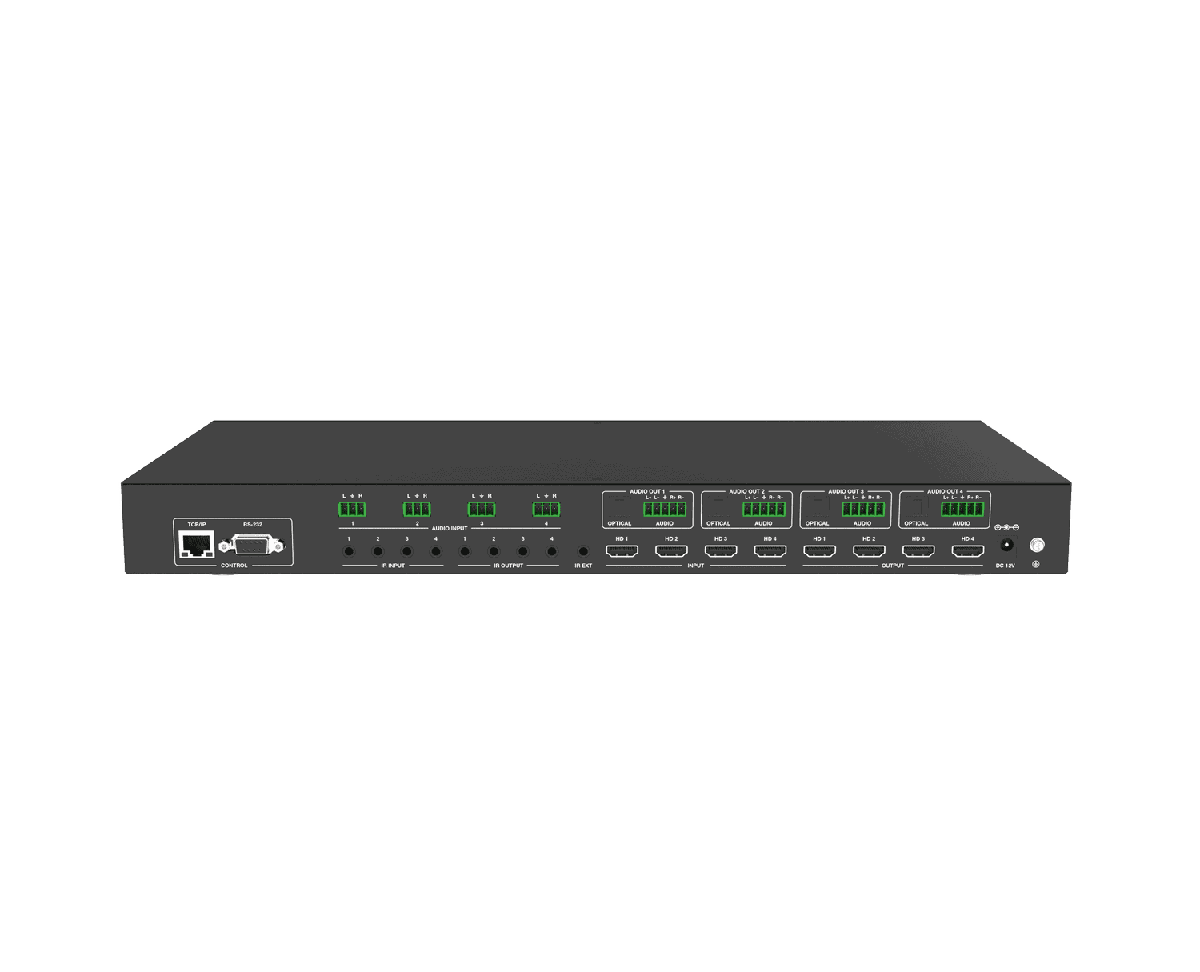

VigilLink VLVW-MX44P 4x4 Seamless HDMI Matrix with Video Wall and Multiviewer

The VLVW-MX44P is an 18Gbps 4x4 seamless HDMI matrix switcher that also handles multiview and video wall processing. Any of the four sources can be sent to any of the four outputs with zero-frame-loss transitions.

Viewing modes include full screen, multi-window, and video wall, so a command centre, a signage run, or a collaborative workspace can change layout without changing hardware.

HDMI ComplianceHDMI 2.0
HDCP ComplianceHDCP 2.2
Video Bandwidth594MHz/18Gbps
Video Resolution480i ~1080P@50/60Hz, 4K2K@24/30Hz, 4K2K@60Hz
Audio FormatsLPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS- 96/24, DTS High Res, DTS-HD Master Audio
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12-bit
HousingMetal Enclosure
