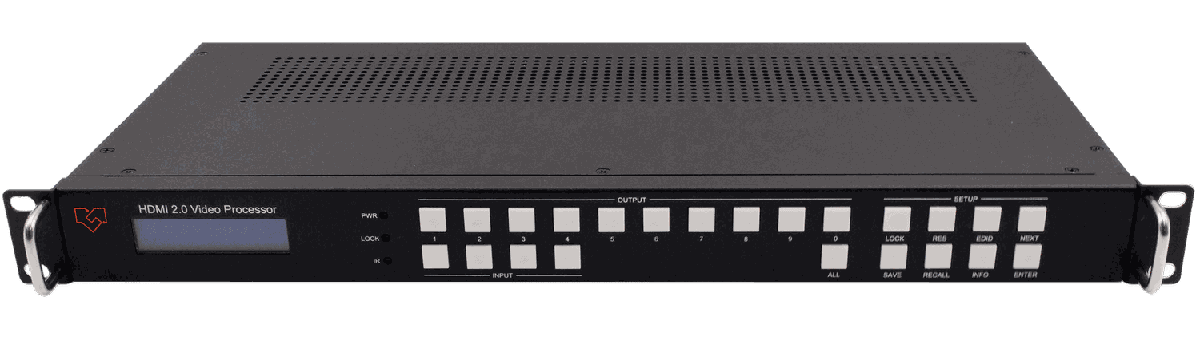

VigilLink VLVW-MX416P LCD and LED Video Wall Controller with Multi-Viewer and Seamless Matrix

The VLVW-MX416P is a seamless matrix switcher, multiviewer, and video wall controller in one frame, handling resolutions up to 3840x2160 and 4096x2160 at 60Hz. It drives both LCD and LED video walls, which is what makes it usable across a control room and a signage installation.

Switching between sources is seamless with no interruption at the display, across 18Gbps of HDMI 2.0 bandwidth with HDCP 2.2 content protection. Display configuration is flexible enough to cover control rooms, digital signage, broadcast, and command centre layouts.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	594MHz (18Gbps)
Video Resolution	Up to 3840x2160/4096x2160@60Hz

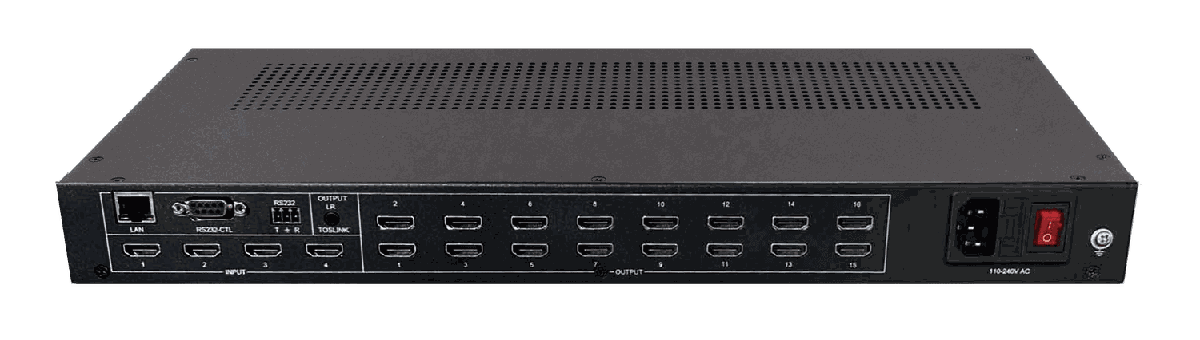

Input	4x INPUT [HDMI Type A, 19-pin female]
Output	16x OUTPUT [HDMI Type A, 19-pin female] 1x LR/TOSLINK OUTPUT [3.5mm Stereo Mini-jack]
Audio Format	LPCM 2.0
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
