Tascam RX-BT10 Stereo Bluetooth Receiver
The RX-BT10 brings a phone or laptop source into an installed system over Bluetooth 5.1 at Class 1 power, which gives roughly 100 m of unobstructed range instead of the few metres a consumer receiver manages. That range is what makes it usable when the rack is in a back room and the phone is in the hall.

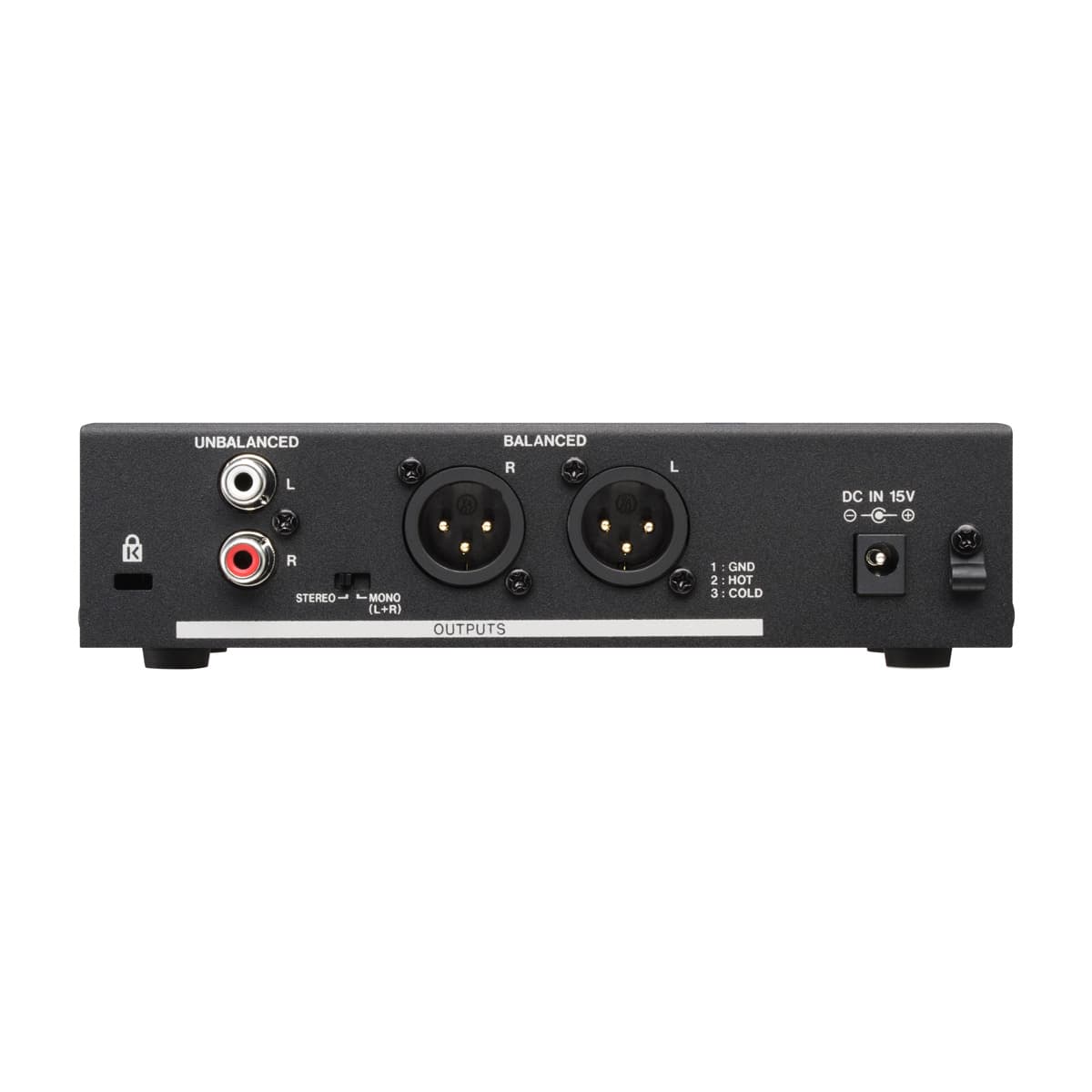

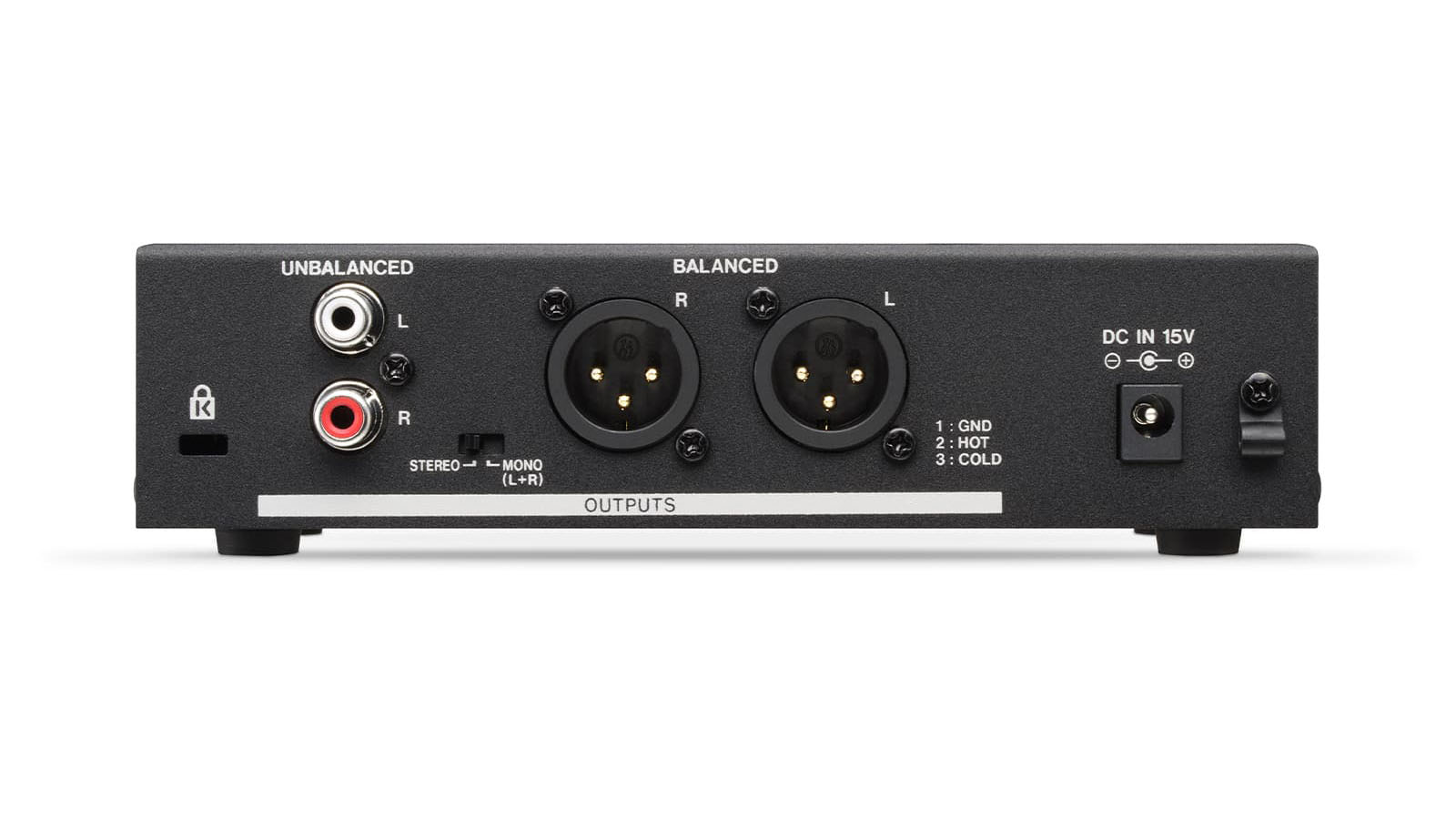

Output is on balanced XLR alongside unbalanced RCA, so it feeds a professional input directly without a DI. The enclosure is metal and rackmountable, measuring 171 by 45 by 73 mm and weighing 530 g, and the unit runs from the PS-M1524 adapter at 1.7 W. Frequency response is 20 Hz to 20 kHz and channel separation is 100 dB or better.
| Channel separation | 100dB or more |
|---|---|
| Power Input voltage | AC100 - 240V (50 - 60Hz) |
| Bluetooth® Output class | Class 1 (about 100m unobstructed transmission range* ) |
| LINE OUT (UNBALANCED) Connectors | RCA pin jacks |
| Frequency response | 20Hz - 20kHz: +0.5dB/-1dB |
| Other Power | Specialized AC adapter (PS-M1524) |
| Other Dimensions | 171 x 45 x 73 mm (width x height x depth, excluding protrusions) |
| Other Weight | 530g |
