Tascam DR-70D 4-Channel Audio Recorder for DSLR / Video

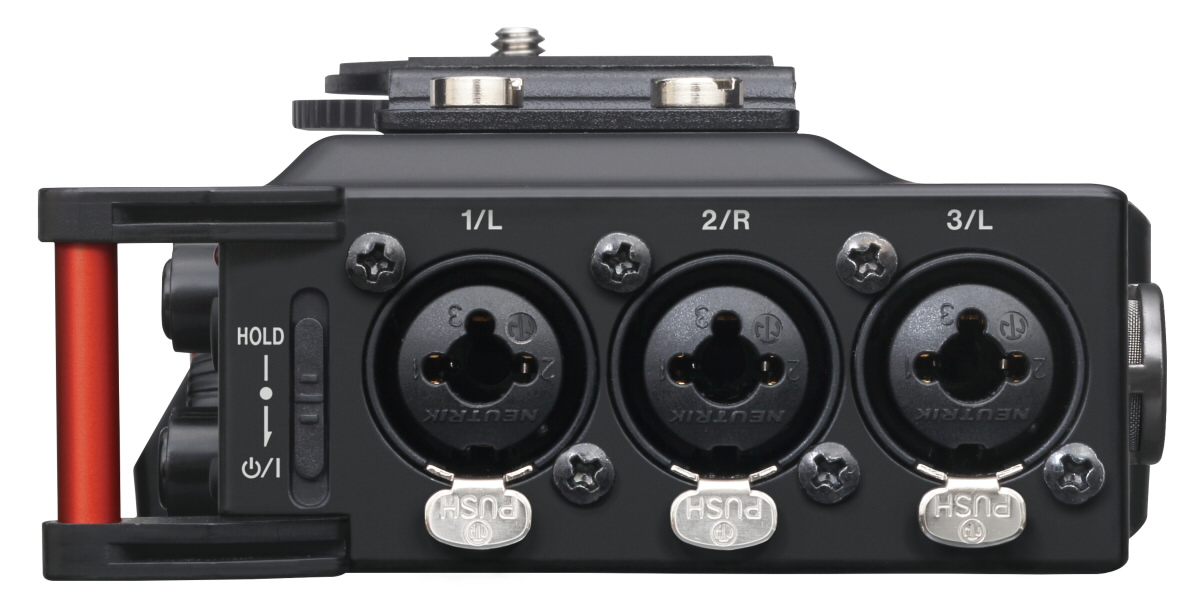

The DR-70D mounts above or below a camera and records four channels at once through balanced XLR/TRS combo inputs with switchable 24V/48V phantom power, so a boom and a pair of lavs can all run into camera-ready audio instead of a scratch track. Tascam's HDDA mic preamps keep equivalent input noise down around -120 dBu, and a built-in 4-in/2-out mixer lets it output a stereo mix to the camera while the four discrete channels record separately as a safety and editing backup.
Dual recording mode captures a second set of files at a different level in case a channel clips, and a slate tone generator gives editors a clean sync reference across multiple cameras. A five-position low-cut filter (40 to 220 Hz) tames handling noise and HVAC rumble, and two built-in omni mics cover a scratch track or an ambient safety channel with no cabling at all.
| Configuration | 4-channel field recorder and mixer for camera mount |
|---|---|
| Inputs | 4x XLR/TRS combo with 24V/48V phantom power |
| Preamps | Tascam HDDA, approx. -120 dBu equivalent input noise |
| Recording Format | WAV/BWF, 16/24-bit, 44.1/48/96 kHz |
| Built-In Mics | 2x omnidirectional |
| Low-Cut Filter | 5 settings: 40 / 80 / 120 / 180 / 220 Hz |
| Dimensions | 6.65 in x 2.2 in x 4.2 in |
| Weight | 1.37 lb with batteries |
