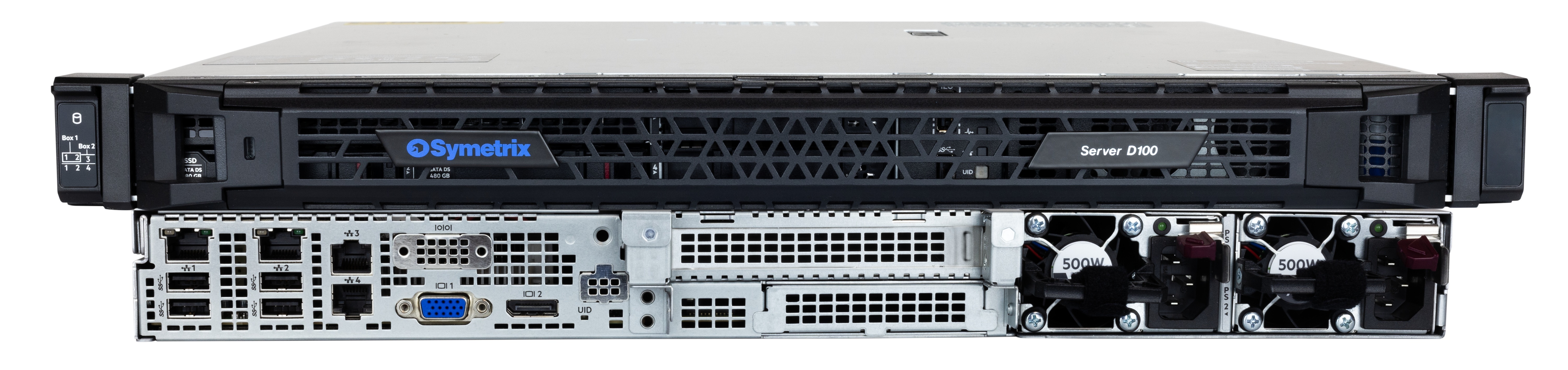

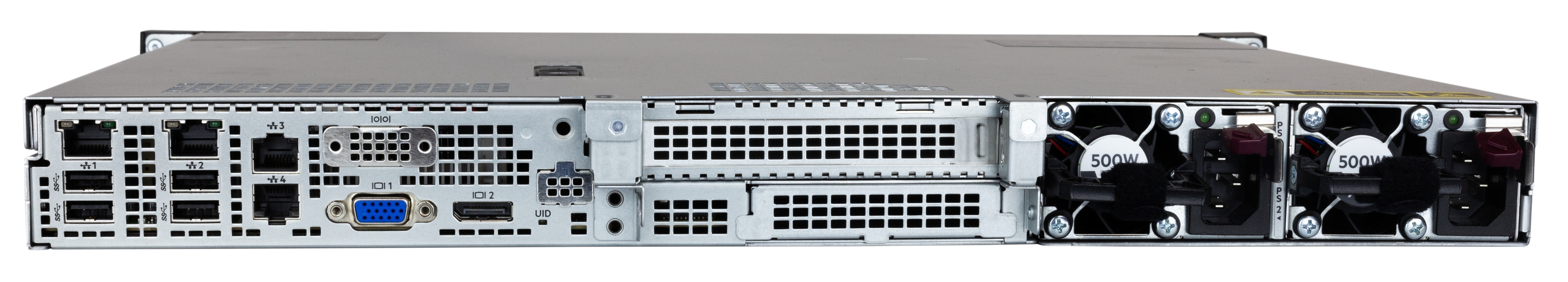

Symetrix D100 AVoIP DSP Server

D100 is the large end of the Symetrix range: a 1U server built on the HPE ProLiant DL20 Gen11 platform and loaded with Symetrix DSP, aimed at campuses, transport hubs, museums and performing arts venues where the channel count stops fitting in a fixed-architecture box. It ships with 256 x 256 Dante channels, 64 channels of acoustic echo cancellation at 256 ms tail length, 32 media playback channels and 8 record channels, with roughly four times the processing capacity of a Radius NX.

Because the capacity is software-defined, the same hardware grows with the site. Field upgrades take Dante to 384 x 384, AEC to 96 channels and playback to 128, applied through AV-Ops Center rather than a hardware swap. Two 500 GB SSDs carry the system and the stored media. Control is broad, covering SymVue for Windows, T-Series touchscreens, Control Server, W-Series remotes, ARC-WEB and TCP/UDP, with Lua scripting standard. Power is dual redundant and hot swappable, and HPE ILO gives IT its own management path.
