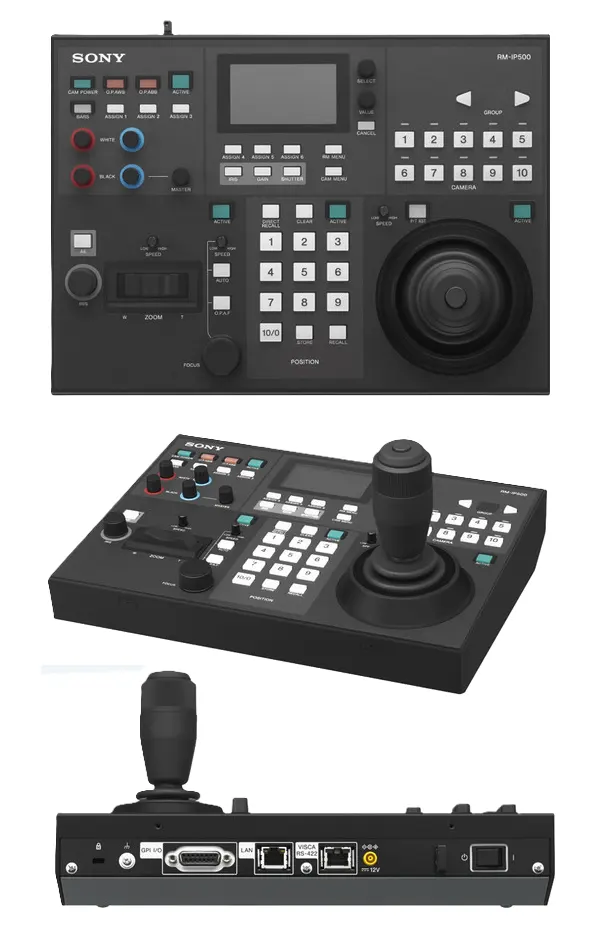

Sony RM-IP500 PTZ Camera Controller

Easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation
This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently needed camera functions.

The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications–from live events to conference halls, broadcast studios, education institutes and faith centers.

PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100*¹ combinations of camera angles and settings can be stored as presets. Trace Memory*¹ allows a sequence of camera moves to be stored and recalled whenever required.

Up to 100 compatible Sony BRC/SRG Series and ILME-FR7 PTZ remote cameras can be controlled over a standard IP network. Setup’s simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.

Full compatibility is provided with these Sony PTZ remote camera models: BRC-AM7, SRG-A40*5, SRG-A12*5, BRC-X400*3, ILME-FR7*4, ILME-FR7K*4, SRG-X40UH*5, SRG-X400*3, SRG-X120*3, SRG-XP1*5, SRG-XB25*5, BRC-X401*2,*3, SRG-201M2*2,*3, SRG-HD1M2*2,*3, BRC-X1000, BRC-H900, BRC-H800, BRC-H780*2, SRG-360SHE, SRG-280SHE*2, SRG-300SE, SRG-300H, SRG-301H*2, SRG-120DH, SRG-120DS, SRG-120DU, SRG-121DH*2, SRG-HD1*2.

The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.

The RM-IP500/1 is a U.S./Canada model which is bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.

*1 Depends on camera specification. Upgrade may be required.
*2 China models.
*3 Requires firmware V2.10 or later.
*4 Requires firmware V2.20 or later.
*5 Requires firmware V2.30 or later.

High-quality control of PTZ functions
It's easy to achieve professional looking productions, with joystick adjustment of pan and tilt, plus zoom control either via joystick or a separate seesaw lever. Adjustable speed control of PTZ allows smooth, acurate camera movements.

Store and recall camera presets
Up to 100** presets (camera angles and settings) can be stored recalled instantly via the numeric keypad, saving time in multiple camera set-ups.
** The maximum preset number depends on camera specification.

Speed Control
3 dials (PT, Zoom and Focus separately)

Control input/output
VISCA RS-422 OUT connector: RJ-45 x 1
LAN : RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected
GPI I/O (Tally In/Contact Out): D-Sub 15-pin (female)

Tally indicator
Includes Normal Tally/On-Air Tally/Contact Modes.
