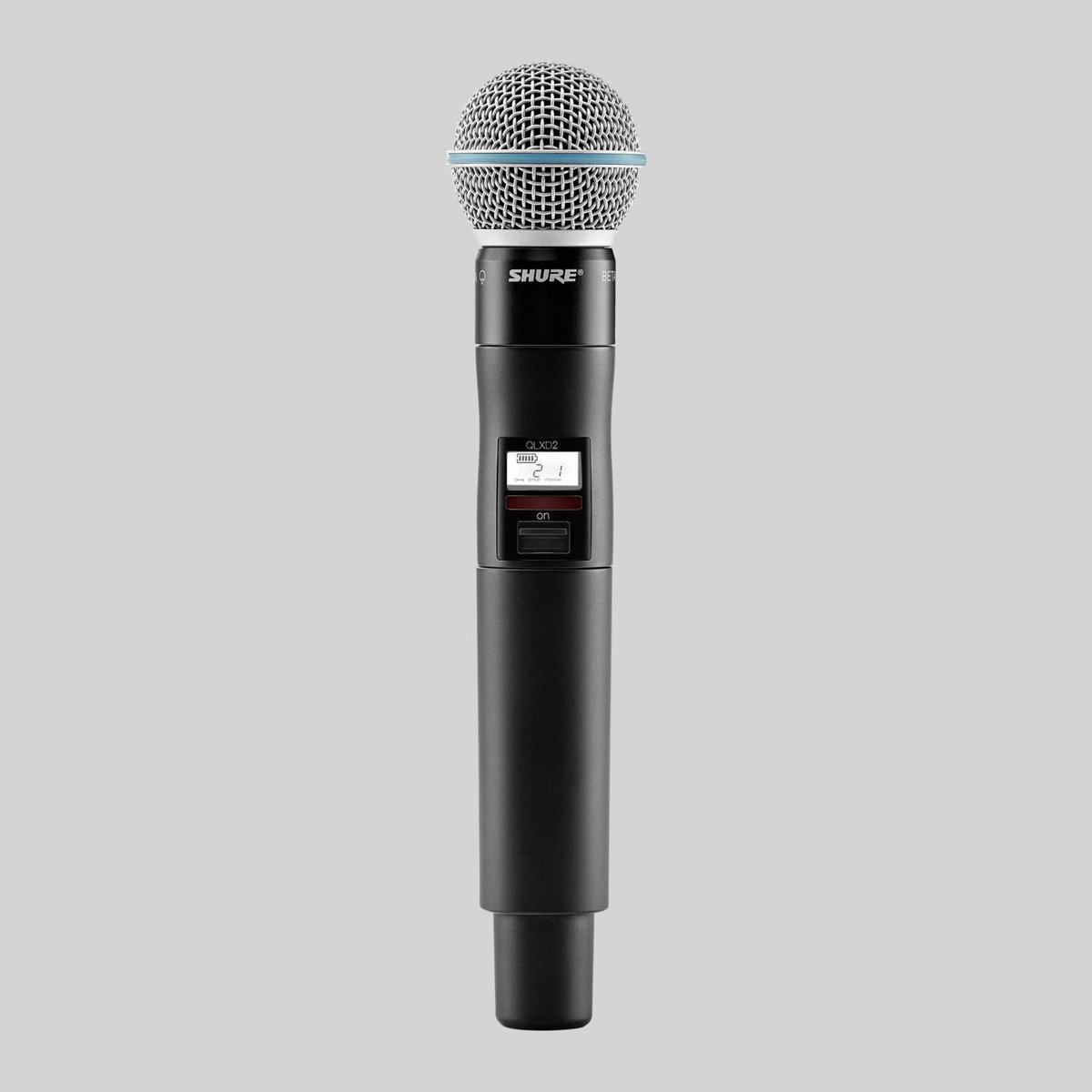

Shure QLXD2 B58 Handheld Transmitter

The QLXD2/B58 is the handheld transmitter for Shure's QLX-D digital wireless system, fitted with the Beta 58A supercardioid dynamic capsule that fronts countless live vocal rigs. The Beta 58A's supercardioid pattern rejects monitor and PA bleed to fight feedback on a loud stage, and its tailored, brightened response cuts a lead vocal through a dense mix. QLX-D carries that sound as transparent 24-bit / 48 kHz digital audio with AES-256 encryption, so the wireless link is both clean and secure.

Setup is push-button: the handheld syncs to its receiver over infrared in seconds, and 1 mW or 10 mW selectable RF output lets you trade range for channel count. Two AA alkalines give up to 9 hours of continuous use, or the optional SB900B lithium-ion pack reports remaining runtime in hours and minutes. The capsule is interchangeable with other Shure QLX-D handheld heads if your vocal needs change.

  • System - RF Tuning Step Size25 kHz, varies by region
  • QLXD2 - Dimensions269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia.
  • System - Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
  • Audio Input - ConfigurationUnbalanced
  • Audio Input - Maximum Input Level (1 kHz at 1% THD)145 dB SPL (SM58), typical (dependent on microphone type)
System - RF Carrier Frequency Range470 to 937.5 MHz, varies by region
System - Working Range100 m (328 ft)
System - RF Tuning Step Size25 kHz, varies by region
System - Image Rejection>70 dB, typical
System - RF Sensitivity-97 dBm at 10^-5 BER
System - Latency<2.9 ms
System - Audio Frequency Response (QLXD2)Dependent on microphone type
System - Audio Dynamic Range>120 dB, A-weighted, typical (System Gain @ +10)
System - Total Harmonic Distortion<0.1% (-12 dBFS input, System Gain @ +10)
System - System Audio PolarityPositive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of output) and the tip of the 6.35 mm (1/4-inch) output.
System - Operating Temperature Range-18°C (0°F) to 50°C (122°F)
System - Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
Battery Life (470 to 865 MHz, 1/10 mW)SB900C: >11 hours; alkaline: 8 hours
Battery Life (902 to 928 MHz, 1/10 mW)SB900C: >10 hours; alkaline: >6 hours
Battery Life (174 to 216 MHz, 1/10 mW)SB900C: >11 hours; alkaline: >8:30 hours
Battery Life (1240 to 1800 MHz, 1/10 mW)SB900C: >10 hours; alkaline: >6 hours
QLXD2 - Mic Offset Range0 to 21 dB (in 3 dB steps)
QLXD2 - Battery TypeShure SB900C Rechargeable Li-Ion or AA batteries 1.5 V
QLXD2 - Dimensions269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia.
QLXD2 - Weight307 g (12.1 oz.), without batteries
QLXD2 - HousingMachined aluminum
Audio Input - ConfigurationUnbalanced
Audio Input - Maximum Input Level (1 kHz at 1% THD)145 dB SPL (SM58), typical (dependent on microphone type)
RF Output - Antenna TypeIntegrated Single Band Helical
RF Output - Occupied Bandwidth<200 kHz
RF Output - Modulation TypeShure proprietary digital
RF Output - Power1 mW or 10 mW (varies by region)

Full specifications on the manufacturer’s site
