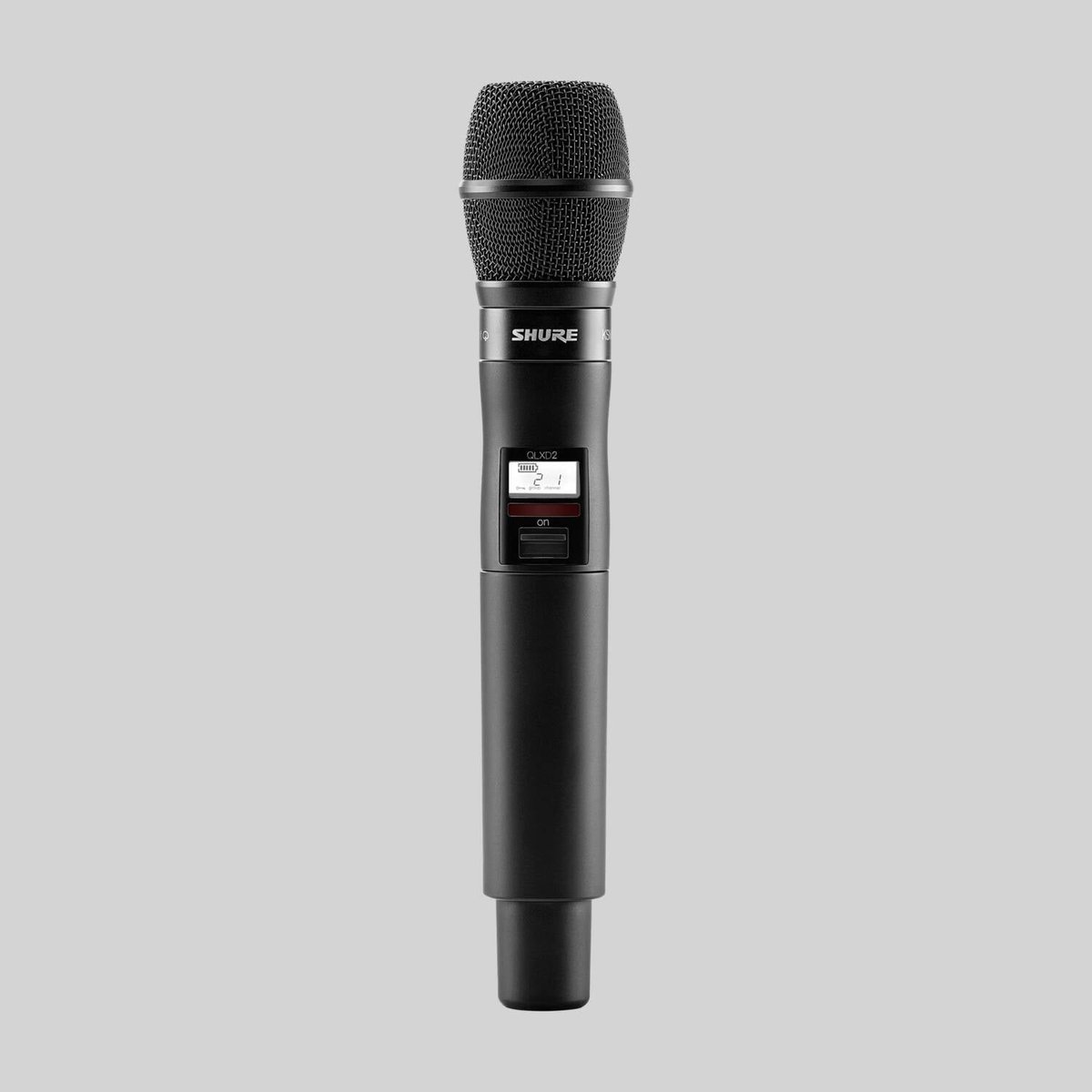

Shure QLXD2 KSM9 Digital Handheld Transmitter

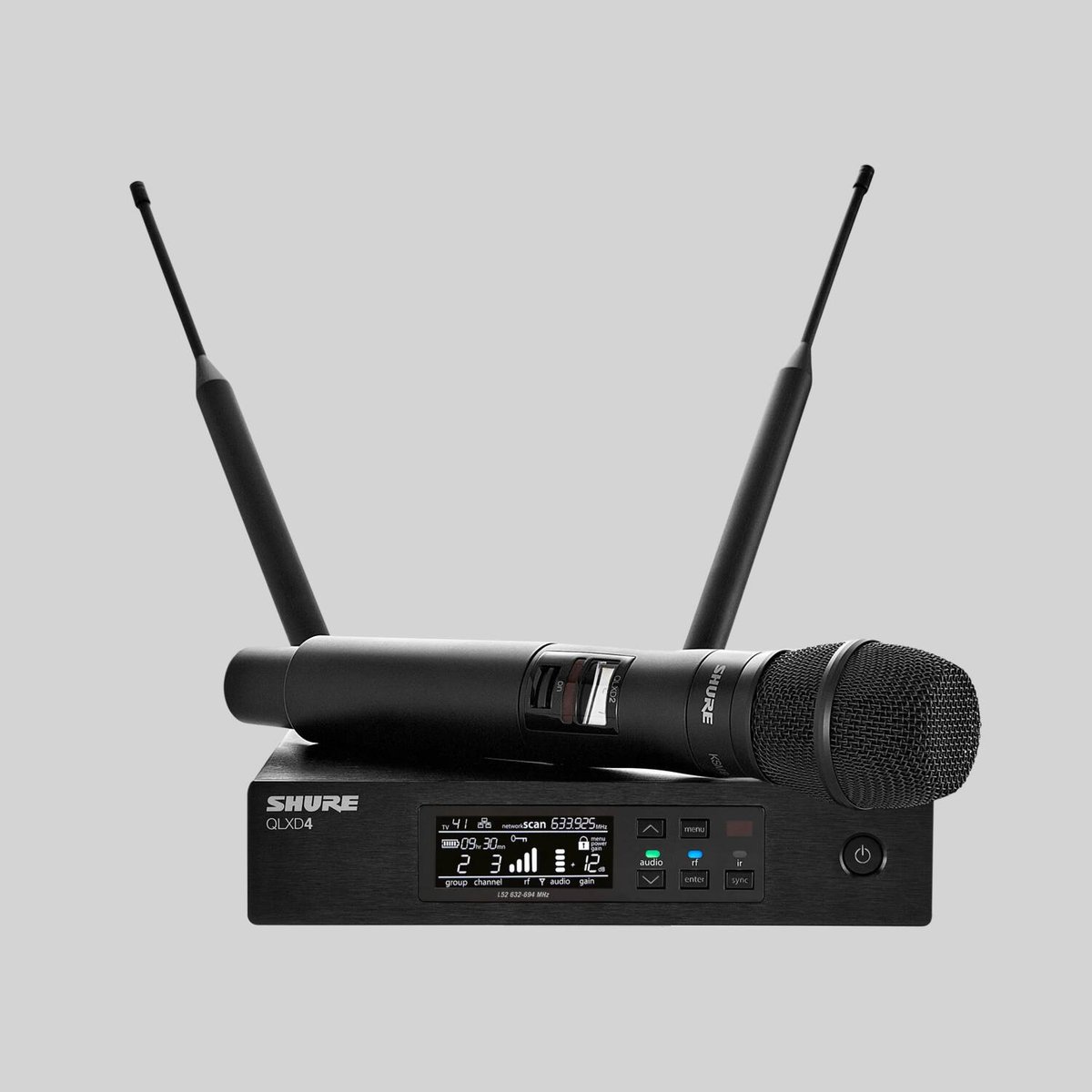

The QLXD2/KSM9 pairs Shure's QLX-D digital handheld transmitter with the KSM9 dual-pattern condenser capsule, a premium vocal head that switches between cardioid and supercardioid so a singer can dial in reach and rejection to match the stage. The transmitter sends transparent 24-bit audio with over 120 dB of dynamic range, so there is no gain to set, and one-touch IR sync grabs a clean frequency from a QLXD4 receiver in seconds and holds it across the 100 m (330 ft) working range.
The machined-aluminum body is built for nightly touring, with AES-256 encryption protecting the signal and a backlit display showing group, channel, frequency, or remaining runtime. It runs up to 9 hours on two AA batteries, or up to 10 hours on the optional Shure SB900A rechargeable battery, and its threaded capsule mount accepts other Shure heads such as SM58, Beta 58A, and Beta 87A if the voice calls for a different character.
- System - RF Tuning Step Size25 kHz, varies by region
- QLXD2 - Dimensions269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia.
- System - Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
- Audio Input - ConfigurationUnbalanced
- Audio Input - Maximum Input Level (1 kHz at 1% THD)145 dB SPL (SM58), typical (dependent on microphone type)
| System - RF Carrier Frequency Range | 470 to 937.5 MHz, varies by region |
|---|---|
| System - Working Range | 100 m (328 ft) |
| System - RF Tuning Step Size | 25 kHz, varies by region |
| System - Image Rejection | >70 dB, typical |
| System - RF Sensitivity | -97 dBm at 10^-5 BER |
| System - Latency | <2.9 ms |
| System - Audio Frequency Response (QLXD2) | Dependent on microphone type |
| System - Audio Dynamic Range | >120 dB, A-weighted, typical (System Gain @ +10) |
| System - Total Harmonic Distortion | <0.1% (-12 dBFS input, System Gain @ +10) |
| System - System Audio Polarity | Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of output) and the tip of the 6.35 mm (1/4-inch) output. |
| System - Operating Temperature Range | -18°C (0°F) to 50°C (122°F) |
| System - Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Battery Life (470 to 865 MHz, 1/10 mW) | SB900C: >11 hours; alkaline: 8 hours |
| Battery Life (902 to 928 MHz, 1/10 mW) | SB900C: >10 hours; alkaline: >6 hours |
| Battery Life (174 to 216 MHz, 1/10 mW) | SB900C: >11 hours; alkaline: >8:30 hours |
| Battery Life (1240 to 1800 MHz, 1/10 mW) | SB900C: >10 hours; alkaline: >6 hours |
| QLXD2 - Mic Offset Range | 0 to 21 dB (in 3 dB steps) |
| QLXD2 - Battery Type | Shure SB900C Rechargeable Li-Ion or AA batteries 1.5 V |
| QLXD2 - Dimensions | 269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia. |
| QLXD2 - Weight | 307 g (12.1 oz.), without batteries |
| QLXD2 - Housing | Machined aluminum |
| Audio Input - Configuration | Unbalanced |
| Audio Input - Maximum Input Level (1 kHz at 1% THD) | 145 dB SPL (SM58), typical (dependent on microphone type) |
| RF Output - Antenna Type | Integrated Single Band Helical |
| RF Output - Occupied Bandwidth | <200 kHz |
| RF Output - Modulation Type | Shure proprietary digital |
| RF Output - Power | 1 mW or 10 mW (varies by region) |
