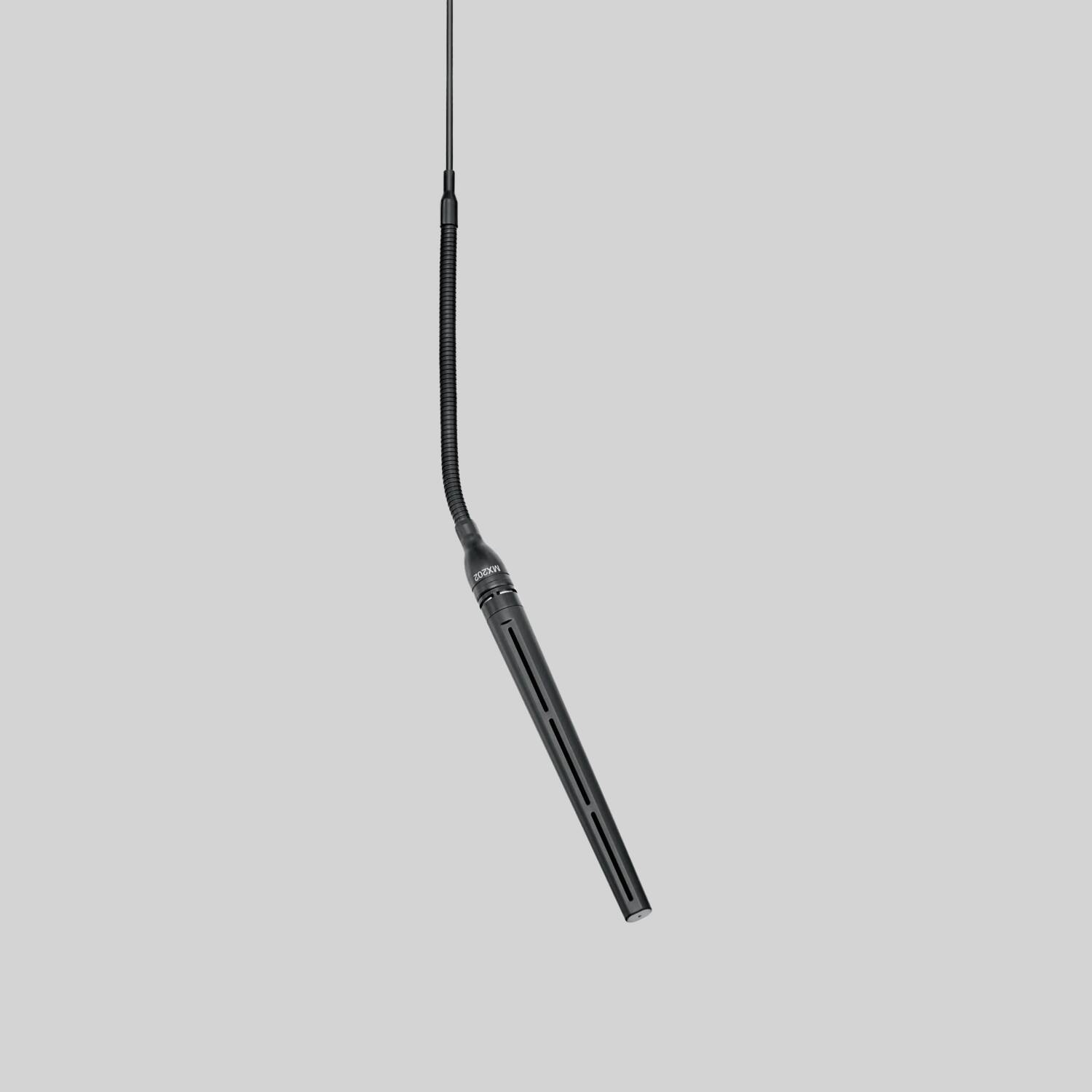

Shure MX202B MS Overhead Condenser Microphone
The MX202B/MS is a Microflex overhead condenser designed to hang above a stage, choir, or drama set and pull sound down from a distance. This version carries the lobar mini-shotgun cartridge, whose narrow pickup reaches further out and rejects more off-axis noise than a standard cardioid, making it the choice for suspended miking where the source is well below the mic. The black finish keeps it discreet against a dark ceiling or grid.
A slim four-inch gooseneck at the capsule lets you aim the pickup precisely, and a 30-foot attached cable runs to an in-line preamplifier that terminates in a standard 3-pin XLR for the console or snake. The Microflex interchangeable-cartridge design means the same preamp and hanging hardware can later take a cardioid, supercardioid, or omnidirectional element if the room changes. It ships with a stand-mount adapter for fixed installs.
- Environmental Conditions: Storage Temperature-29 to 74°C (-20 to 165°F)
- Output Impedance180 Ω
- Output ConfigurationActive Balanced
- Frequency Response50 to 17000 Hz
- Polar PatternMini-shotgun
| Type | Electret |
|---|---|
| Frequency Response | 50 to 17000 Hz |
| Polar Pattern | Mini-shotgun |
| Output Impedance | 180 Ω |
| Output Configuration | Active Balanced |
| Sensitivity (@ 1 kHz, open circuit voltage) | -33 dBV/Pa (22 mV) (1 Pa=94 dB SPL) |
| Maximum SPL (1 kHz at 1% THD, 1 kΩ load) | 121 dB |
| Self Noise (A-weighted) | 26 dB SPL |
| Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz) | 68 dB |
| Dynamic Range (1 kΩ load, @ 1 kHz) | 96 dB |
| Common Mode Rejection (10 Hz to 100 kHz) | 45 dB, minimum |
| Clipping Level (at 1% THD) | -6 dBV (0.5 V) |
| Polarity (3-pin XLR) | Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector |
| Environmental Conditions: Operating Temperature | -18 to 57°C (0 to 135°F) |
| Environmental Conditions: Storage Temperature | -29 to 74°C (-20 to 165°F) |
| Environmental Conditions: Relative Humidity | 0 to 95% |
| Power Requirements () | 11 to 52 V DC, 2.0 mA |
