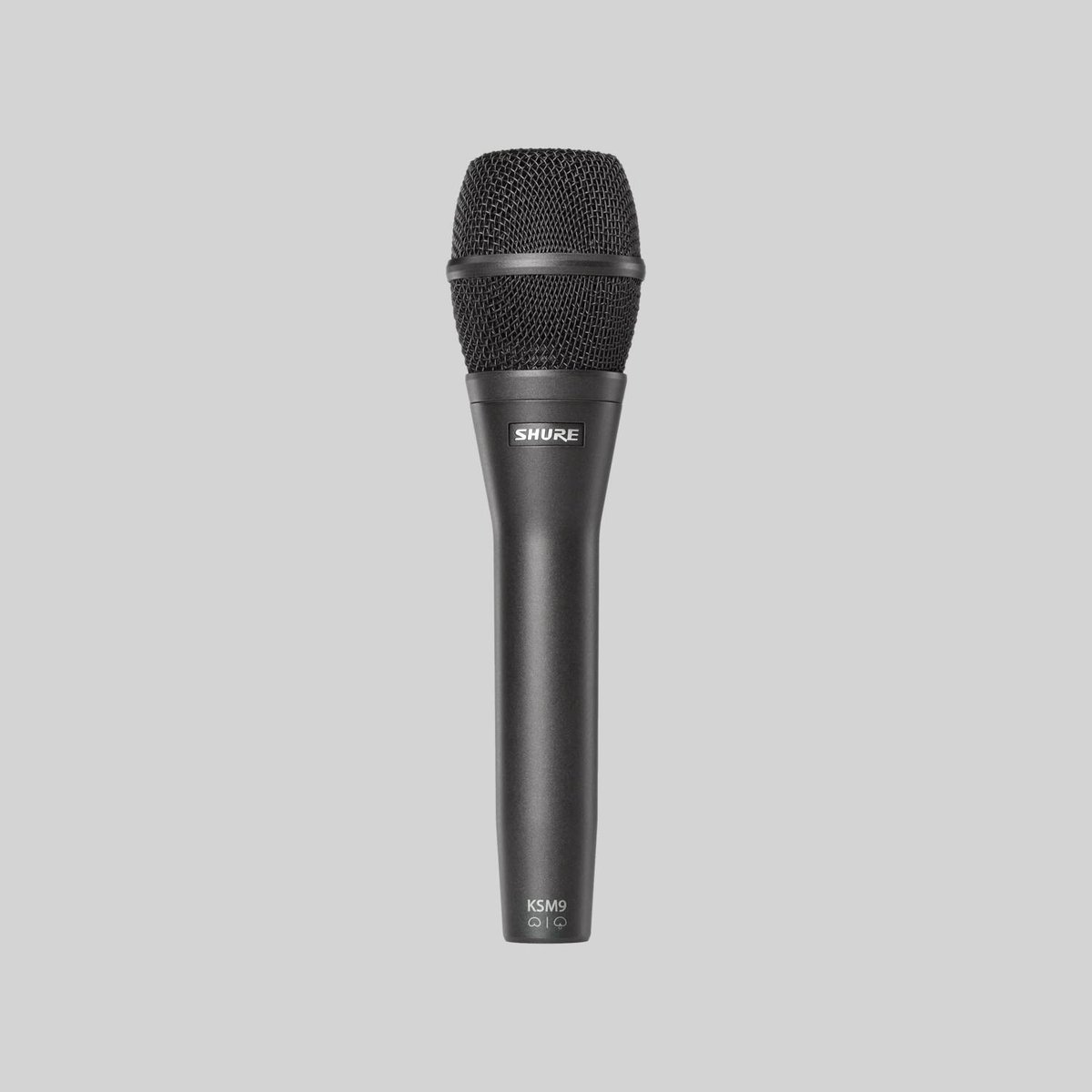

Shure KSM9/CG Handheld Vocal Microphone (Charcoal Gray)

The KSM9/CG is Shure's handheld condenser vocal microphone in a charcoal gray finish, built for lead singers who want studio detail on a live stage. Its dual gold-layered, low-mass Mylar diaphragm design gives an even, consistent response across the range, with more gain before feedback and less proximity effect than most stage vocal mics, so a voice stays natural whether the singer works close or backs off.

A switch selects between cardioid and supercardioid patterns, letting the mic match the monitor setup and stage layout, tighter rejection when bleed is a problem or a broader pickup when it is not. It responds from 50 to 20,000 Hz, handles up to 152 dB SPL, and runs on 11-52V phantom power. The charcoal gray finish keeps it low-profile under stage lighting.

  • Output Impedance150 Ω
  • ConnectorThree-pin professional audio (XLR), male, balanced
  • Polar PatternCardioid, Supercardioid (selectable)
  • Frequency Response50 to 20,000 Hz
  • Sensitivity (open circuit voltage, @ 1 kHz, typical)-51 dBV/Pa (2.8 mV)
TypeElectret
Polar Pattern, Supercardioid (selectable)
Frequency Response50 to 20,000 Hz
Output Impedance150 Ω
Sensitivity (open circuit voltage, @ 1 kHz, typical)-51 dBV/Pa (2.8 mV)
Maximum SPL (1 kHz at 1% THD)2500 Ω load: 152 dB SPL; 1000 Ω load: 152 dB SPL
Signal-to-Noise Ratio72 dB
Dynamic Range (@ 1 kHz)2500 Ω load: 130 dB; 1000 Ω load: 130 dB
Clipping Level (20 Hz to 20 kHz, 1% THD)2500 Ω load: 6.7 dBV; 1000 Ω load: 6 dBV
Self Noise (equivalent SPL, A-weighted, typical)22 dB SPL-A
Common Mode Rejection (10 to 100,000 Hz)≥60 dB
ConnectorThree-pin professional audio (), male, balanced
PolarityPositive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements11 to 52 V DC (IEC-61938) 5.2 mA, maximum
Weight300 g (10.6 oz.)

Full specifications on the manufacturer’s site

Shure KSM9 vs Shure KSM11 - A Vocalist's Comparison

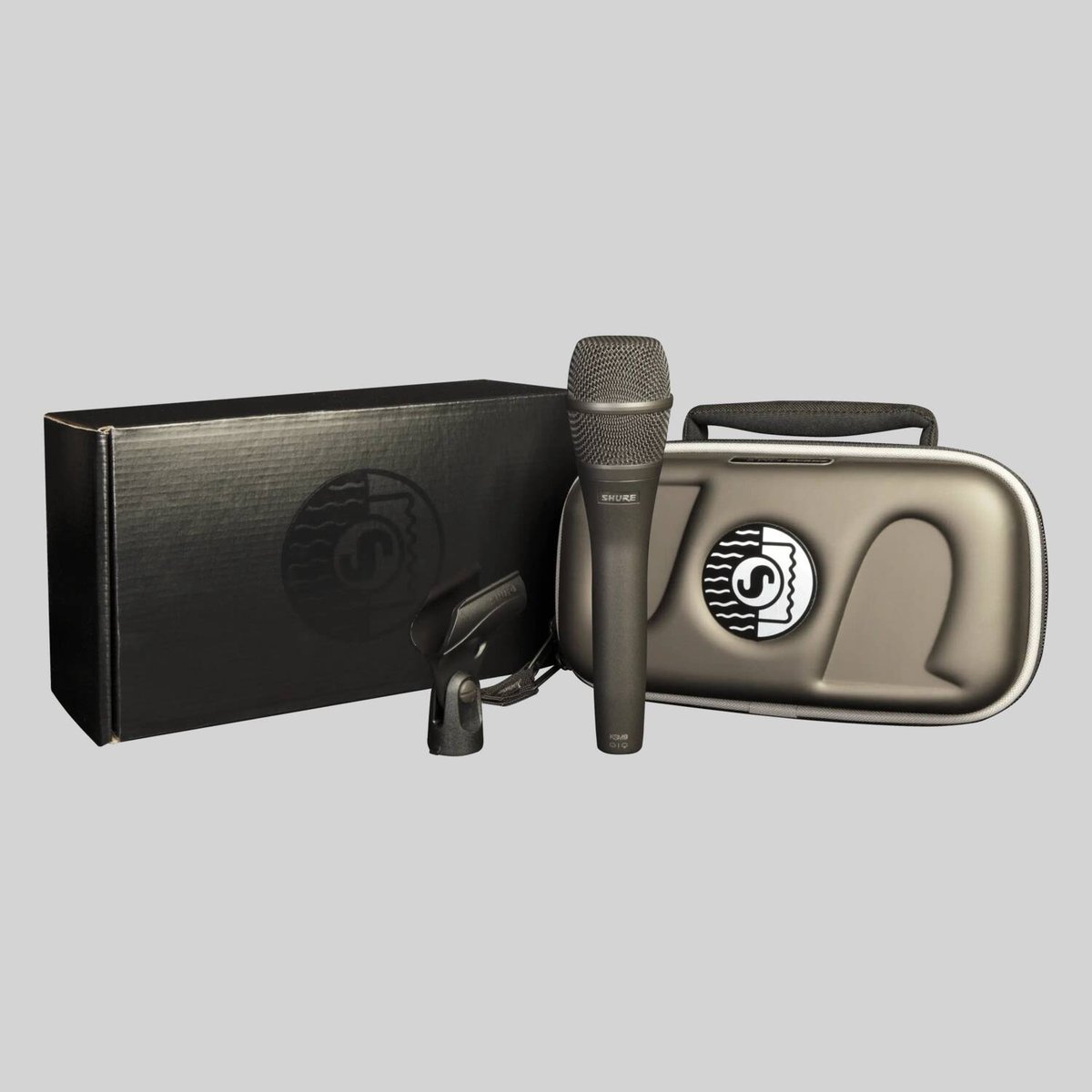

3items in the box
  • Zipped Carrying Case for KSM9 (AK9C)
  • Stand Adapter (A25E)
  • 5/8" to 3/8" Thread Adapter (95A2050)
