Shure KSM313Dual-Voice Ribbon Microphone

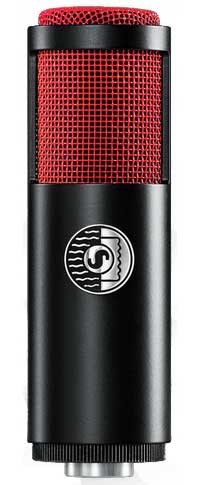

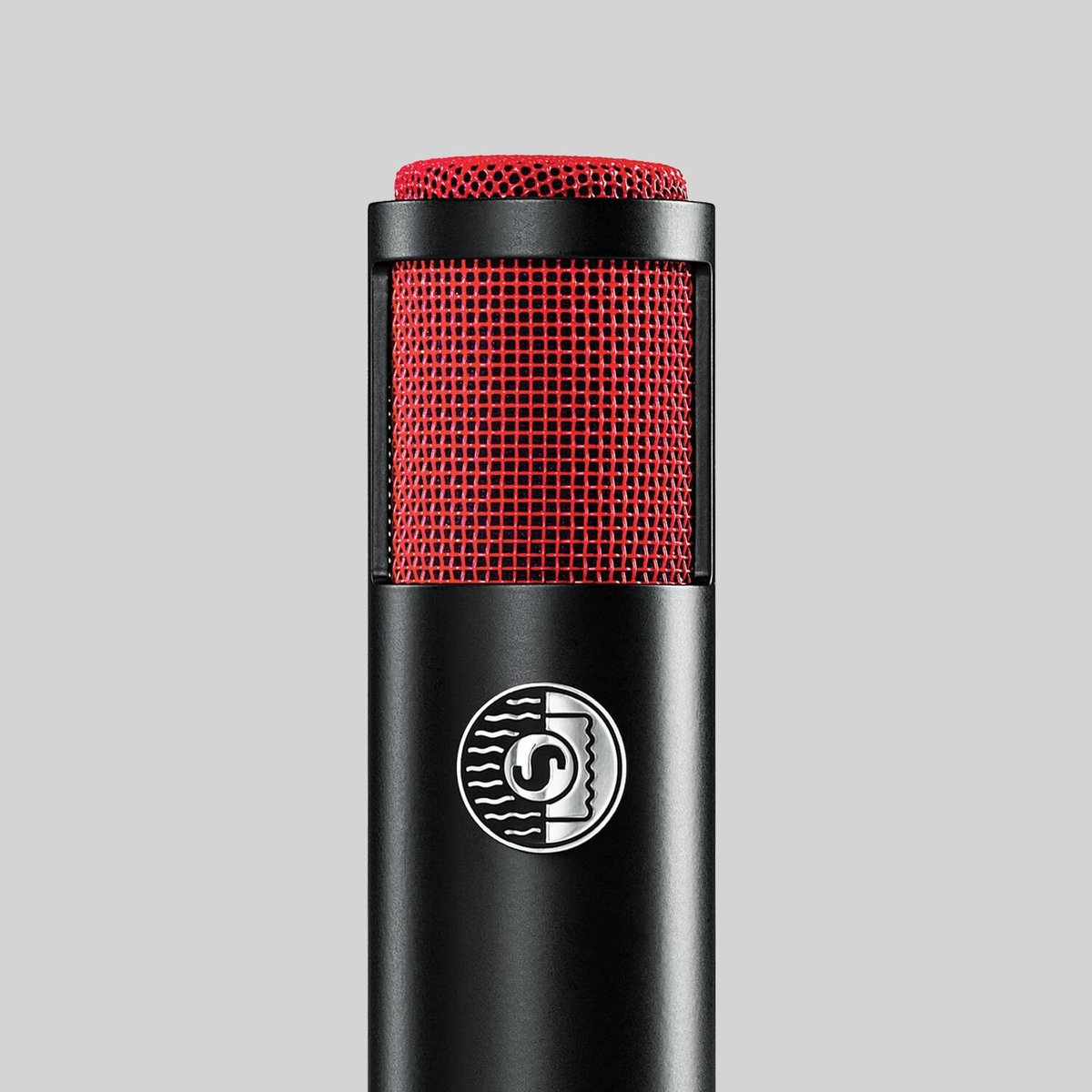

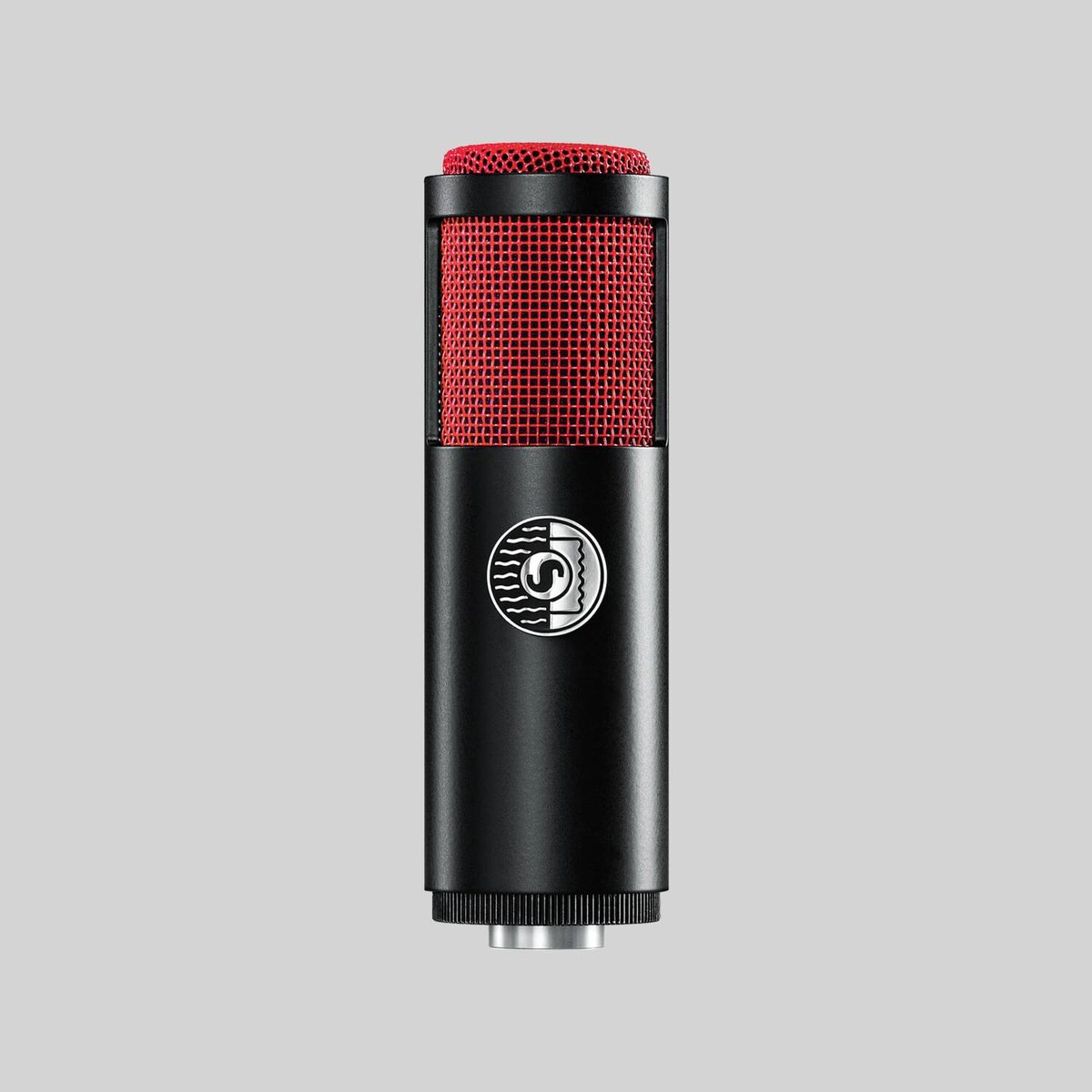

The KSM313/NE is Shure's dual-voice ribbon microphone, a bidirectional (figure-8) mic that captures the warm, natural detail ribbons are prized for while shrugging off the fragility that usually comes with them. Its ribbon is Roswellite, a proprietary material with the tensile strength and shape memory to survive the extreme SPLs of a cranked guitar cabinet or a close-miked brass section, so it holds up where a traditional foil ribbon would stretch or tear.

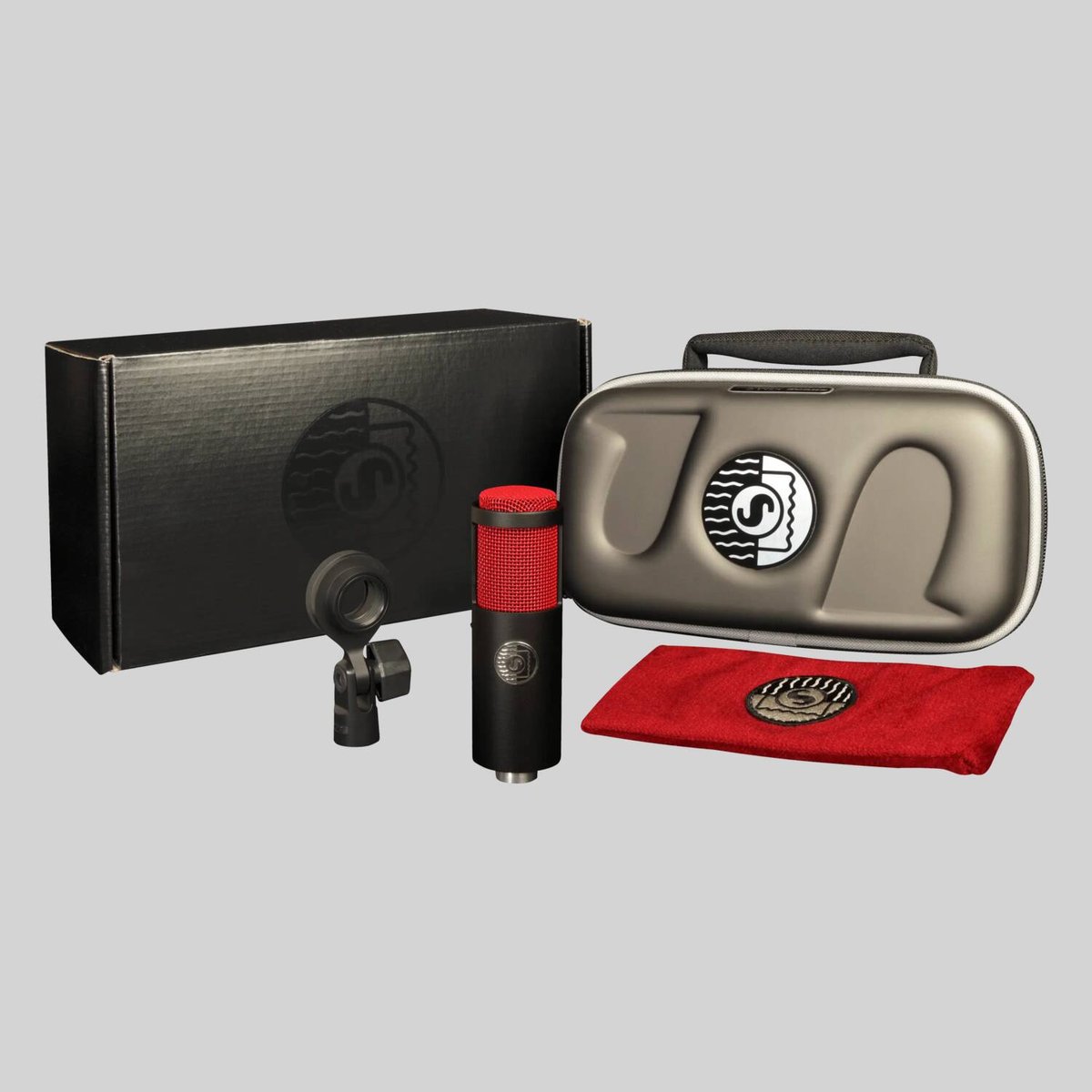

Dual-voice means the front and rear of the figure-8 pattern are voiced differently: one side is tuned for the aggression of amplified instruments, the other for intimate, smooth vocal work, so a single mic covers two very different jobs by simply turning it around. It responds from 30 to 15,000 Hz and handles up to 146 dB SPL. The mic ships with an A300M ShureLock stand mount and an AK313C zippered carrying case.
| Type | Dual-voice ribbon (Roswellite ribbon) |
|---|---|
| Polar Pattern | Bidirectional (figure-8) |
| Frequency Response | 30-15,000 Hz |
| Sensitivity | -54.5 dBV/Pa (1.88 mV/Pa) at 1 kHz |
| Maximum SPL | 146 dB |
| Voicing | Discrete front and rear sonic signatures |
| Included | A300M ShureLock stand mount, AK313C zippered carrying case |
