Shure BLX14 Guitar/Bass System
The BLX14 cuts the cable between a guitar or bass and its amp without giving up dependable sound. It pairs the compact BLX4 single-channel receiver with a BLX1 bodypack transmitter and the WA302 instrument cable, so a player plugs in, clips on, and moves freely across the stage. The analog UHF link keeps the tone the instrument was voiced for, and one-touch QuickScan finds a clean frequency at soundcheck instead of leaving you hunting through menus.

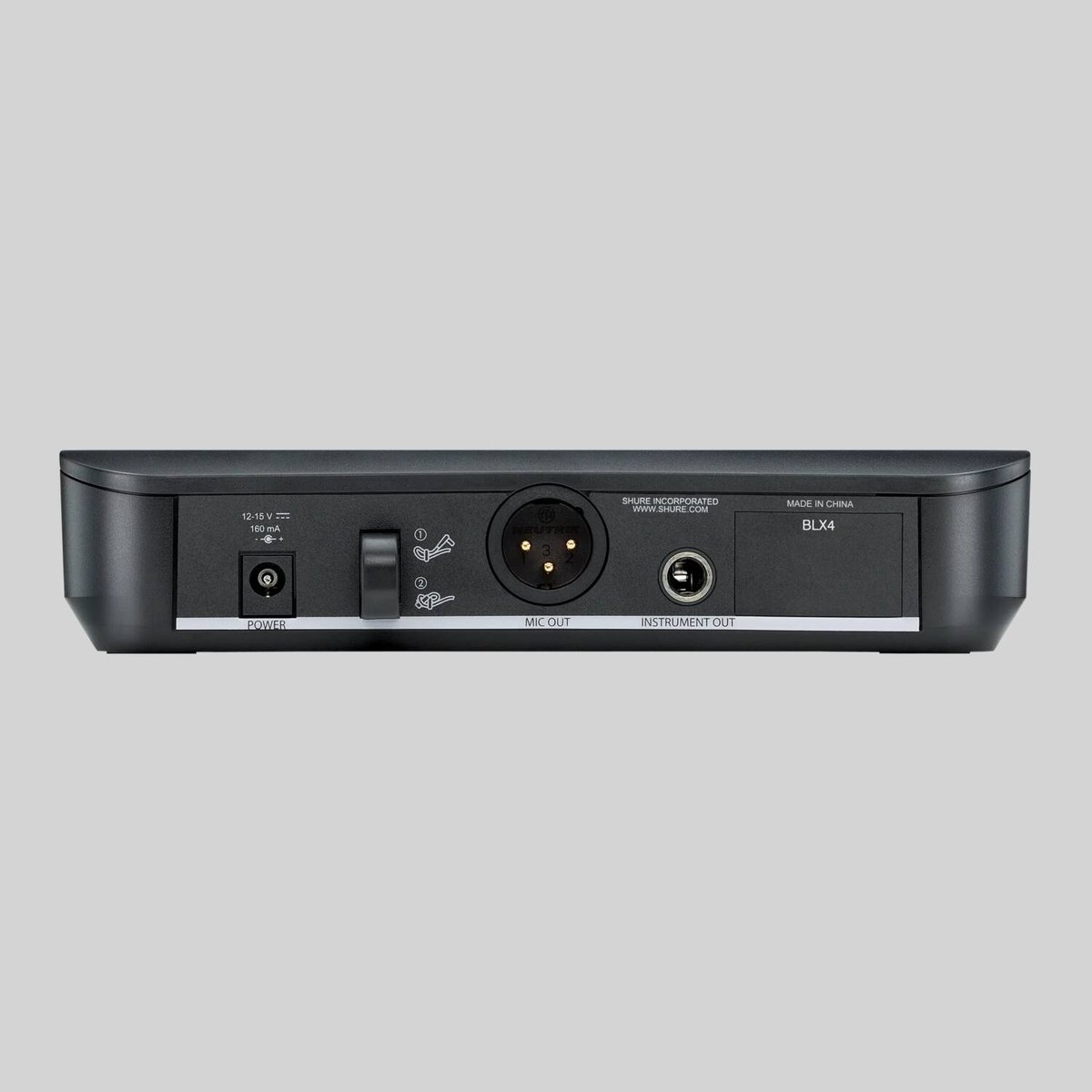

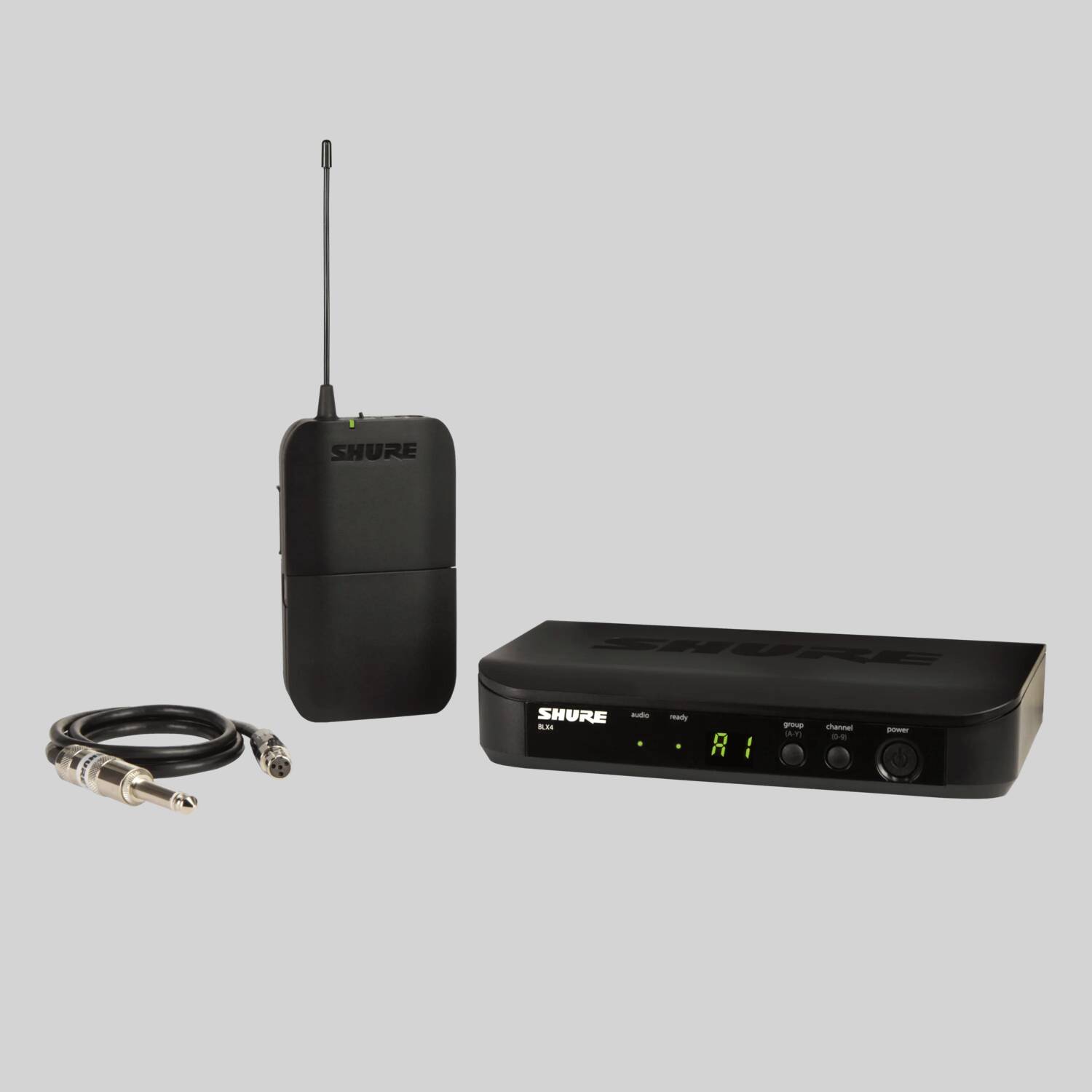

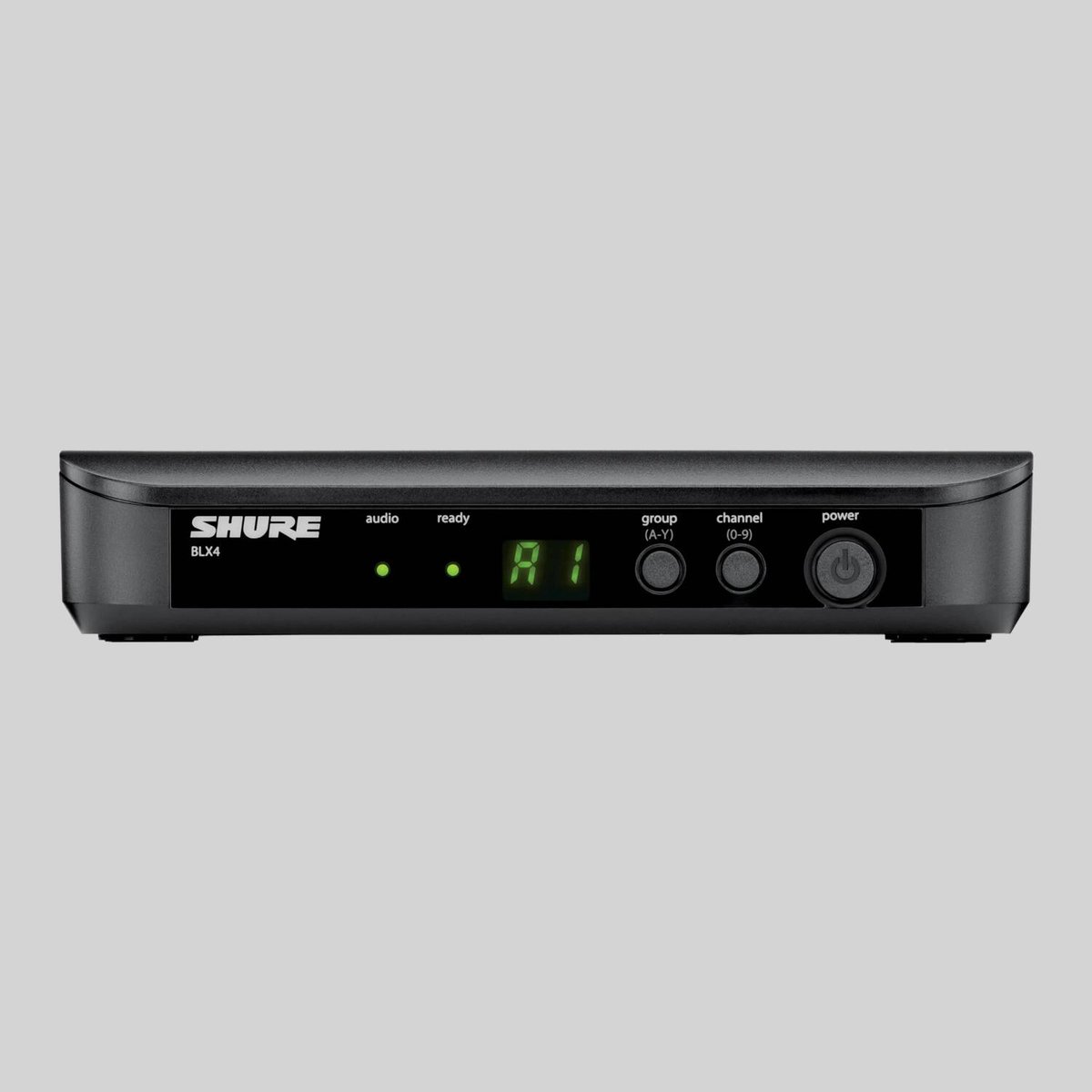

The BLX4 receiver offers both a balanced XLR output at -27 dBV and an unbalanced 1/4-inch output at -13 dBV, so it drops into a pedalboard, amp input, or house console with equal ease. The BLX1 bodypack runs about 14 hours on two AA batteries at a working range up to 300 feet, and up to 12 compatible systems can share a band for multi-player rigs. The system ships with the BLX4 receiver, BLX1 bodypack, WA302 guitar cable, PS24 power supply, and two AA batteries.
- BLX4 - Dimensions1.57 in. X 7.40 in. X 4.06in. H x W x D
- BLX1 - Dimensions4.33 in. X 2.52 in. X 0.83 in. H x W x D
- BLX4 - Output ImpedanceXLR connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω
- BLX4 - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone)XLR connector: -27 dBV (into 100 kΩ load)
- BLX1 - Audio Input Levelmax: -16 dBV maximum; min (0 dB): +10 dBV maximum
| System - Working Range | 91 m (300 ft) Line of Sight |
|---|---|
| System - Audio Frequency Response | 50 to 15,000 Hz (dependent on microphone type) |
| System - Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone) | 0.5%, typical |
| System - Dynamic Range | 100 dB, A-weighted, typical |
| System - Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| System - Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
| BLX4 - Output Impedance | connector: 200 Ω; 6.35 mm (1/4") connector: 50 Ω |
| BLX4 - Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone) | XLR connector: -27 dBV (into 100 kΩ load); 6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load) |
| BLX4 - RF Sensitivity | -105 dBm for 12 dB SINAD, typical |
| BLX4 - Image Rejection | >50 dB, typical |
| BLX4 - Dimensions | 1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D |
| BLX4 - Weight | 8.5 oz. (241 g) |
| BLX4 - Housing | Molded ABS |
| BLX4 - Power Requirements | 12 to 15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) |
| BLX1 - Audio Input Level | max: -16 dBV maximum; min (0 dB): +10 dBV maximum |
| BLX1 - Gain Adjustment Range | 26 dB |
| BLX1 - Input Impedance | 1 MΩ |
| BLX1 - RF Transmitter Output | 10 mW, typical (varies by region) |
| BLX1 - Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D |
| BLX1 - Weight | 2.6 oz. (75 g), without batteries |
| BLX1 - Housing | Molded ABS |
| BLX1 - Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline |
| BLX1 - Battery Life | up to 14 hours (alkaline) |

- Instrument cable (WA302)
- Power Supply (PS24)
