Magewell Pro Capture Dual HDMI Two-Channel PCIe Capture Card (11080)

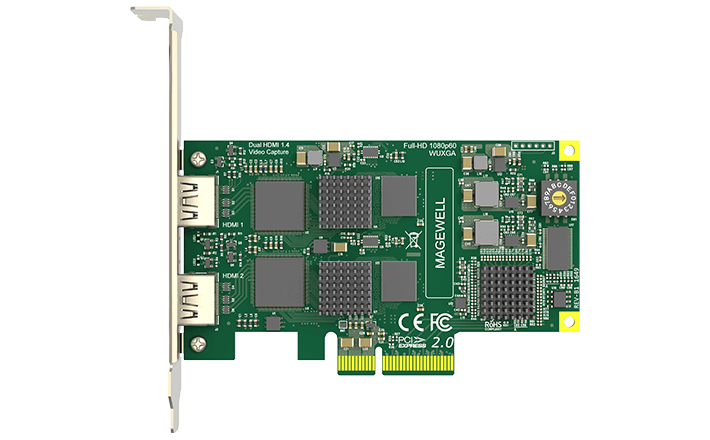

Pro Capture Dual HDMI puts two full capture channels on a single PCIe Gen2 x4 card, which matters when the machine has one usable slot and the show needs two sources - a camera and a presenter laptop, or a program feed and a confidence feed. Each channel captures up to 2048 x 2160 with its own embedded audio, and the two run independently rather than sharing a switched input.

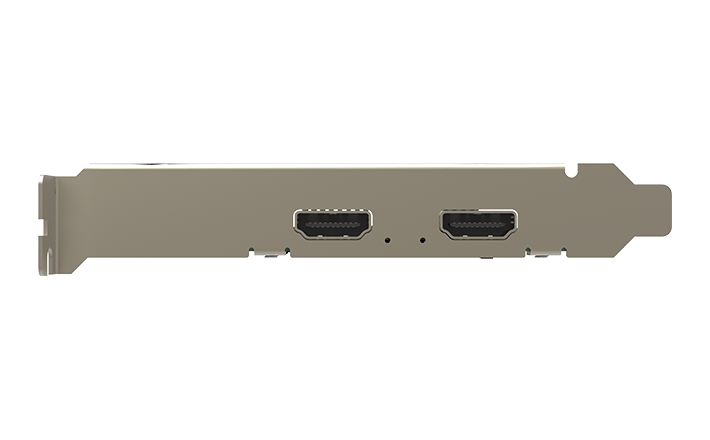

The card presents itself to the host as standard video devices, so Windows, Linux, and macOS applications open it without a vendor-specific plugin. Hardware scaling, color-space conversion, and de-interlacing happen on the card, leaving CPU headroom for the encoder in a streaming or recording workstation. A low-profile bracket (ACC01091) is in the box for short-depth and 1U chassis.
