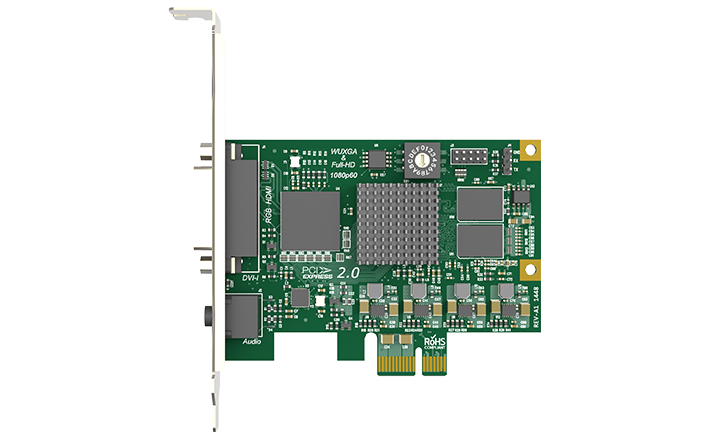

Magewell Pro Capture DVI One-Channel PCIe Capture Card (11030)

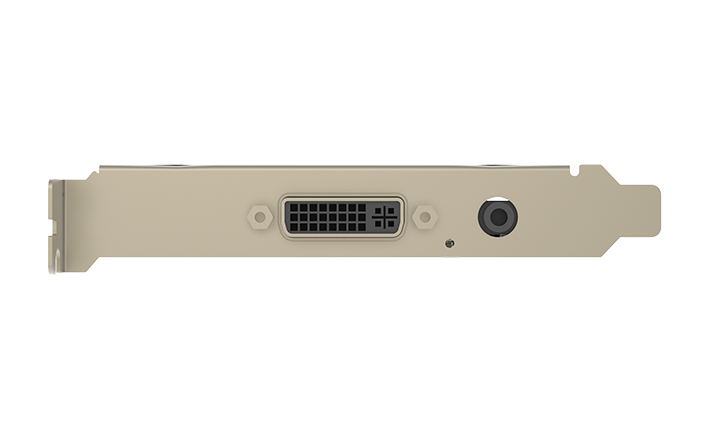

Pro Capture DVI is the card for computer sources. Its DVI-I connector and the adapters in the box cover DVI with audio, VGA with audio, component with audio, and HDMI with either embedded or analog audio, so a podium PC, a medical imaging workstation, or a simulator output can be captured without hunting for a converter that preserves the exact timing.

A 3.5 mm jack takes analog audio when the source does not embed it, which is the usual case with VGA and DVI. Capture runs up to 2048 x 2160 on a PCIe Gen2 x1 slot, with scaling, color-space conversion, and de-interlacing handled on the card. Windows, Linux, and macOS see a standard video device. The DVI-to-VGA connector, the DVI-I-to-HDMI and component breakout, and a low-profile bracket ship with the card.
