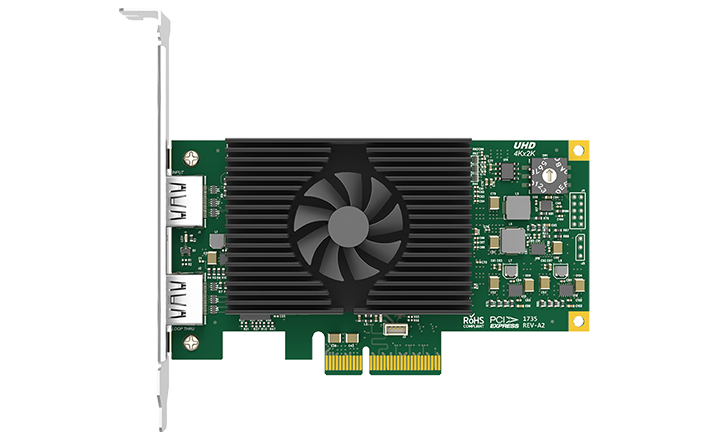

Magewell Pro Capture HDMI 4K Plus LT PCIe Capture Card (11152)

Pro Capture HDMI 4K Plus LT captures one HDMI channel at up to 4096 x 2160 with embedded audio over a PCIe Gen2 x4 interface. It is the LT board revision of Magewell's 4K single-channel card, aimed at builds where slot space and chassis depth are constrained but full DCI 4K capture is still required.

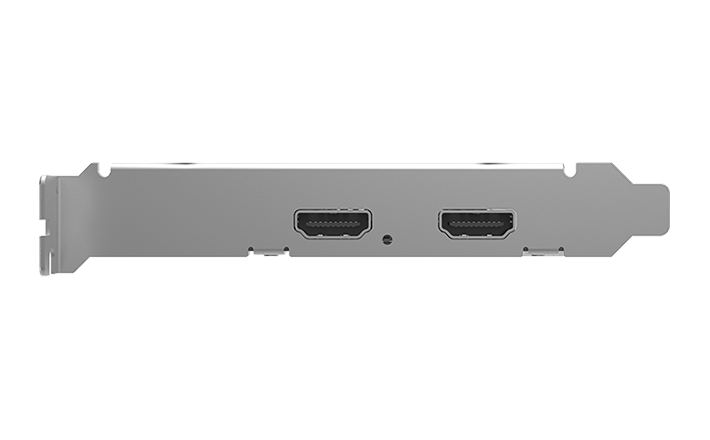

As with the rest of the Pro Capture line, scaling, color-space conversion, and de-interlacing happen on the card, so a 4K source can be delivered to the encoder already sized for the stream without spending host CPU on the conversion. The card presents standard video devices to Windows, Linux, and macOS. A low-profile bracket is included, and Magewell's Mini Repeater 4K HDMI is available separately for long or marginal input cable runs.
