Magewell Pro Capture Dual SDI Two-Channel PCIe Capture Card (11060)

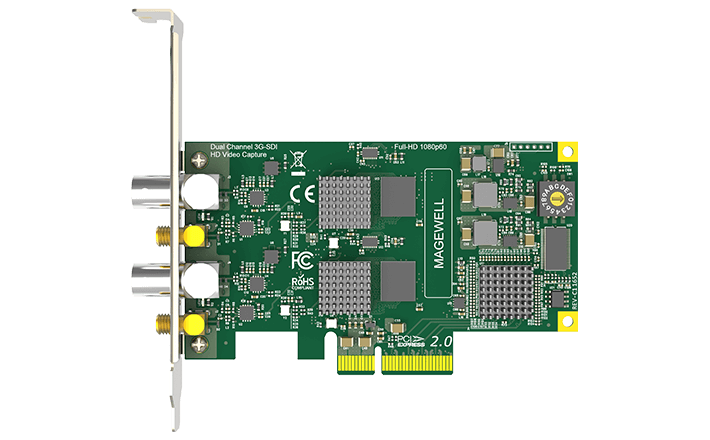

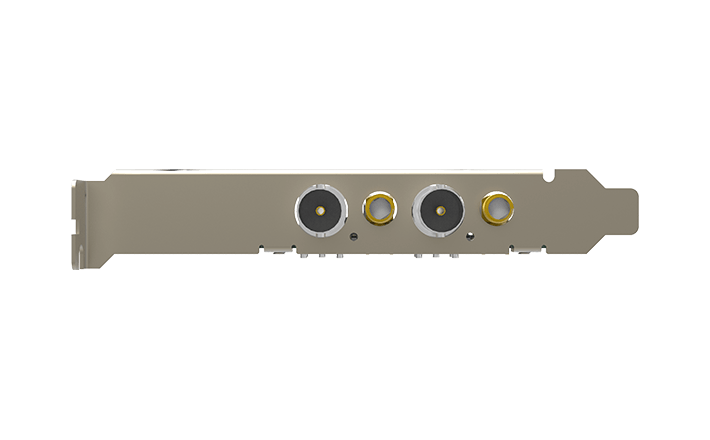

Pro Capture Dual SDI carries two independent BNC capture channels on a single PCIe Gen2 x4 board. Both accept SD, HD, 3G, and 2K SDI up to 2048 x 1080 with embedded audio, so a two-camera studio or an ISO record of program plus a clean feed runs on one machine and one slot.

The channels are genuinely independent, not a switched pair, which is what makes it usable for simultaneous ISO recording rather than only for source selection. Hardware scaling, color-space conversion, and de-interlacing run on the card. Windows, Linux, and macOS see standard video devices, so the streaming or recording application in use does not need a Magewell-specific driver path.
