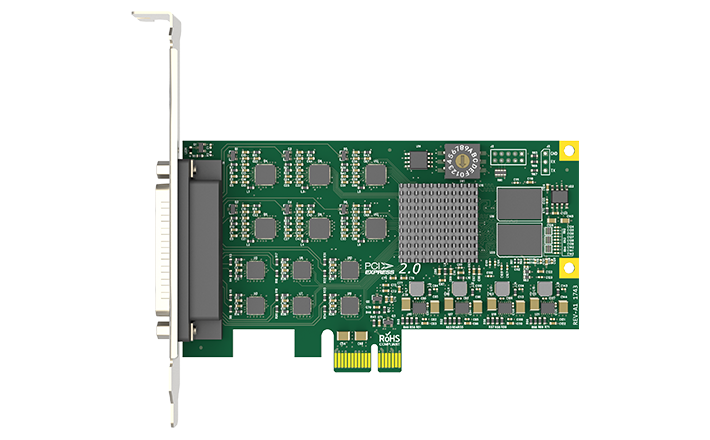

Magewell Pro Capture Hexa CVBS Six-Channel PCIe Capture Card (11250)

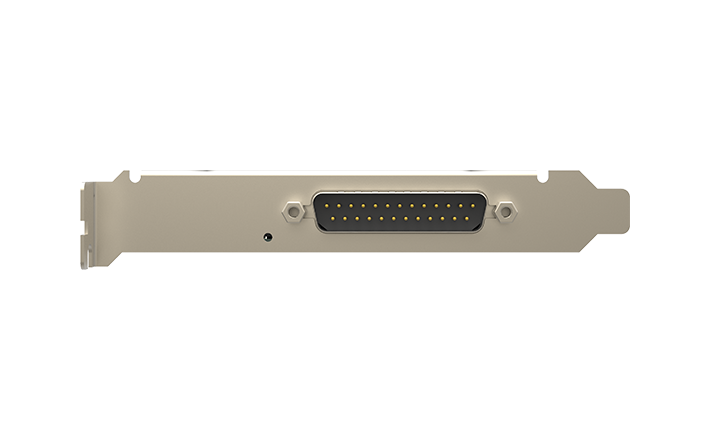

Pro Capture Hexa CVBS handles the analog cameras that are still doing useful work. Six composite channels arrive on one DB25 connector and break out through the supplied cable to six A/V connections, all on a single PCIe Gen2 x1 slot - which is why it fits jobs like surveillance consolidation, industrial and process monitoring, telemedicine carts, and archive transfer where the source count is high and the resolution is not.

Input format is detected automatically, and capture runs up to 720 x 576, covering both PAL and NTSC standard definition. On-card scaling, color-space conversion, and de-interlacing mean six simultaneous analog channels do not become a CPU problem. The card presents standard video devices on Windows, Linux, and macOS. The DB25 to six A/V cable and a low-profile bracket are in the box.
