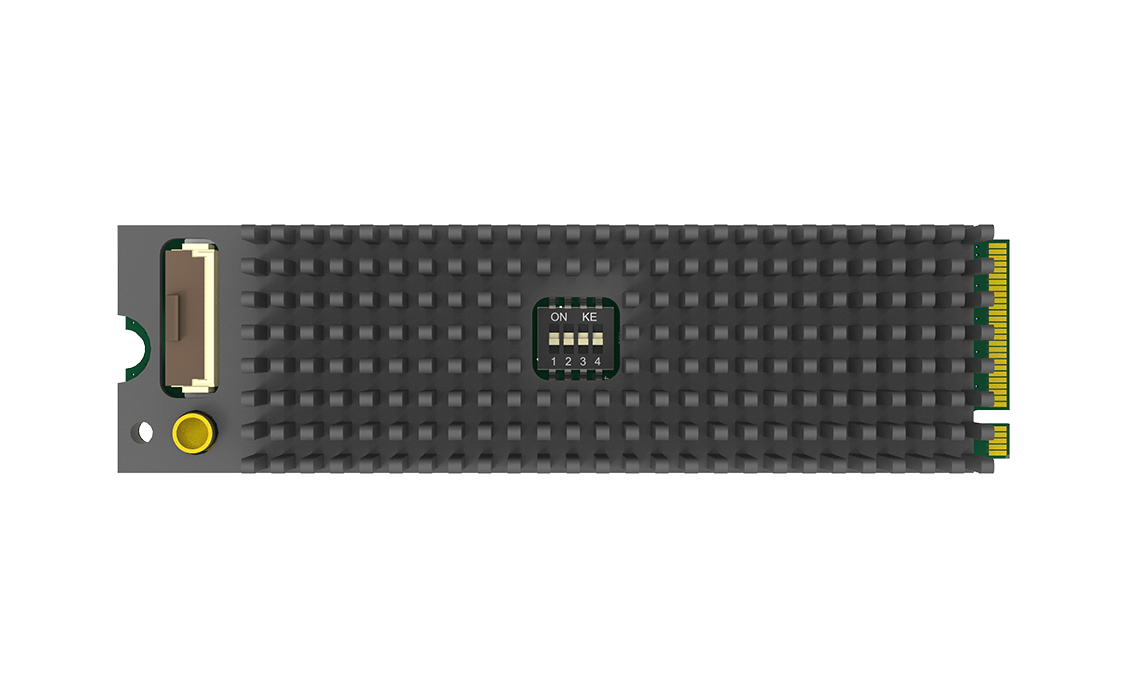

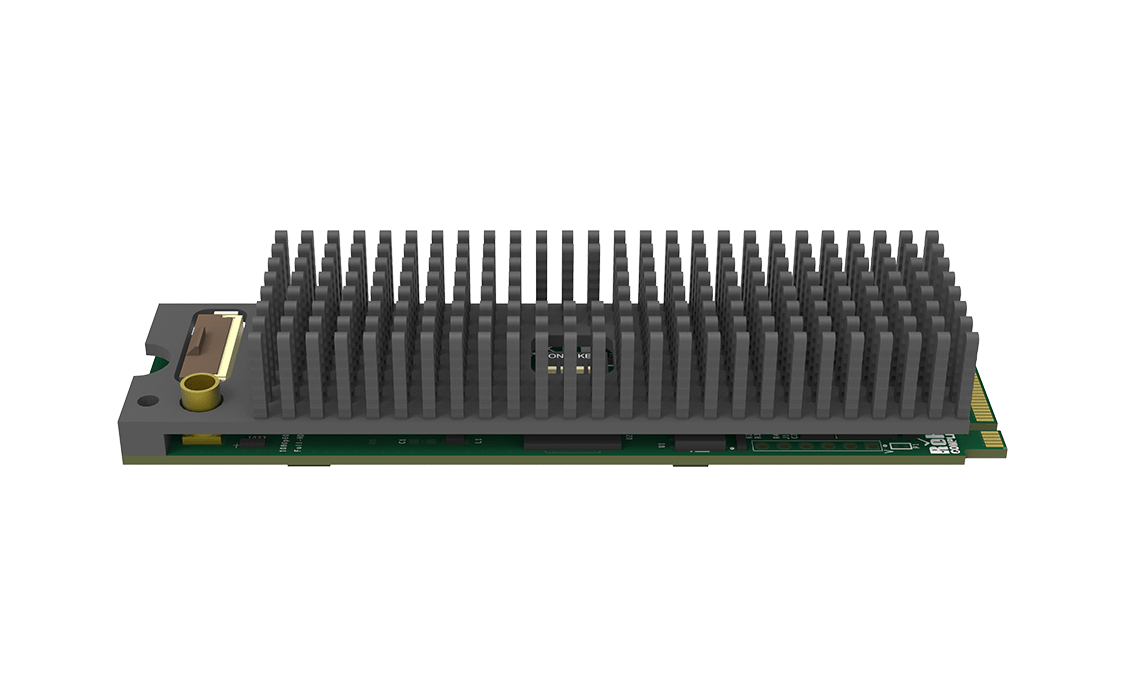

Magewell Eco Capture AIO M.2 Capture Card (11600)

Eco Capture AIO M.2 is an one-channel 2K capture card for all-in-one interfaces. It measures M.2 Type-2280 (22 x 80 mm).

Power: Max current at 3.3V: ~ 0.89 A; Max power consumption: ~ 2.94 W. In the box: 1 x FPC ribbon cables (Part number: 11514); 1 x FPC to HDMI type A adapter (Part number: 11514); 1 x MMCX to BNC cable.

Part Number	11600
Process and Capture Features	~700MB/s per channel DMA bandwidth in PCIe 2.x system; ~400MB/s per channel DMA bandwidth in PCIe 1.x system; Video processing pipelines with ~180Mpixels/s processing bandwidth
Form Factor	M.2 Type-2280 (22 x 80 mm)
Power	Max current at 3.3V: ~ 0.89 A; Max power consumption: ~ 2.94 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% (non-condensing)
In the Box	1 x FPC ribbon cables (Part number: 11514); 1 x FPC to HDMI type A adapter (Part number: 11514); 1 x MMCX to BNC cable
Recommended OS	Windows 10/11/Server 2016/Server 2019/Server 2022/Server 2025 (x86 and x64) and above; Linux x86, x64 and ARM architecture, with 2.6.35 and above
