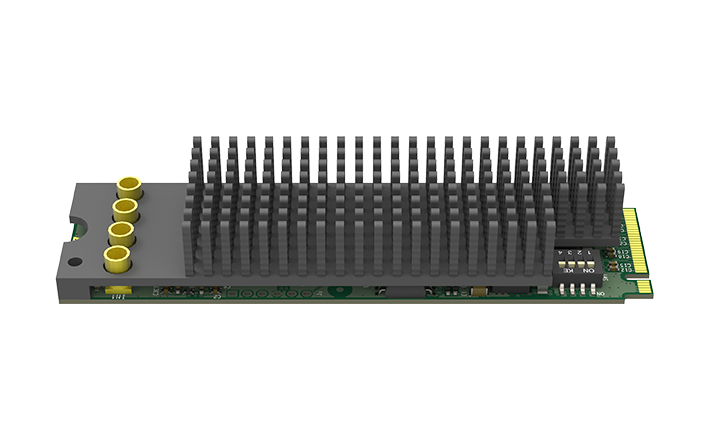

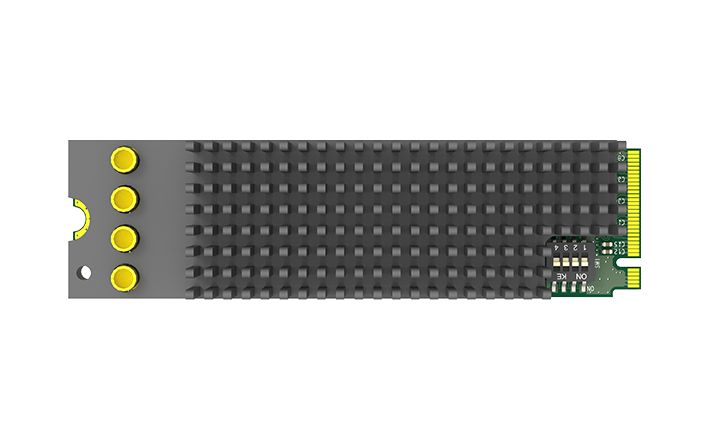

Magewell Eco Capture Quad SDI M.2 Capture Card (11540)

Eco Capture Quad SDI M.2 is a four-channel 2K capture card. Connections: 4x MMCX SD/HD/3G/2K SDI. Signal handling: Support for capture image resolutions up to 2048x1080 pixels. It seats on M.2 2280 Type M (PCIe Gen2 x4).

It measures M.2 2280 standard size. Power: Max current at 3.3V: ~ 2.17 A; Max power consumption: ~ 7.16 W. In the box: 4 X MMCX to BNC cables (32cm).

Part Number	11540
Input Interfaces	4x MMCX SD/HD/3G/2K SDI
Host Interfaces	M.2 2280 Type M (PCIe Gen2 x4)
Video Capture Formats	Support for capture image resolutions up to 2048x1080 pixels
Form Factor	M.2 2280 standard size
Power	Max current at 3.3V: ~ 2.17 A; Max power consumption: ~ 7.16 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	4 X MMCX to BNC cables (32cm)
