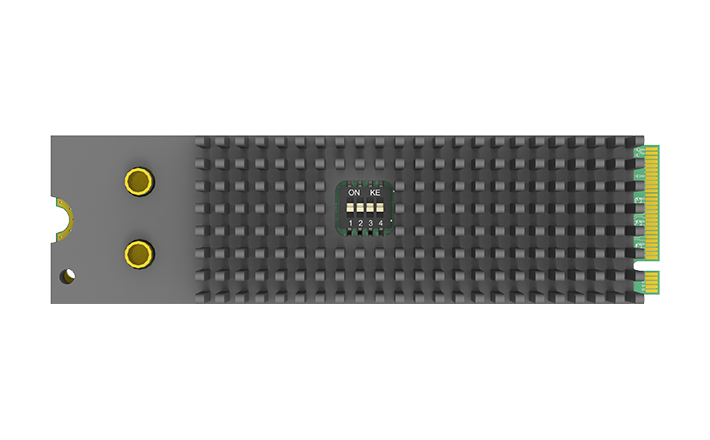

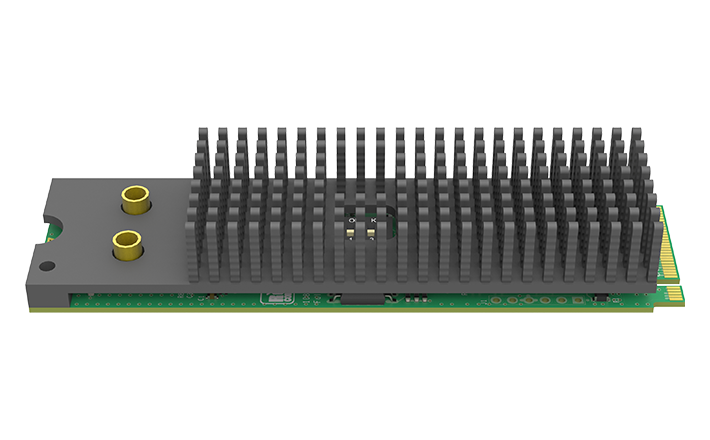

Magewell Eco Capture Dual SDI M.2 Capture Card (11530)

Eco Capture Dual SDI M.2 is a two-channel 2K capture card. Connections: 2x MMCX SD/HD/3G/2K SDI. Signal handling: Support for capture image resolutions up to 2048x1080 pixels. It seats on M.2 2280 Type M (PCIe Gen2 x2).

It measures M.2 2280 standard size. Power: Max current at 3.3V: ~ 1.00 A; Max power consumption: ~ 3.38 W. In the box: 2 X MMCX to BNC cables (32cm).

Part Number	11530
Input Interfaces	2x MMCX SD/HD/3G/2K SDI
Host Interface	M.2 2280 Type M (PCIe Gen2 x2)
Video Capture Formats	Support for capture image resolutions up to 2048x1080 pixels
Form Factor	M.2 2280 standard size
Power	Max current at 3.3V: ~ 1.00 A; Max power consumption: ~ 3.38 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	2 X MMCX to BNC cables (32cm)
