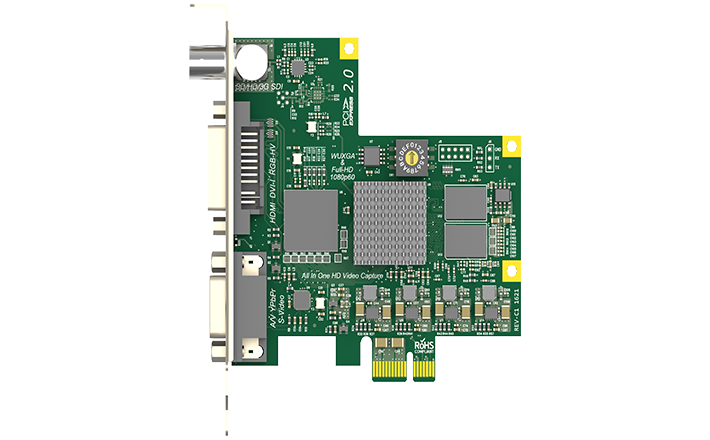

Magewell Pro Capture AIO All-In-One PCIe Capture Card (11020)

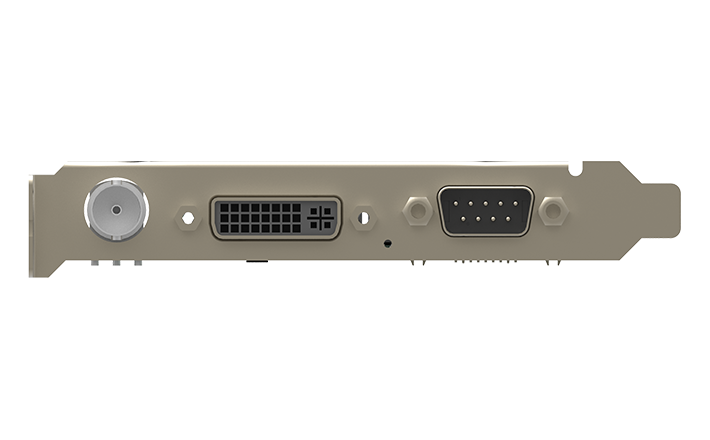

Pro Capture AIO is the card you specify when you do not know what will be plugged in. Between the SDI BNC, the DVI-I connector, and the DB9 breakout it accepts SDI, HDMI, DVI, VGA, component, composite, and S-video, each with its matching embedded or analog audio. For a university podium, a hospital AV closet, or a rental inventory item, that removes the guesswork and the box of converters that usually travels with it.

It is a PCIe Gen2 x1 card, so it fits the same slot as the single-format models, and it captures up to 2048 x 2160. Scaling, color-space conversion, and de-interlacing run in hardware on the card, which keeps the host CPU on the encoder. Windows, Linux, and macOS see standard video devices. The adapters that make the flexibility real - a DVI-to-VGA connector, a DVI-I-to-HDMI breakout, and the DB9 analog breakout cable - are in the box.
