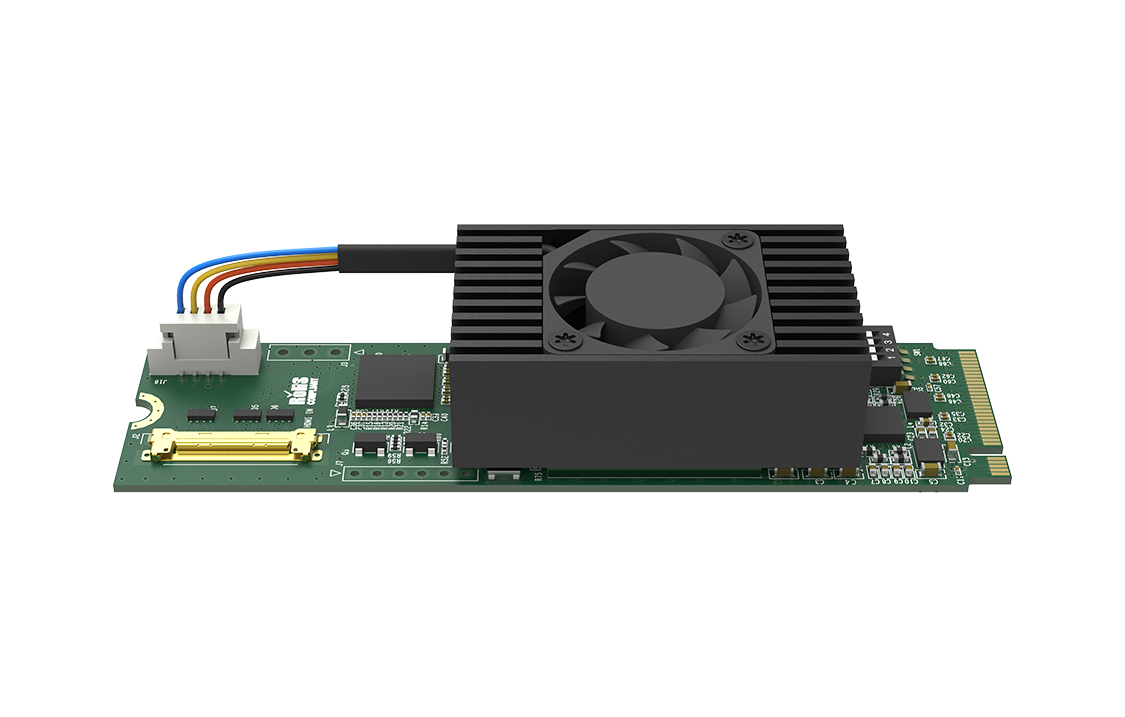

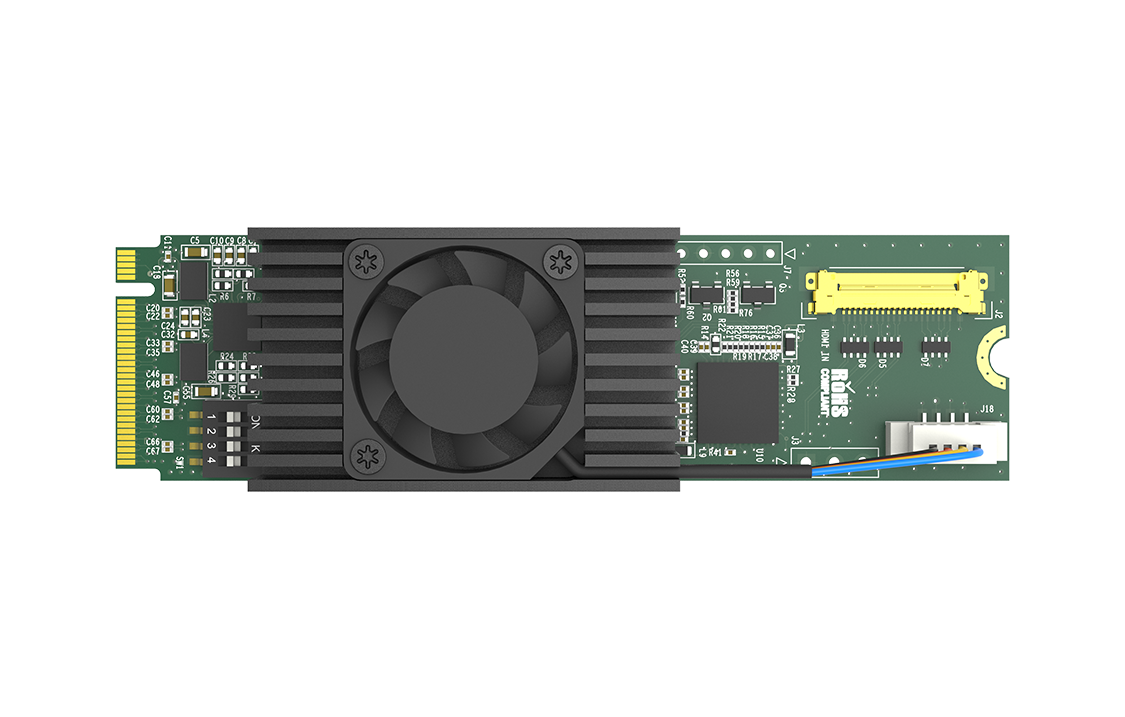

Magewell Eco Capture HDMI 4K Plus M.2 Capture Card (11590)

Eco Capture HDMI 4K Plus M.2 is a single channel 4Kp60 capture card. Connections: LVDS 0.5PH 20-Pin (Part number: 11580) DVI-D 1.0; HDMI 2.0. It seats on M.2 2280 Type M (PCIe Gen3 x4).

It measures M.2 2280 standard size (22 mm x 80 mm). Power: Max current at 3.3V: ~ 2 A; Max power consumption: ~ 6.6 W. In the box: LVDS 0.5PH 20-Pin cable (Part number: 11580); LVDS 0.5PH 20-Pin to HDMI adapter (Part number: 11580) (20.5cm).

Part Number	11590
Input Interfaces	LVDS 0.5PH 20-Pin (Part number: 11580) DVI-D 1.0; HDMI 2.0
Host Interfaces	M.2 2280 Type M (PCIe Gen3 x4)
Process and Capture Features	~2400MB/s per channel DMA bandwidth in PCIe 3.x system; ~1600MB/s per channel DMA bandwidth in PCIe 2.x system; ~800MB/s per channel DMA bandwidth in PCIe 1.x system
Form Factor	M.2 2280 standard size (22 mm x 80 mm)
Power	Max current at 3.3V: ~ 2 A; Max power consumption: ~ 6.6 W
Operating Range	Operating temperature: 0 to 60 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	LVDS 0.5PH 20-Pin cable (Part number: 11580); LVDS 0.5PH 20-Pin to HDMI adapter (Part number: 11580) (20.5cm)
