Magewell Pro Capture AIO 4K PCIe Capture Card (11170)

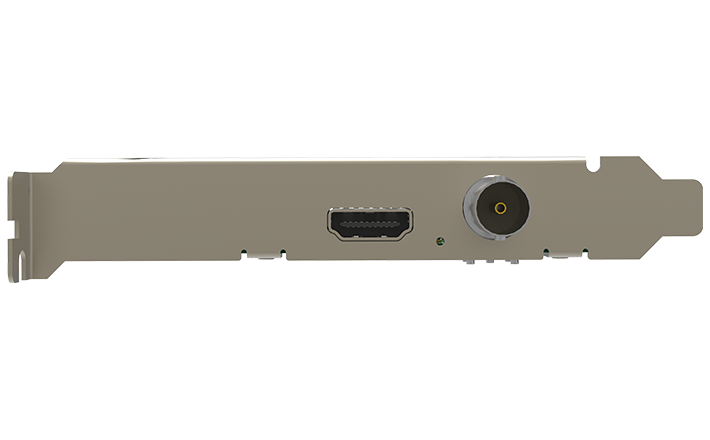

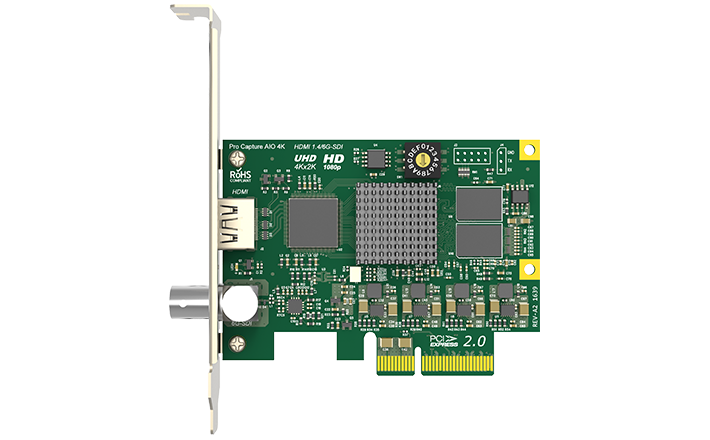

Pro Capture AIO 4K carries both an HDMI port and an SDI port on one board, so the same machine can be pointed at a broadcast camera on coax today and a laptop on HDMI tomorrow without opening the chassis. Either input captures at up to 4096 x 2160 with its embedded audio.

That flexibility is worth the most in fleet and rental deployments, where the connector the client shows up with is not known in advance. The card uses a PCIe Gen2 x4 interface for 4K bandwidth and performs scaling, color-space conversion, and de-interlacing on board so the host CPU stays available for encoding. Windows, Linux, and macOS see a standard video device, and a low-profile bracket is in the box for short-depth chassis.
