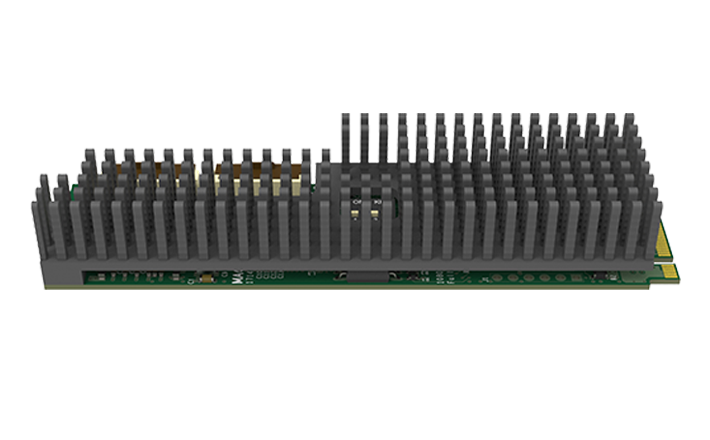

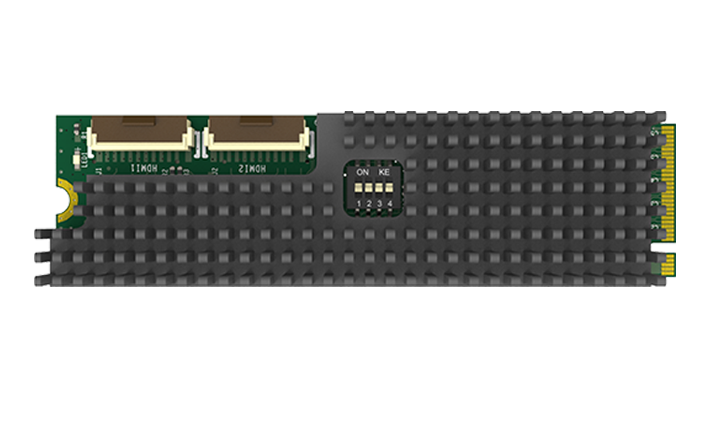

Magewell Eco Capture Dual HDMI M.2 Capture Card (11510)

Eco Capture Dual HDMI M.2 is a two-channel 2K capture card. Connections: 2x JST SHD 20-Pin socket (Part number: 11510) DVI 1.0; HDMI 1.4a; 2x FPC 20-Pin socket (Part number: 11514) DVI 1.0; HDMI 1.4a. Signal handling: Support for capture image resolutions up to 2048x2160 pixels. It seats on M.2 2280 Type M (PCIe Gen2 x4).

It measures M.2 2280 standard size. Power: Max current at 3.3V: ~ 1.25 A; Max power consumption: ~ 4.17 W. In the box: 2 X SHD to HDMI type A cables (31cm) (Part number: 11510); 2 X FPC ribbon cables (Part number: 11514); 2 X FPC to HDMI type A adapters (Part number: 11514).

Part Number	11510 / 11514
Input Interfaces	2x JST SHD 20-Pin socket (Part number: 11510) DVI 1.0; HDMI 1.4a; 2x FPC 20-Pin socket (Part number: 11514) DVI 1.0; HDMI 1.4a
Host Interface	M.2 2280 Type M (PCIe Gen2 x4)
Video Capture Formats	Support for capture image resolutions up to 2048x2160 pixels
Form Factor	M.2 2280 standard size
Power	Max current at 3.3V: ~ 1.25 A; Max power consumption: ~ 4.17 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	2 X SHD to HDMI type A cables (31cm) (Part number: 11510); 2 X FPC ribbon cables (Part number: 11514); 2 X FPC to HDMI type A adapters (Part number: 11514)
