Magewell Pro Capture AIO 4K Plus PCIe Capture Card (11140)

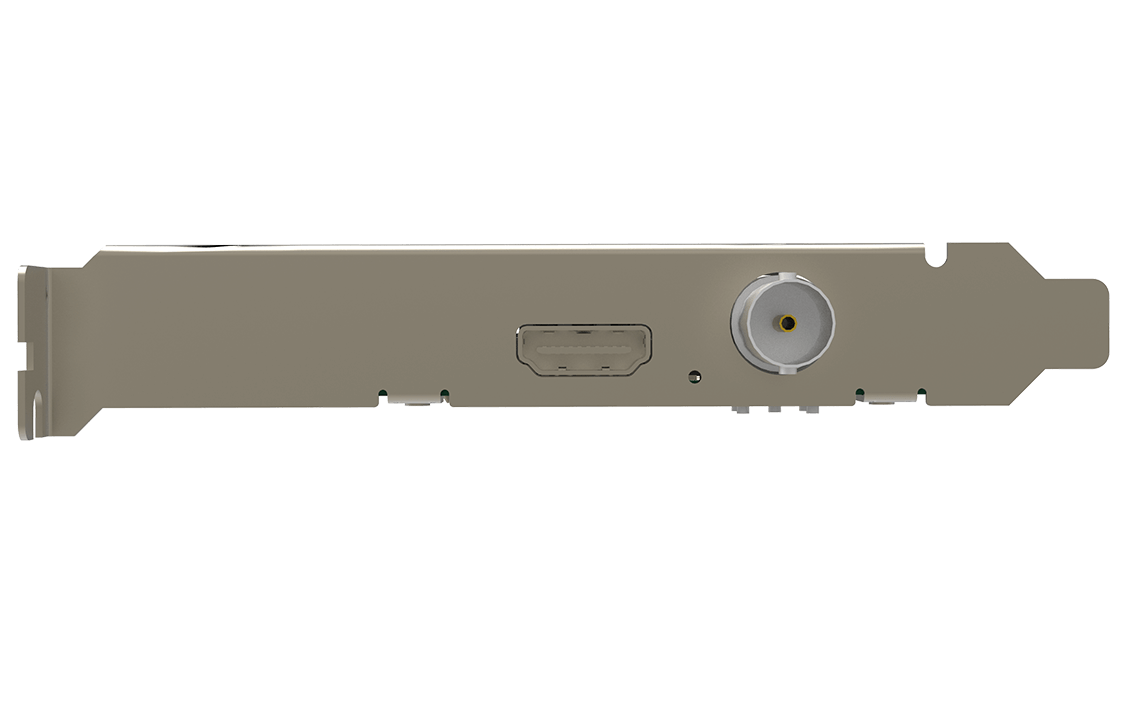

Pro Capture AIO 4K Plus is the dual-connector card with the wider SDI reach: one HDMI input and one SDI input that accepts SD, HD, 3G, and 6G. That means a 4K camera feeding 6G-SDI over a single coax run lands on the same card as an HDMI laptop, with no external converter and no second slot.

Both inputs capture at up to 4096 x 2160 with embedded audio. The card runs on a PCIe Gen2 x4 interface and does its scaling, color-space conversion, and de-interlacing on board, so a 4K capture can be delivered to the encoder already sized without a software resize. It appears as a standard video device to Windows, Linux, and macOS applications. A low-profile bracket is included.
