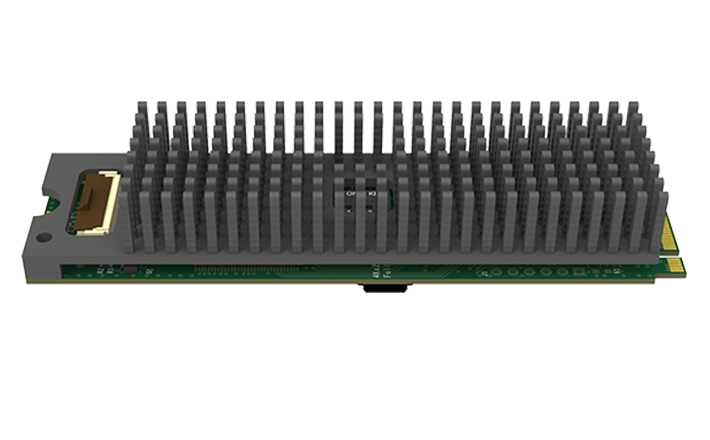

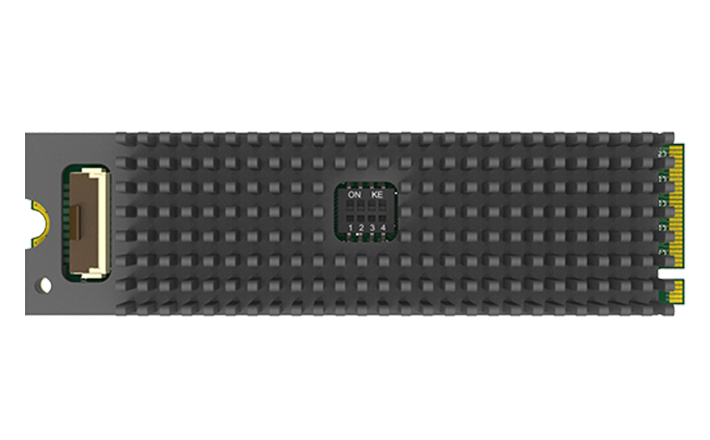

Magewell Eco Capture HDMI 4K M.2 Capture Card (11520)

Eco Capture HDMI 4K M.2 is a single channel 4k capture card. Connections: JST SHD 20-Pin socket (Part number: 11520) DVI-D 1.0; HDMI 1.4; FPC 20-Pin socket (Part number: 11524) DVI-D 1.0; HDMI 1.4. Signal handling: Support for capture image resolutions up to 4096x2160 pixels, including YUY2: 4096x2160p60/2160p60/1080p144/1080p60; BGR24: 4096x2160p60/2160p60/1080p144/1080p60. It seats on M.2 2280 Type M (PCIe Gen2 x4).

It measures M.2 2280 standard size. Power: Max current at 3.3V: ~ 1.12 A; Max power consumption: ~ 3.75 W. In the box: SHD to HDMI type A cables (31cm) (Part number: 11520); FPC ribbon cable (Part number: 11524); FPC to HDMI type A adapter (Part number: 11524).

Part Number	11520 / 11524
Input Interfaces	JST SHD 20-Pin socket (Part number: 11520) DVI-D 1.0; HDMI 1.4; FPC 20-Pin socket (Part number: 11524) DVI-D 1.0; HDMI 1.4
Host Interfaces	M.2 2280 Type M (PCIe Gen2 x4)
Video Capture Formats	Support for capture image resolutions up to 4096x2160 pixels, including YUY2: 4096x2160p60/2160p60/1080p144/1080p60; BGR24: 4096x2160p60/2160p60/1080p144/1080p60
Form Factor	M.2 2280 standard size
Power	Max current at 3.3V: ~ 1.12 A; Max power consumption: ~ 3.75 W
Operating Range	Operating temperature: 0 to 40 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	SHD to HDMI type A cables (31cm) (Part number: 11520); FPC ribbon cable (Part number: 11524); FPC to HDMI type A adapter (Part number: 11524)
