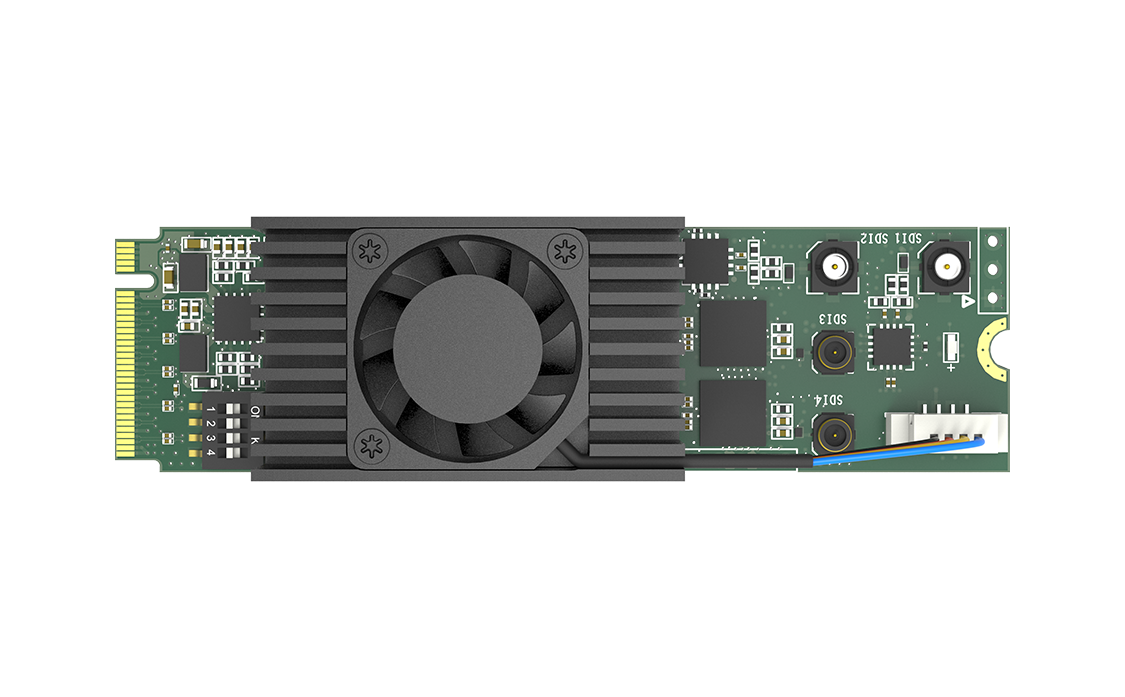

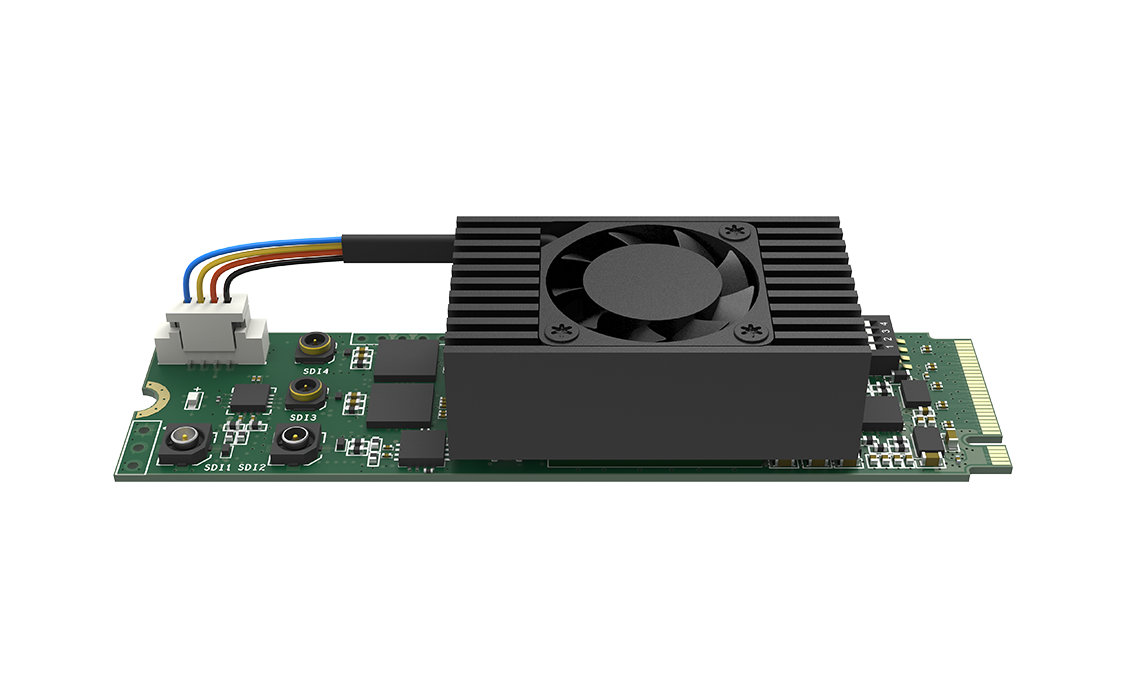

Magewell Eco Capture 12G SDI 4K Plus M.2 Capture Card (11561)

Eco Capture 12G SDI 4K Plus M.2 is a single channel 4Kp60 capture card. Connections: 2 x SD/HD/3G-SDI; 2 x SD/HD/3G/6G/12G-SDI. It seats on M.2 2280 Type M (PCIe Gen3 x4).

It measures M.2 2280 standard size (22 x 80 mm). Power: Max current at 3.3V: ~ 1.96 A; Max power consumption: ~ 6.5 W. In the box: 2 x 3G BNC (Part number: ELE00018); 2 x 3G H.FL75-2LPG-084N2-A-140 (14cm) (Part number: ELE00019); 2 x 12G DFL75-2LPP-084N9D-A-140 (14cm) (Part number: ACC10020).

Part Number	11561
Input Interfaces	2 x SD/HD/3G-SDI; 2 x SD/HD/3G/6G/12G-SDI
Host Interfaces	M.2 2280 Type M (PCIe Gen3 x4)
Process and Capture Features	Video processing pipelines with ~700Mpixels/s processing bandwidth; ~2400MB/s per channel DMA bandwidth in PCIe 3.x system; ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
Form Factor	M.2 2280 standard size (22 x 80 mm)
Power	Max current at 3.3V: ~ 1.96 A; Max power consumption: ~ 6.5 W
Operating Range	Operating temperature: 0 to 60 deg C; Storage temperature: -20 to 70 deg C; Relative Humidity: 5% to 90% non-condensing
In the Box	2 x 3G BNC (Part number: ELE00018); 2 x 3G H.FL75-2LPG-084N2-A-140 (14cm) (Part number: ELE00019); 2 x 12G DFL75-2LPP-084N9D-A-140 (14cm) (Part number: ACC10020)
