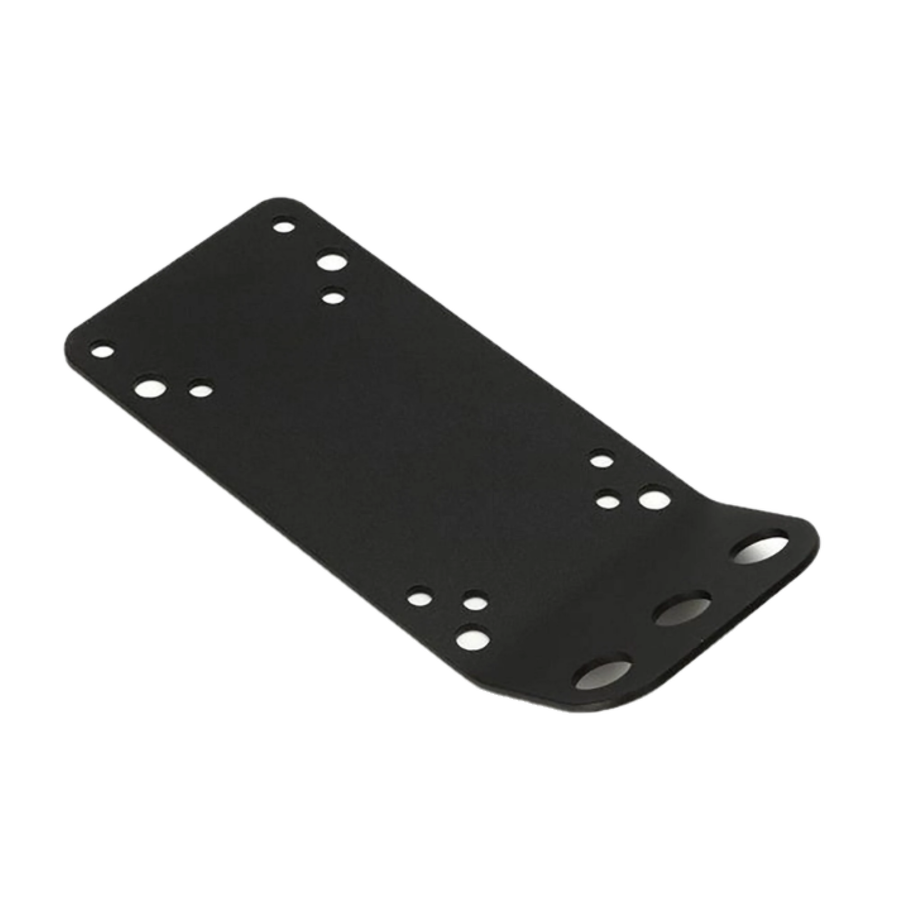

JBL MTC-CBT-SUS3 Suspension Bracket for CBT 1000 / 1000E
The MTC-CBT-SUS3 is a suspension bracket for JBL's CBT 1000 and CBT 1000E line array columns, for flying the column from an overhead rigging point instead of floor- or wall-mounting it.
It ships in black or white to match the column's own cabinet finish options.
| Type | Suspension Bracket |
|---|---|
| Compatible With | CBT 1000, CBT 1000E |
| Finish | Black or White |
| Manufacturer Part Number | MTC-CBT-SUS3 / MTC-CBT-SUS3-WH |
| Kit Contents | 2 MTC-CBT-SUS brackets, 8 M6 x 20 mm pan-head bolts, 8 M8 x 20 mm pan-head bolts, 8 M8 x 40 mm pan-head bolts, 8 M6 flat washers, 8 M6 lock washers, 8 M8 flat washers, 8 M8 lock washers |
| Bracket Dimensions | 90 mm x 219 mm (3.5 in x 8.6 in) |
| Clip Points | Three 15 mm (0.62 in) diameter clip points on a 30-degree bend |
| Hole Patterns | M8 clearance holes (x4) for CBT 1000 / 1000E; M6 clearance holes (x4) for CBT 50LA-1 / 100LA-1 / 200LA-1 and CBT 70J-1 / 70JE-1 |
