HK Audio LINEAR 5 115 F Passive Mid/High Loudspeaker

The LINEAR 5 115 F is a passive 2-way mid/high speaker pairing a 15-inch cone driver on a 3-inch voice coil with a 1-inch compression driver on a rotatable constant-directivity horn. Power handling runs 600 W RMS, 1,200 W program, and 2,400 W peak, reaching 129 dB average and 135 dB peak, with a horn set to an asymmetrical 60-90 by 55 degree pattern for flexible standalone or DJ monitor placement.

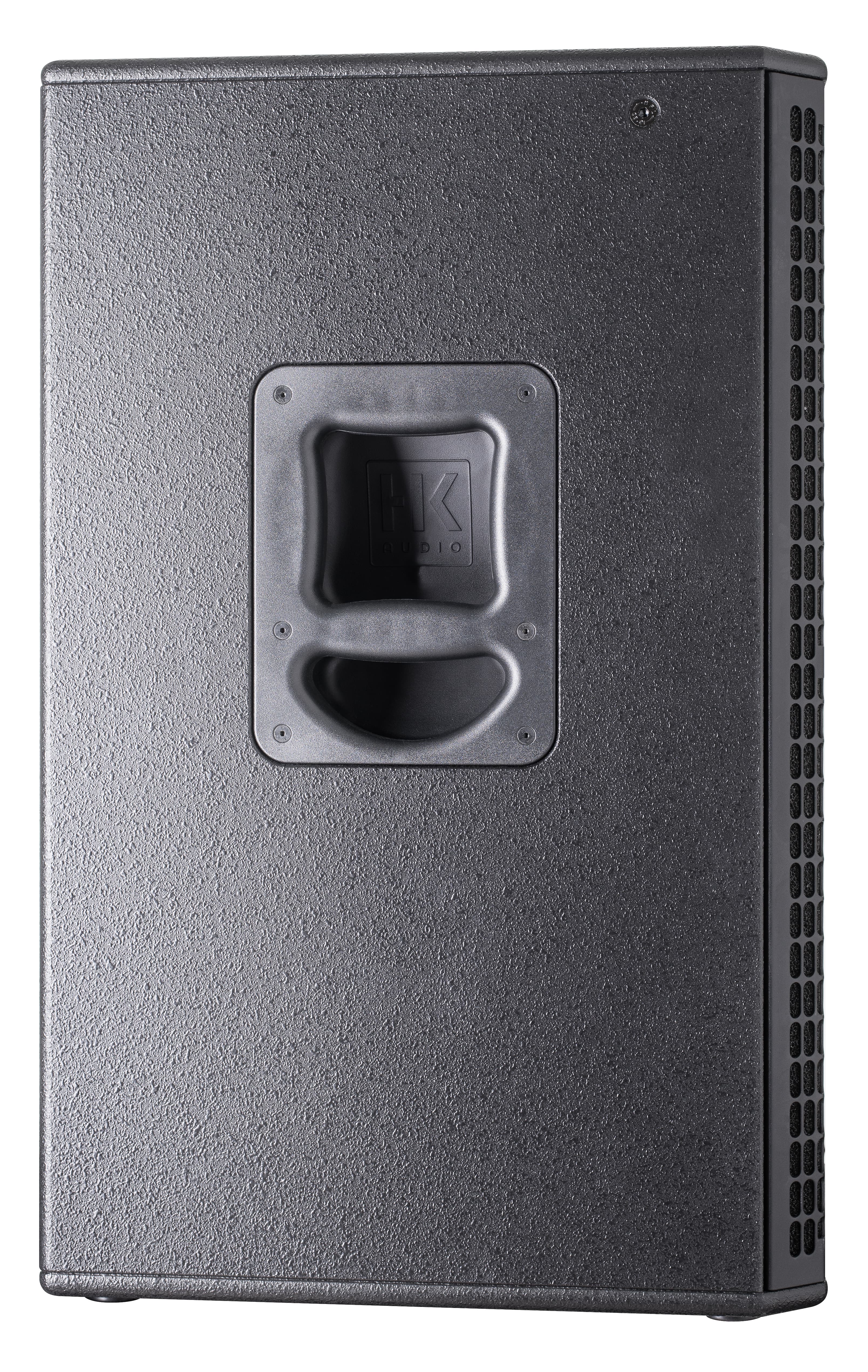

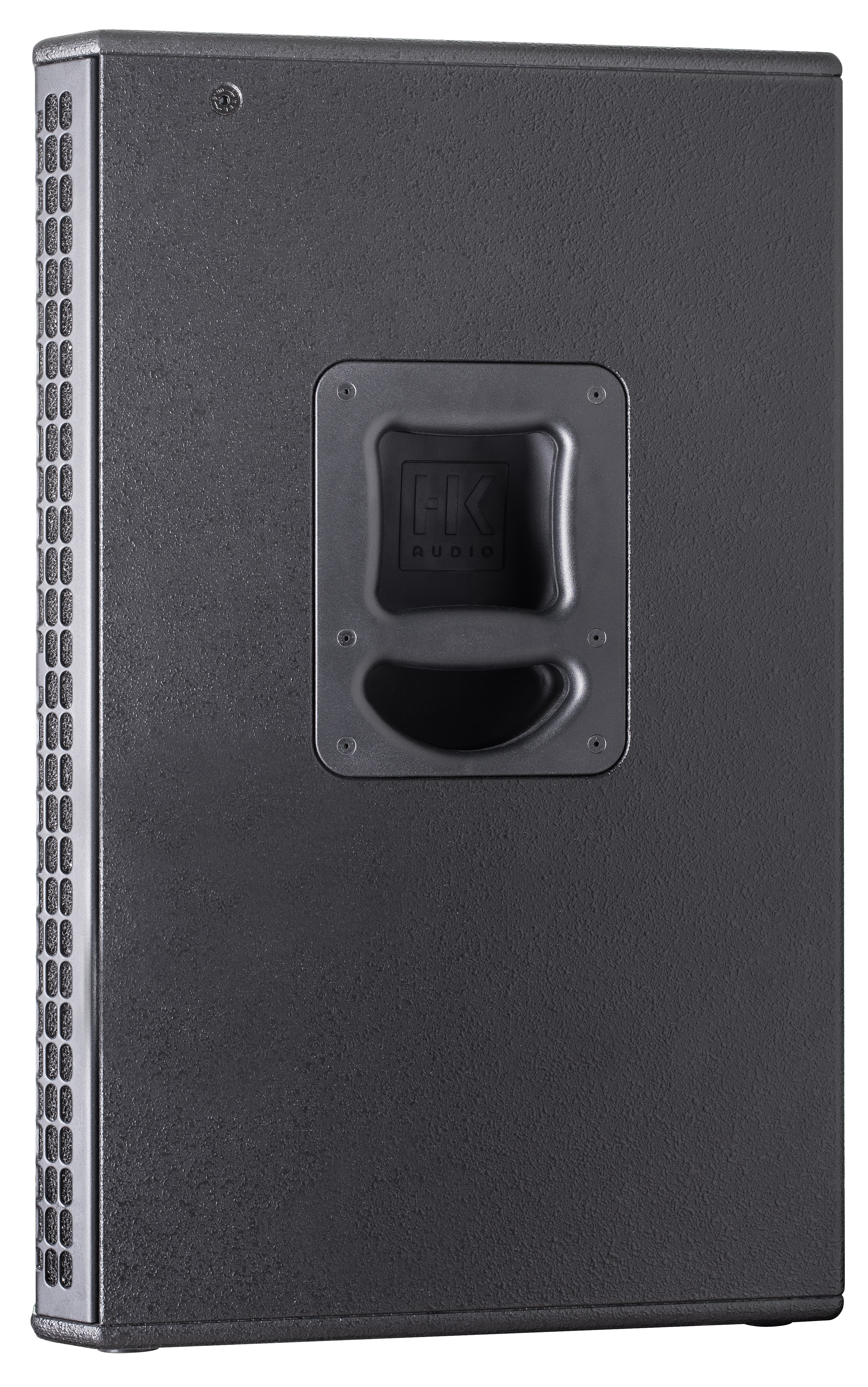

A PTC circuit protects the high-frequency driver, and the hybrid birch plywood and MDF cabinet is finished in water enamel jet black, rigged on a DuoTilt 3/7 degree pole mount with three M8 points and two MultiGrip handles. It connects through a single NL4 Speakon and is recommended for pairing with Lab.gruppen IPX, IPD, or Lake amplification.

Power Handling	600 W RMS / 1,200 W program / 2,400 W peak
Max SPL Average / Peak	129 dB / 135 dB
Sensitivity	103 dB (1W/1m)
Frequency Response	62 Hz - 18 kHz (-6 dB), 52 Hz - 20 kHz (-10 dB)
Components	1 x 15 inch cone (3 inch coil), 1 x 1 inch compression driver (1.75 inch coil)
Dispersion	60-90 degrees asymmetrical x 55 degrees, rotatable

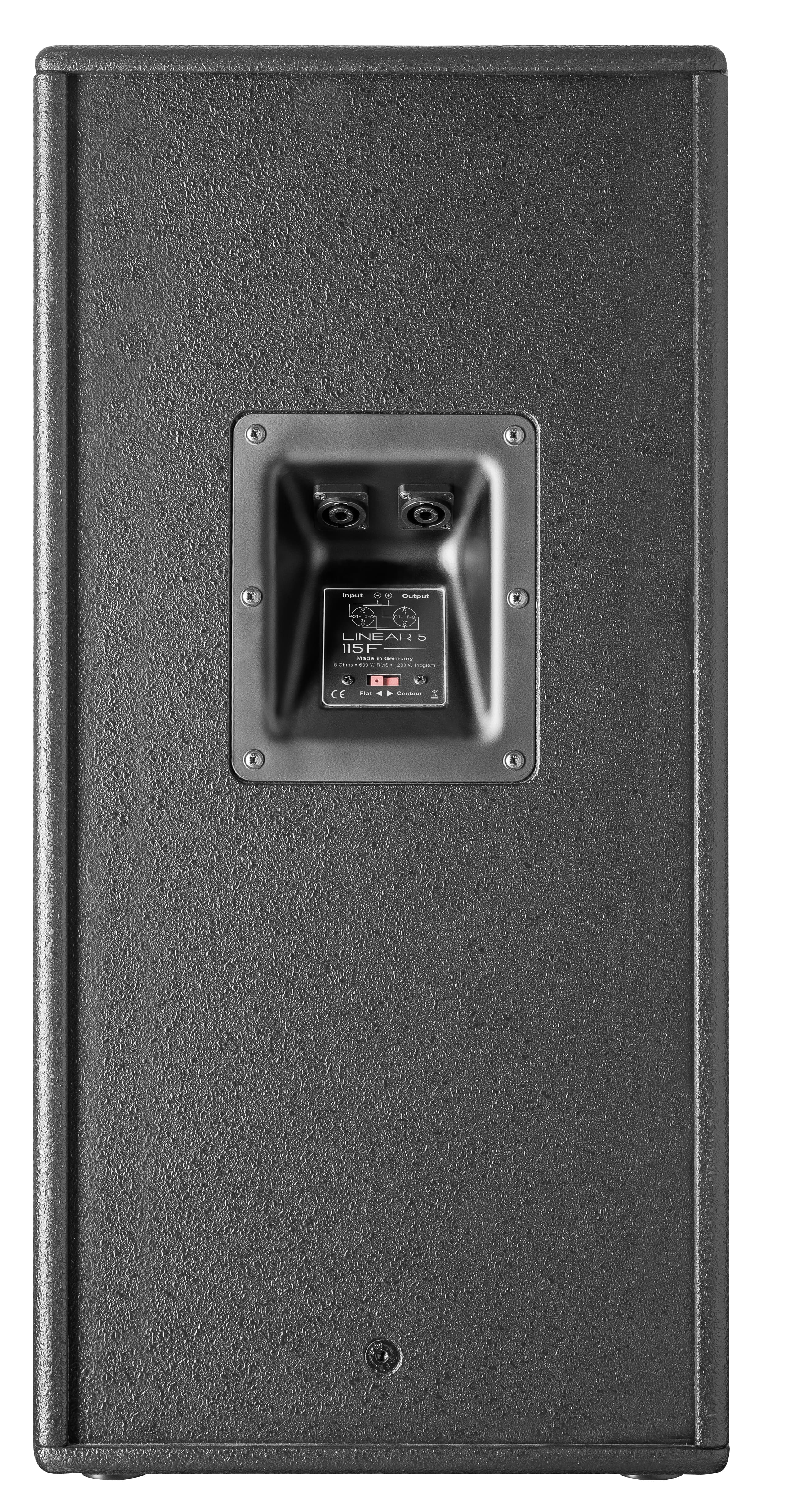

Connections	1 x NL4 Speakon, 18 ohms
Weight	30.1 kg (66.4 lb)
