HK Audio LINEAR 5 LTS Compact Long-Throw Loudspeaker

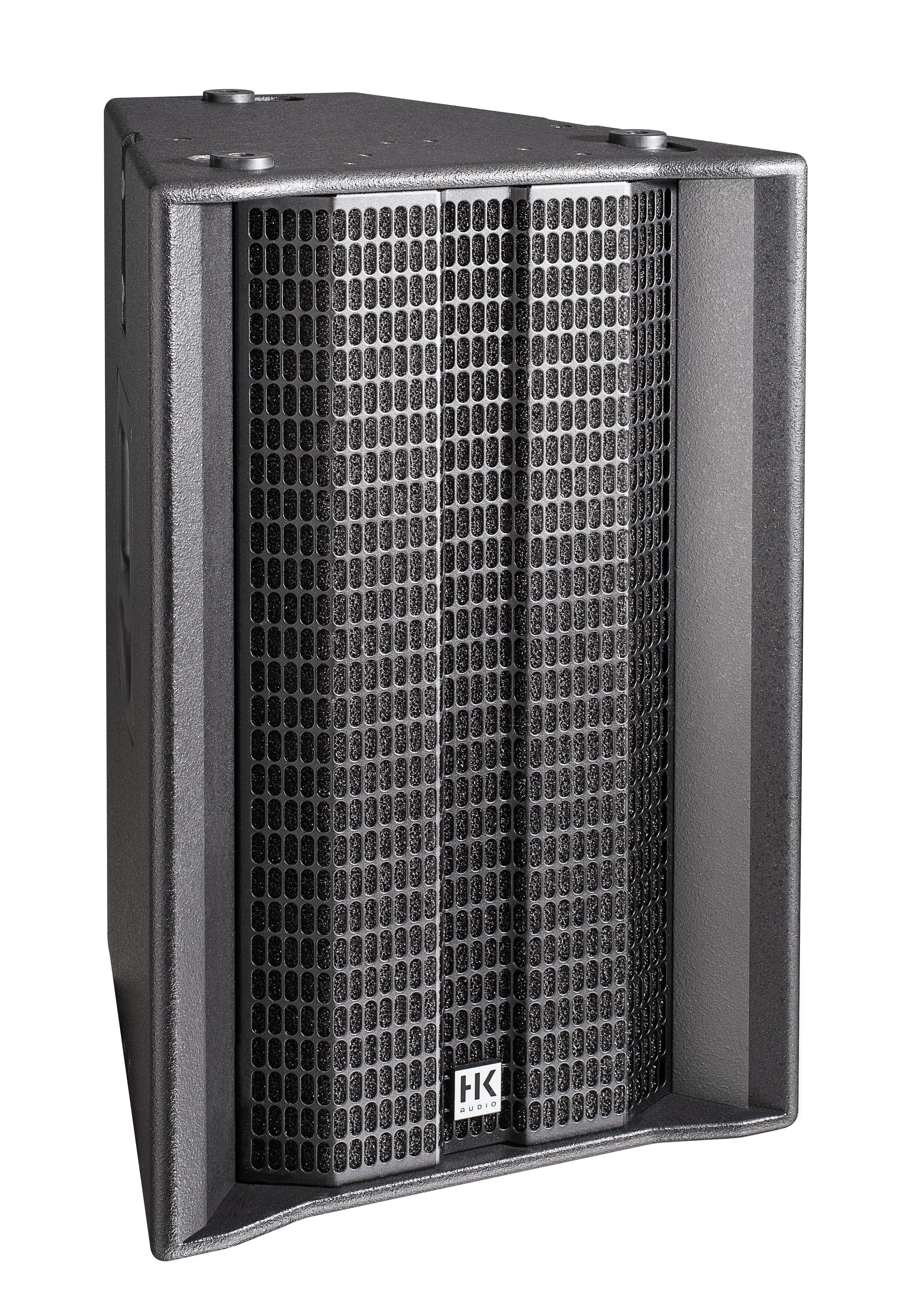

The LINEAR 5 LTS packs genuine long-throw performance into an ultra-compact format, three 8-inch cone drivers on 2-inch voice coils crossing at 1.7 kHz to a 1-inch compression driver on an MCT horn. Rated at 600 W RMS and 1,200 W program, it projects a 60 by +5/-25 degree pattern to 133 dB average and 138 dB peak past 30 meters, making it a practical choice for small to mid-size events where truck space and rigging time matter.

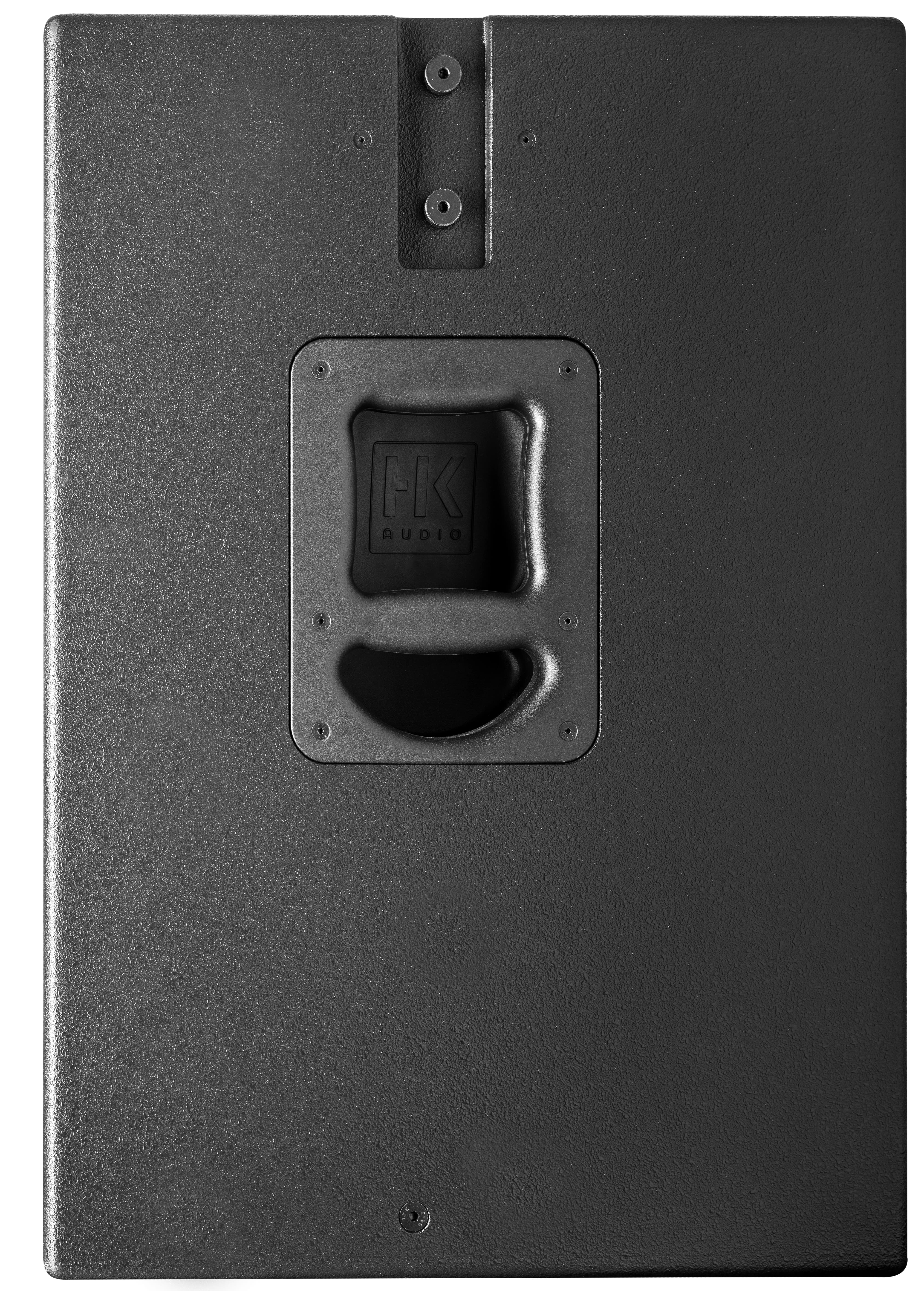

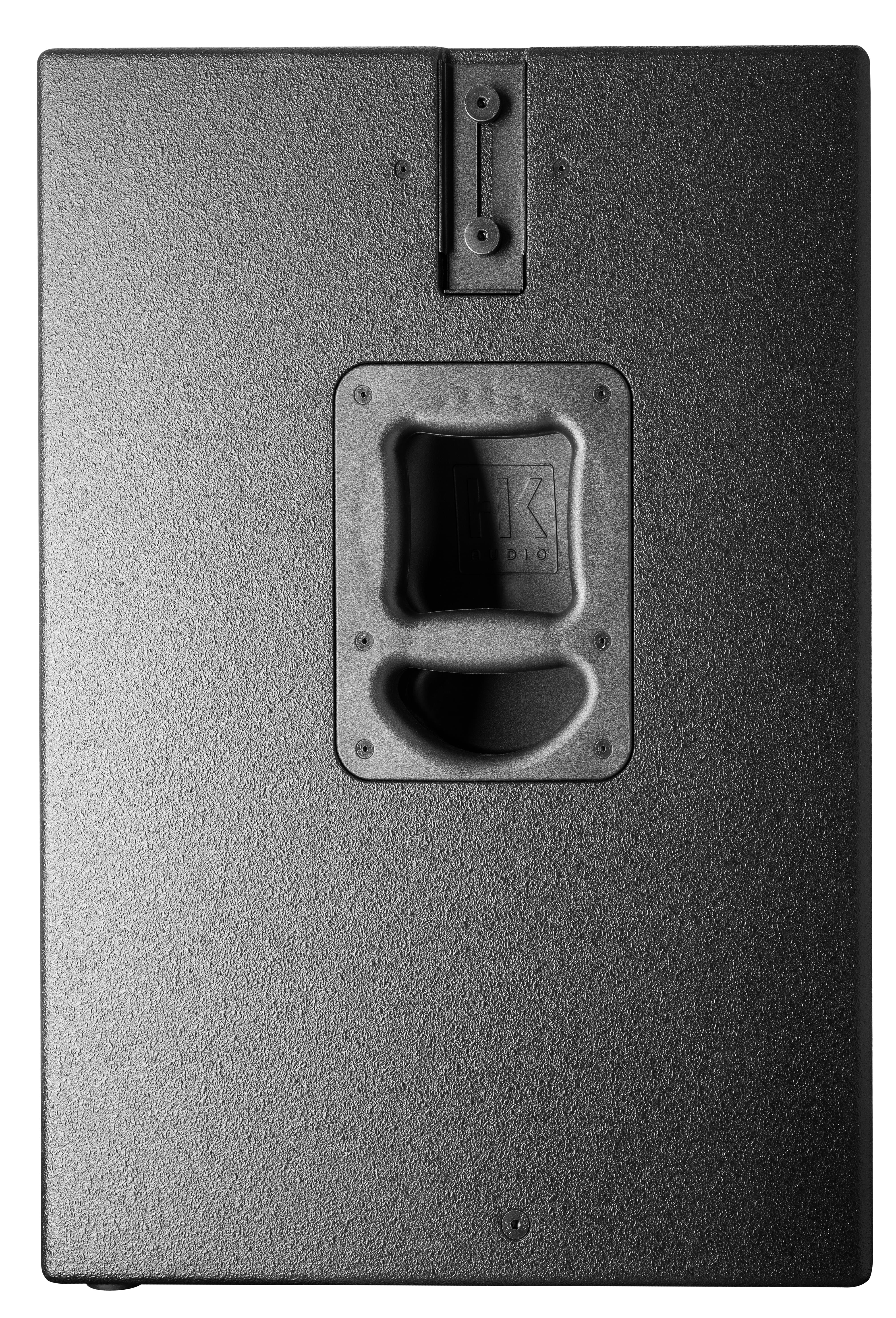

The hybrid birch plywood and MDF cabinet is finished in jet black water enamel and rigs on a MonoTilt bracket with five M8 points. It is a passive design, connecting through switchable-pin NL4 Speakon, and HK Audio recommends its own Lab.gruppen IPX or IPD amplifiers, or a Lake processor, to drive it.
