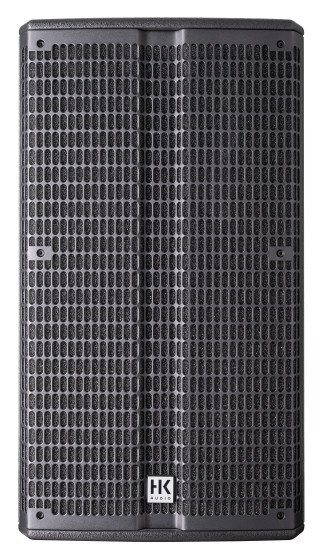

HK Audio LINEAR 5 112 F Passive Mid/High Loudspeaker

The LINEAR 5 112 F is a passive 2-way mid/high speaker combining a 12-inch cone driver on a 2.5-inch voice coil with a 1-inch compression driver on an asymmetrical rotatable horn. Rated at 500 W RMS and 1,000 W program, it reaches 129 dB average and 135 dB peak, and a switchable EQ lets it run as a standalone unit, a stereo pair, or paired with a LINEAR SUB.

The hybrid birch plywood and MDF cabinet is finished in jet black, rigged on a DuoTilt pole mount with three M8 points, and connects through a single NL4 Speakon with a parallel output for daisy-chaining a second cabinet.

Power Handling	500 W RMS / 1,000 W program
Max SPL Average / Peak	129 dB / 135 dB
Sensitivity	103 dB (1W/1m)
Frequency Response	79 Hz - 18 kHz (-6 dB), 60 Hz - 19 kHz (-10 dB)
Components	1 x 12 inch cone (2.5 inch coil), 1 x 1 inch compression driver (1.75 inch coil)
Dispersion	60-90 degrees asymmetrical x 55 degrees, rotatable
Connections	1 x NL4 Speakon, parallel output
Weight	23.9 kg (52.7 lb)
Order Code	LINEAR-5-112-F-U
