ESE HD-266/SD/1 Time Code Driven HD & SD SDI Time, Date & Timer Video Inserter

The HD-266/SD/1 reads ESE Time Code, ESE Timer Code, SMPTE-LTC/EBU or D-VITC/RP-188 and inserts the resulting time, date or timer text directly onto an HD or SD-SDI signal, automatically detecting which format is present. Because it is driven by house time code rather than a free-running clock, its readout stays locked to every other timing display on the facility.

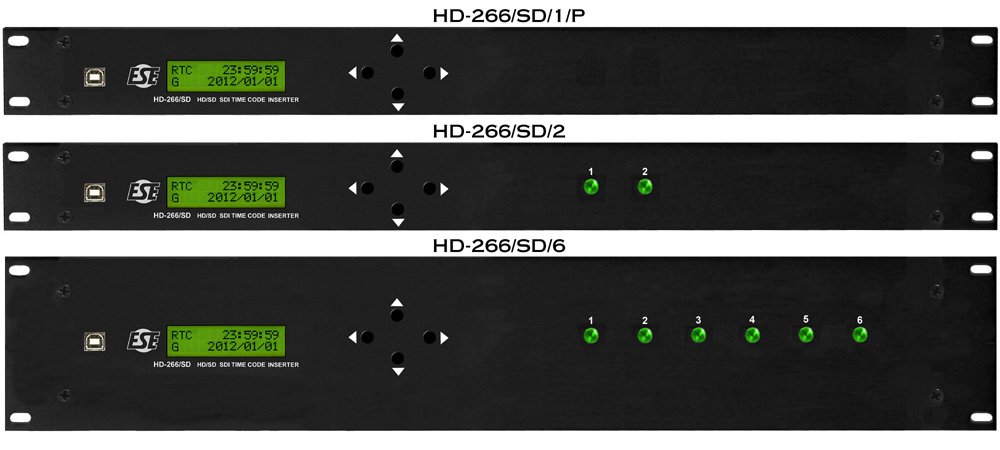

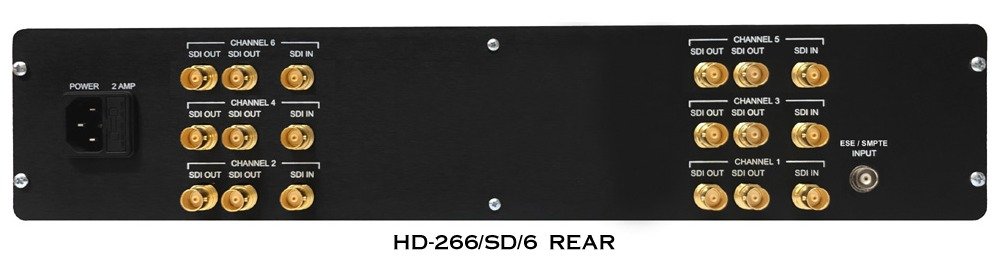

Up to 30 characters of user text spread across two independent windows, in ten font sizes and seven colors, with front-panel-plus-LCD or USB/PC software configuration. Embedded audio passes through untouched in HD mode, and single to six-channel versions are available.

Function	Time-code-driven HD/SD SDI time/date/timer video inserter
Timecode Inputs	ESE Time Code, ESE Timer Code, SMPTE-LTC/EBU, D-VITC, RP-188
Format Detection	Automatic SD or HD
Character Windows	Two independent
Text Capacity	Up to 30 characters
Colors	Grayscale plus 6 colors
Audio	Embedded audio pass-through (HD mode)
Power	Universal 90-264 VAC
