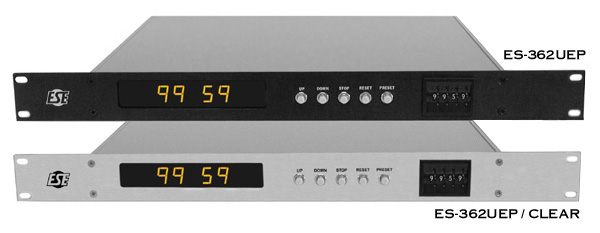

ESE ES-362UE Master 100 Minute Up/Down Timer with Thumbwheel Preset

The ES-362UE is the master in an ESE timing chain. It counts 00:00 to 99:59 on four .56 in yellow LED digits and puts out ESE serial Timer Code on a rear BNC, so every remote display on the run shows exactly what the master shows. A four-digit thumbwheel sets the preset without stepping through digits.

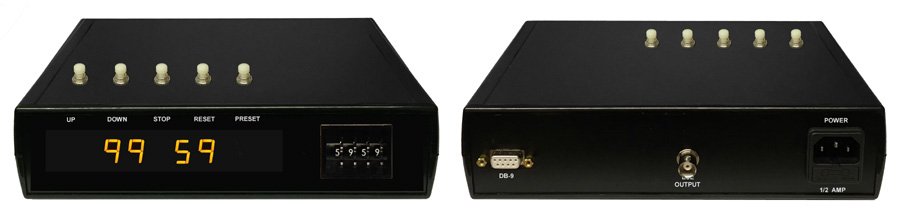

Five front pushbuttons handle Up, Down, Stop, Reset to 00:00 and Preset to the thumbwheel setting, and the same five functions are duplicated on a rear 9-pin D-sub as momentary contact closures, so the timer can be driven from a console or an automation system. Optional relay contacts can close at zero, and the count can be set to reverse or hold at 00:00.
