ESE ES-520UE Desktop 60 Minute Up Timer

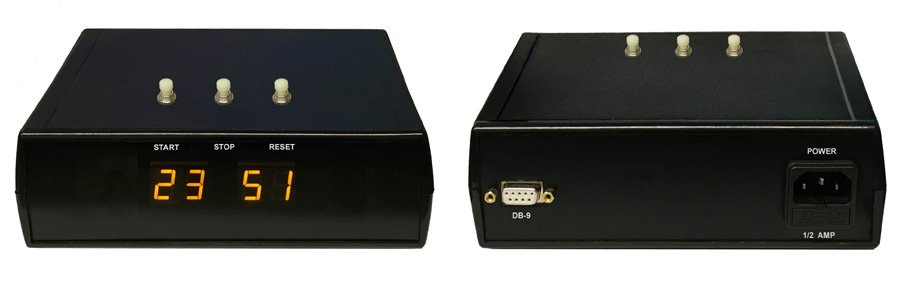

The ES-520UE is ESE's flagship elapsed-time indicator: four .56 in yellow LED digits over a sixty minute range, with Start, Stop and Reset on the front panel. It is the standard timer for a radio or TV studio where a segment simply has to be timed from zero.

A rear DB-9 duplicates the three controls and adds four isolated Reset inputs, and a serial output of ESE Time Code can drive as many as 100 remote digital timer displays from this one unit. Option T adds tenths of seconds.

Type	60 minute up timer (elapsed time indicator)
Display	.56 in yellow LED
Digits	Four (minutes and seconds)
Viewing Distance	20 feet
Controls	Front push buttons, duplicated on rear DB-9 with four isolated Reset inputs
Output	ESE serial Time Code, drives up to 100 remote displays
Enclosure	Desk top, 2.5 in H x 8 in W x 6 in D
Power	5 Watts, 117 VAC 50/60 Hz
