ESE HD-453/SD SDI Embedded SMPTE/EBU Time Code Display

The HD-453/SD decodes RP-188/SMPTE 12M-2 time code embedded in an incoming SD, HD or 3G-SDI signal on a rear BNC and shows it on an 8-digit, .56 inch yellow LED display, automatically detecting the video format and locking to whatever arrives. A front switch toggles the readout between hours/minutes/seconds/frames and the user-bit digits carried alongside the time code.

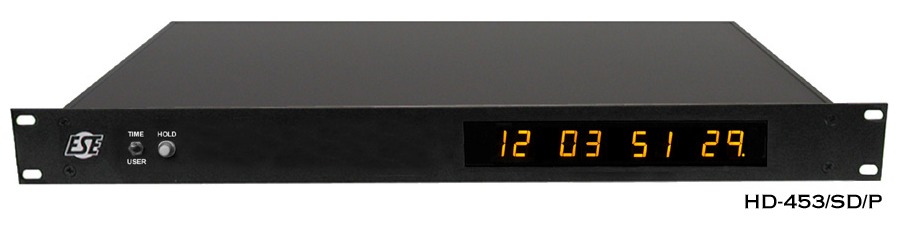

An optional ESE Time Code output puts TC89 on a rear BNC that can drive up to 100 slave displays as far as 4000 feet away, extending the embedded SDI timecode out to a whole facility's worth of remote readouts. It runs on universal 90-264 VAC in a desktop case, with a rack-mount option available.

Function	SDI-embedded SMPTE/EBU time code display
Input	RP-188/SMPTE 12M-2 embedded in SD/HD/3G-SDI (rear BNC)
Display	0.56" yellow LED, 8 digits
Display Modes	Time or User Bits (front switch)
Format Detection	Automatic, with video lock
Optional Output	ESE Time Code (TC89), drives up to 100 slaves to 4000 ft
Power	Universal 90-264 VAC
Enclosure	Desktop standard; rackmount optional
