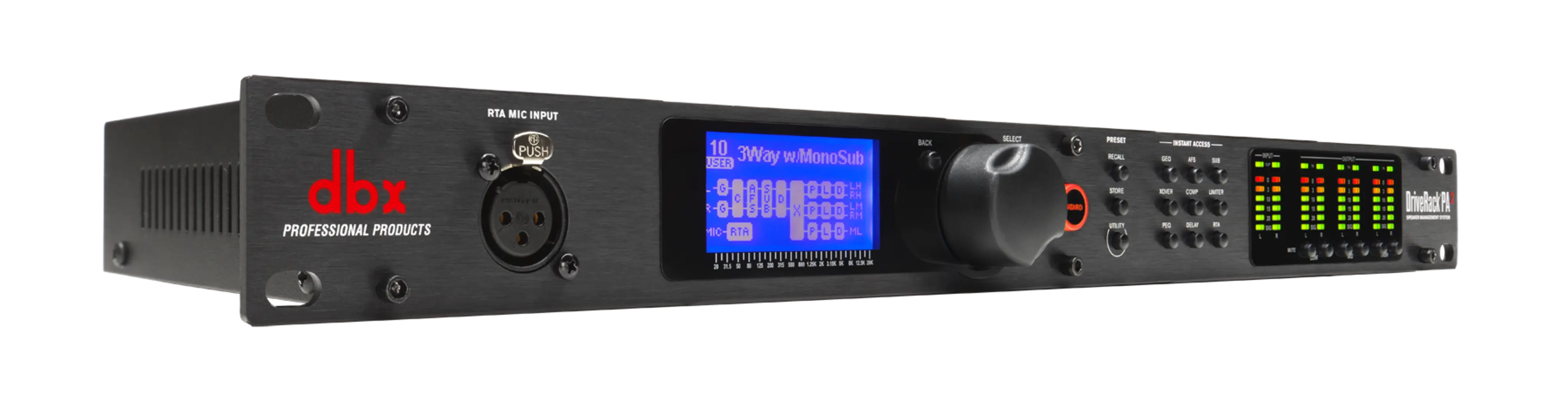

The DriveRack PA2 is the small-system version of dbx's loudspeaker management, aimed at a band or a house of worship running mains and subs from a single rack. Two XLR line inputs feed six XLR line outputs, and the setup wizard walks through speaker selection, crossover, and room tuning rather than expecting the operator to already know the numbers.

The input chain carries compression, Advanced Feedback Suppression, graphic and parametric EQ, and subharmonic synthesis; the output chain has crossovers, parametric EQ, limiting, and driver alignment delay of 10 ms per channel. A dedicated RTA microphone input with +15 VDC powering drives AutoEQ. Everything is controlled from an Android, iOS, Mac, or Windows app over Ethernet. Conversion runs at 48 kHz with 112 dB A-weighted dynamic range and 0.003% THD+N, in a 1U chassis weighing 5.25 lbs.

Inputs	2 line inputs on female XLR, 1 RTA mic input on female XLR; over 50 kOhm, CMRR over 45 dB
RTA Mic Preamp	+15 VDC phantom; equivalent input noise under -117 dB, 22 Hz - 22 kHz, 150 Ohm

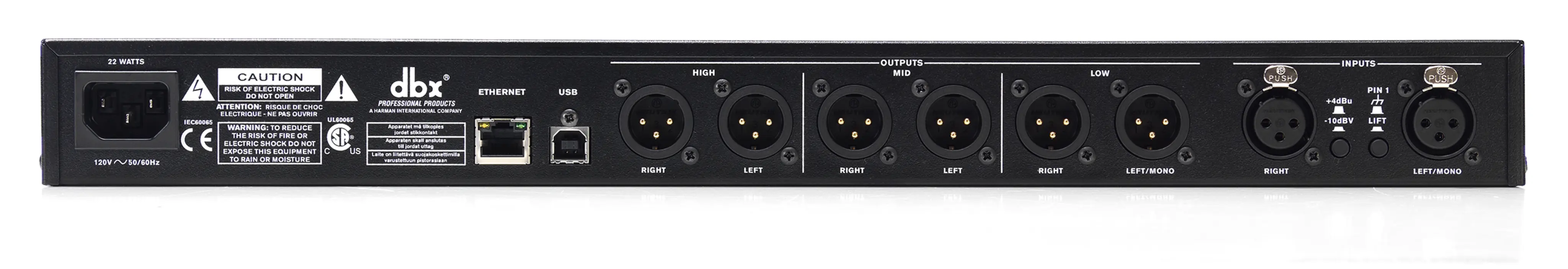

Outputs	6 line outputs on male XLR; 120 Ohm, +20 dBu maximum
Sample Rate	48 kHz
Dynamic Range	112 dB A-weighted, 110 dB unweighted (A/D and D/A); Type IV 123 dB with transient material
THD + Noise	0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response	20 Hz - 20 kHz, +/- 0.5 dB
Crosstalk	Under -110 dB, -120 dB typical
Processing	Input: compression, AFS, graphic and parametric EQ, subharmonic synthesis. Output: crossover, parametric EQ, limiting, alignment delay 10 ms per channel (60 ms total)
Control	Android, iOS, Mac and Windows app over Ethernet
Dimensions / Weight	19 in W x 5.75 in D x 1.75 in H; 5.25 lbs (2.4 kg)
Power	100 - 120 VAC or 220 - 240 VAC, 50 / 60 Hz, 22 W
