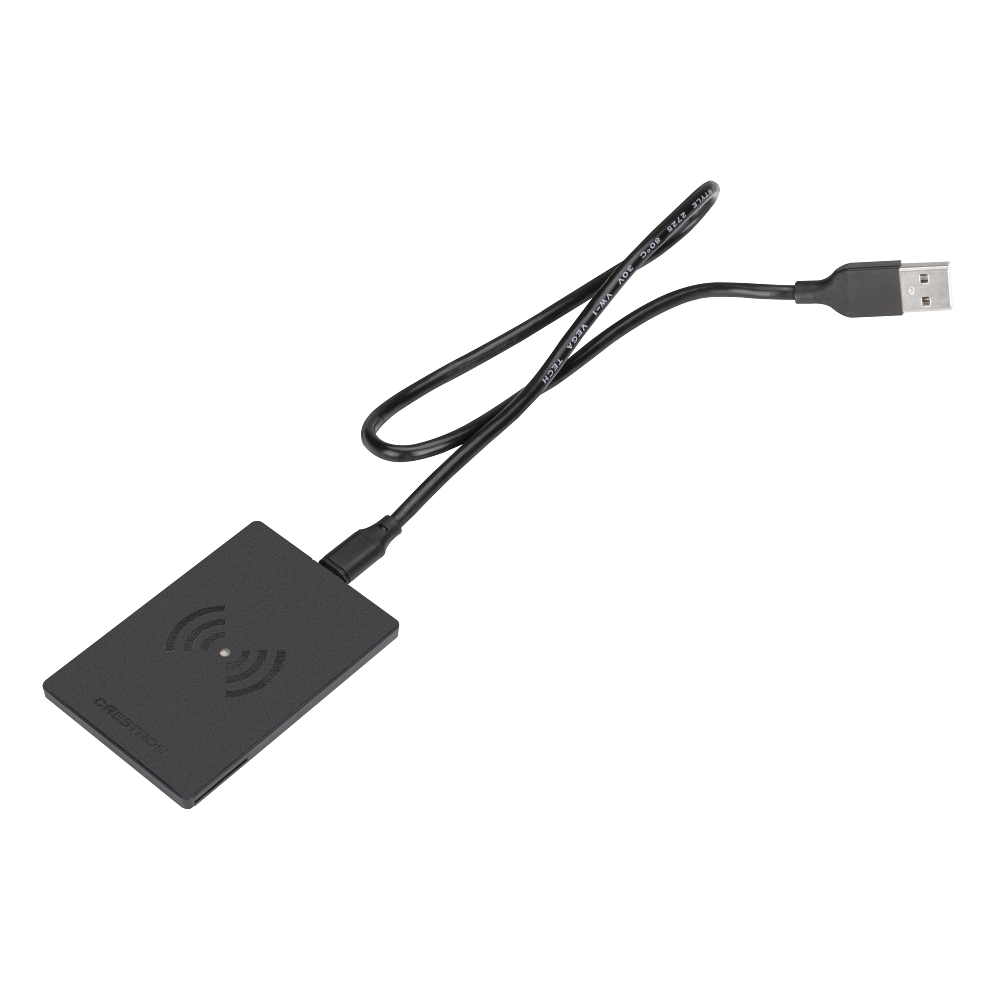

Crestron RFID-USB Card Reader
The RFID-USB reads the badge a person already carries and hands the credential to the room system over USB, so sign-in at a scheduling panel or a shared workstation is a tap rather than a typed code.
It connects and powers over a single USB run and is rated for indoor use.
| Power - Power Consumption | 70 mA typical (idle); 135 mA typical (RF field on) |
|---|---|
| Dimensions - Height | 2.58 in. (66 mm); 3.37 in. (86 mm) with mounting frame |
| Weight | 0.64 oz (18 g) |
| Environmental - Temperature | -4 to 140 F (-20 to 60 C) |
| Compliance | Regulatory Model: TWN4 Slim IC, FCC Part 15 Class B Digital Device |
| Wireless Communications - Frequency | 125 kHz (LF); 13.56 MHz (HF); 2.4 GHz (BLE) |
| Wireless Communications - Antenna | Integrated into device |
| Wireless Communications - Read/Write Distance | Up to 3.15 in. (80 mm) depending on environment (for LF and HF) |
