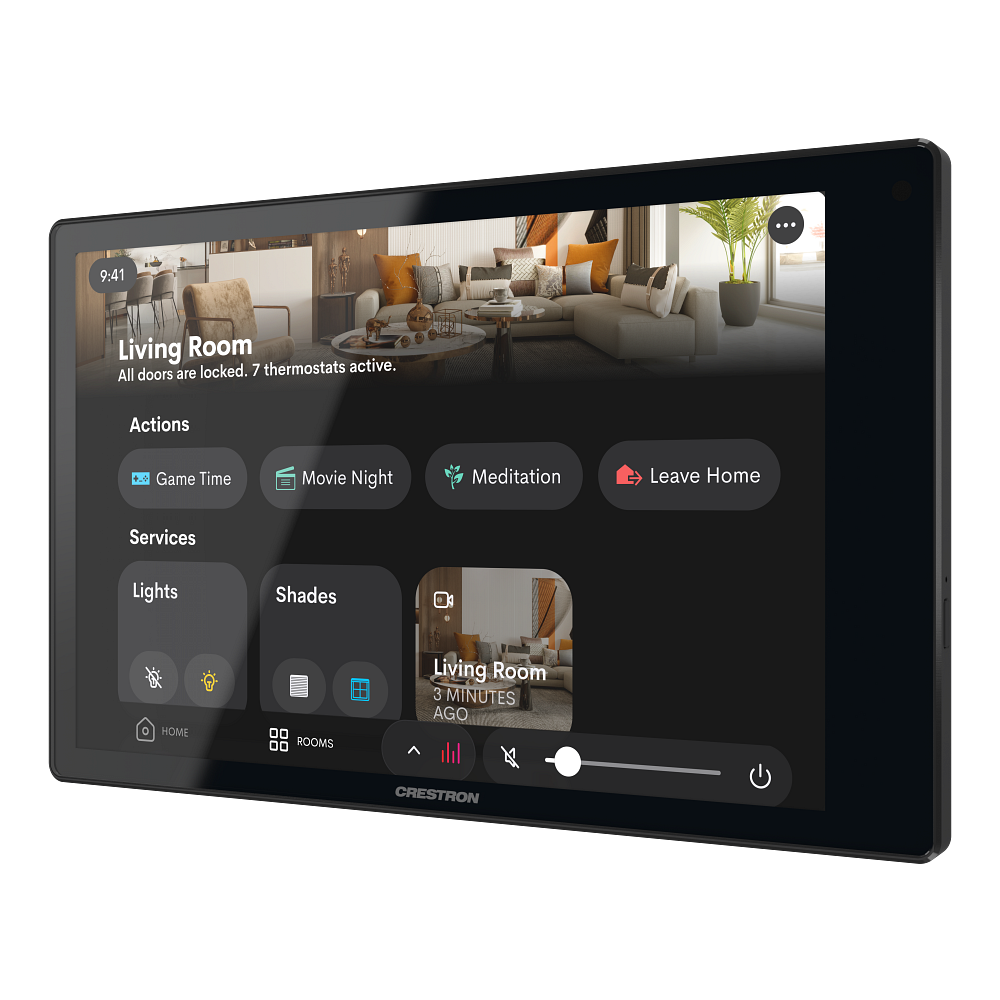

Crestron TSW-880R 8.1 in. Wall Mount Touch Screen, Crestron Home OS

The TSW-880R runs Crestron Home OS out of the box, which makes it a room interface for lighting, shades, climate, media, security, and cameras in a residential system with no control program to write. Setup and diagnostics run through the Crestron Home Setup app, a web browser, or the onscreen UI.

The hardware is the current 8.1 in. platform: a 1280 x 800 capacitive display with automatic brightness, 8 GB of RAM and 40 GB of storage, a dual scalable streaming video window decoding H.265 and H.264 up to 3840 x 2160 at 30 fps, gigabit Ethernet with PoE+, and Wi-Fi 6E across 2.4, 5, and 6 GHz with Bluetooth 5.2. Six virtual buttons in the collapsible tool bar can each be reprogrammed or hidden.

  • Resolution1280 x 800 pixels, 350 to 400 nits, 1000:1 contrast
  • Operating SystemCrestron Home OS
  • Display8.1 in. diagonal TFT active matrix color LCD, 16:10 WXGA
  • Touch ScreenProjected capacitive, 5 point multitouch capable
  • Memory8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
Operating SystemCrestron Home OS
Display8.1 in. (204 mm) diagonal TFT active matrix color LCD, 16:10 WXGA
Resolution1280 x 800 pixels, 350 to 400 nits, 1000:1 contrast
Touch ScreenProjected capacitive, 5 point multitouch capable
Memory8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
WirelessIEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5 and 6 GHz) 2x2 MIMO, Bluetooth 5.2 BLE
Streaming VideoH.265, H.264, MJPEG up to 3840 x 2160 at 30 fps, RTSP
Wired CommunicationsUSB 2.0 host port
