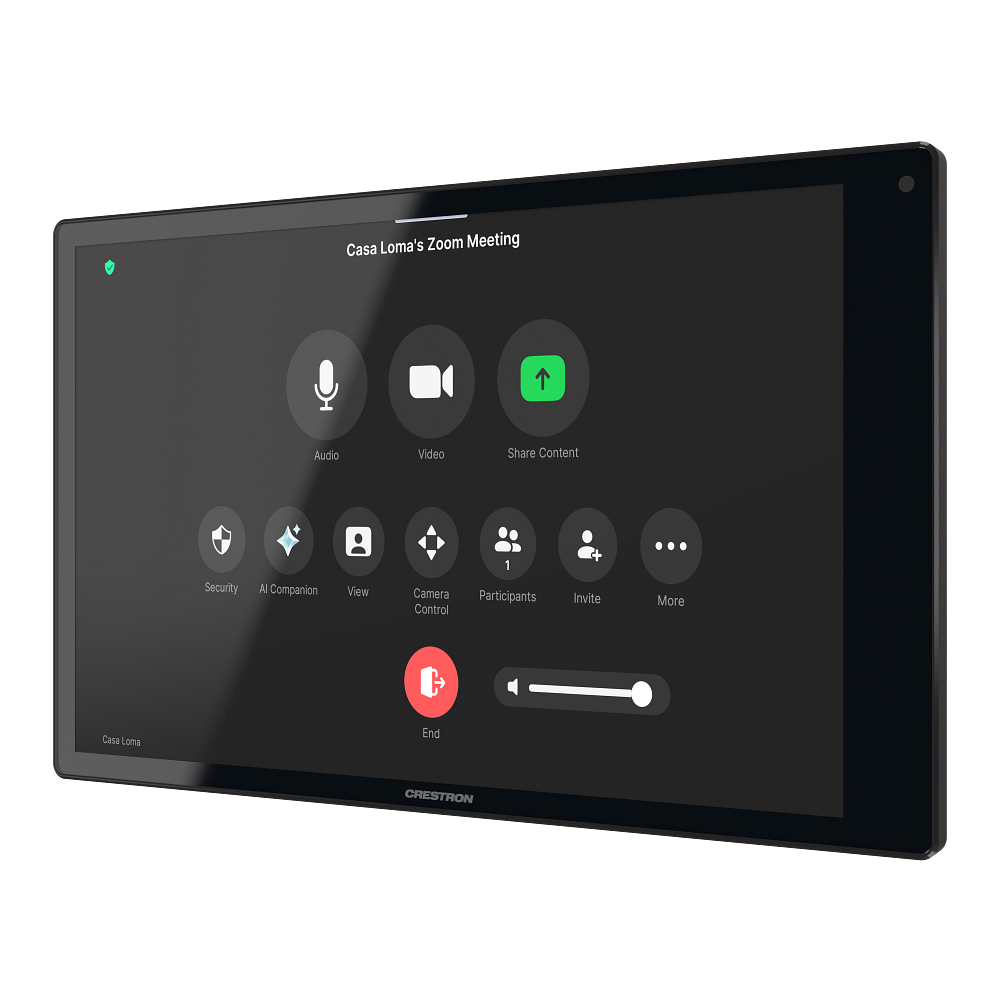

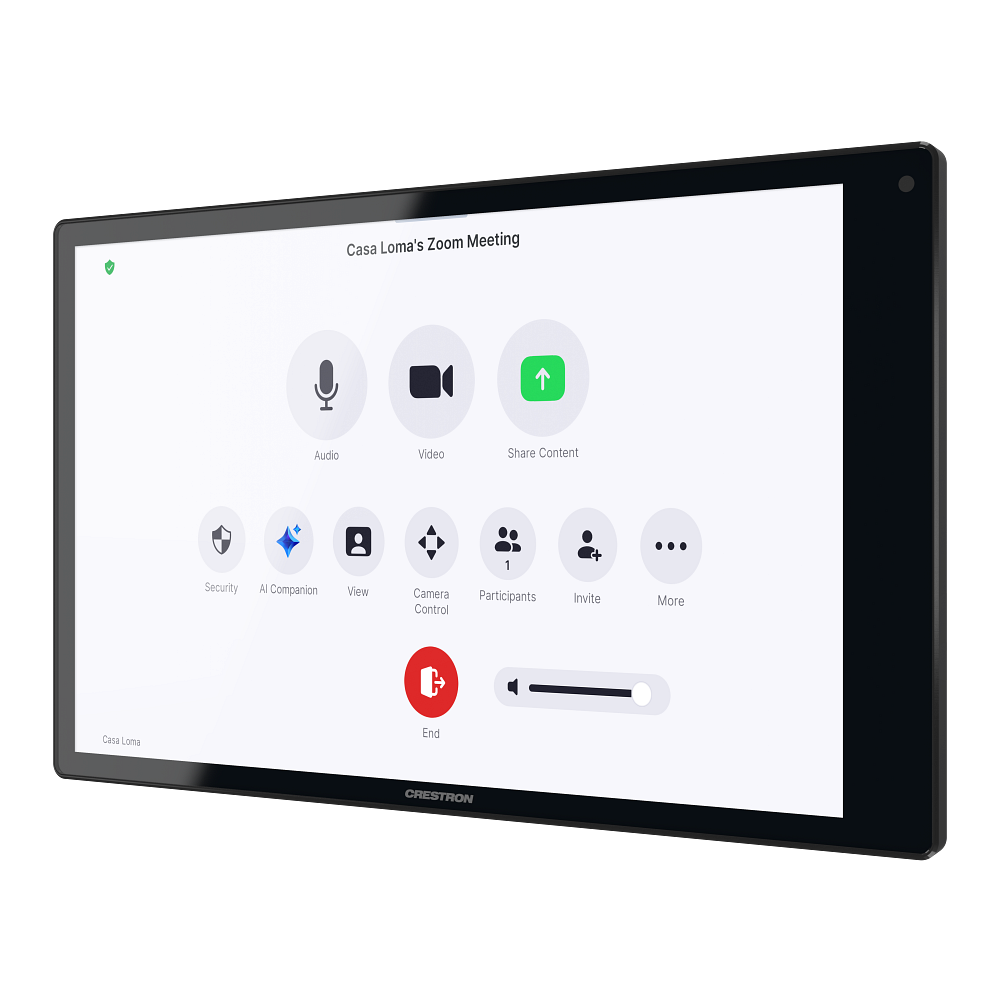

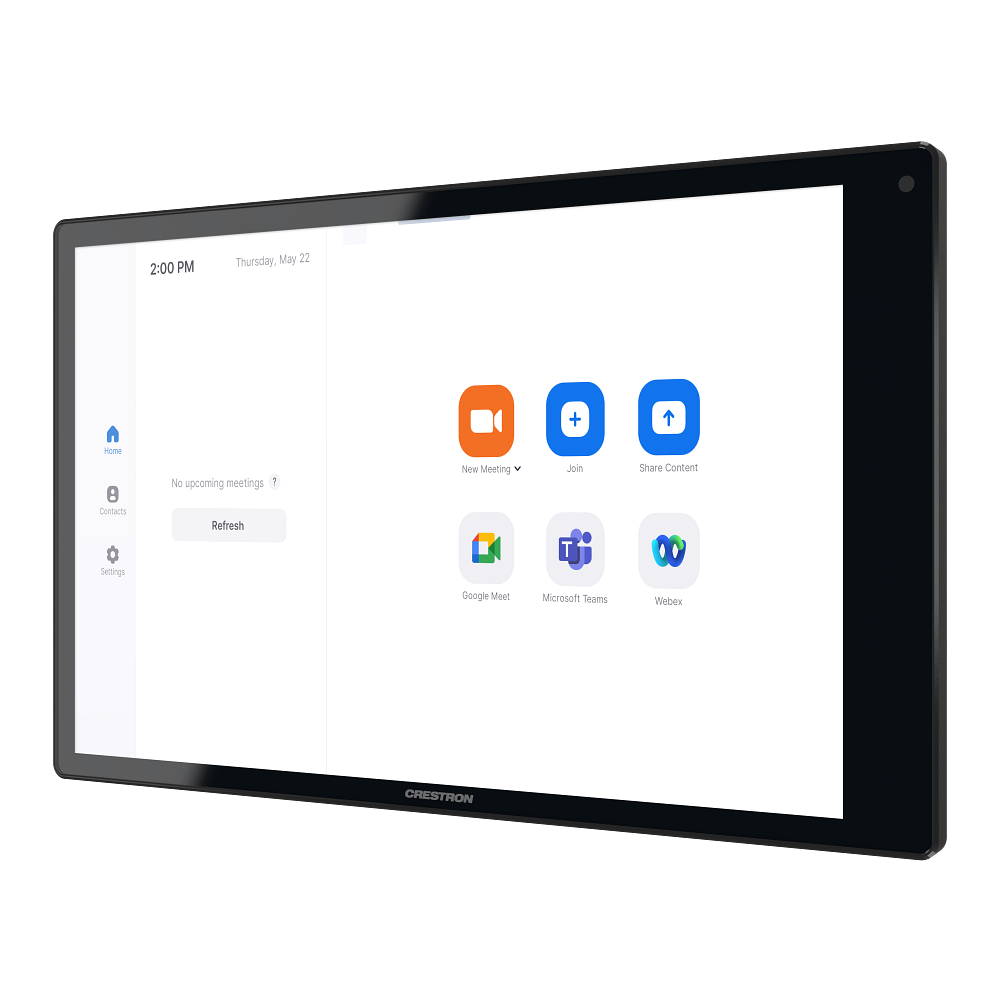

Crestron TSW-1080-UC-B 10.1 in. Wall Mount Touch Screen, UC Version
The TSW-1080-UC-B is the unified communications build of the 10.1 in. 80 Series wall touch screen. Its job is to be the in-room controller for a compatible Crestron UC engine: Crestron Videobar 70, Crestron Collab Compute, or AirMedia Series 3. It carries built-in speakers but no microphone and no Rava intercom, and its collapsible tool bar drops to five virtual buttons, which is the difference from the general-purpose TSW-1080.

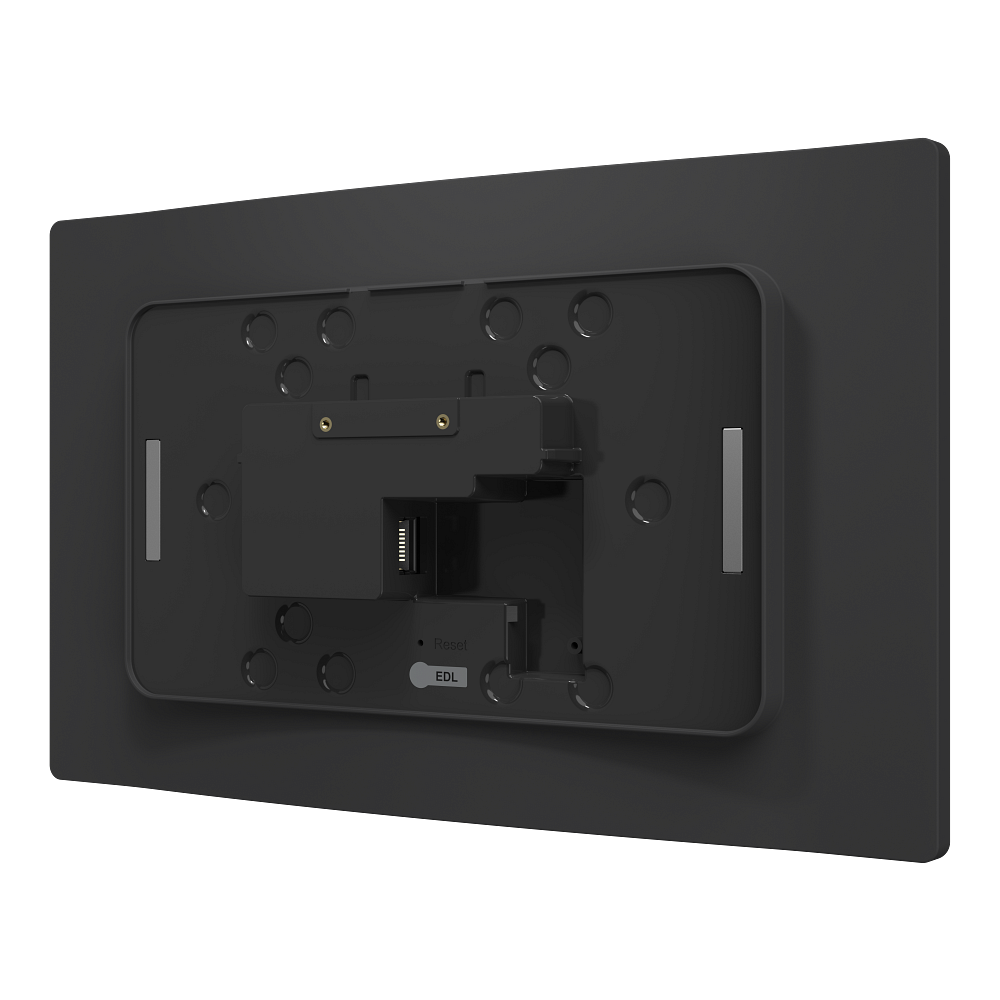

The hardware is otherwise the current 80 Series platform: a 1920 x 1200 capacitive display in a die-cast body 1.18 in. deep, 8 GB of LPDDR4 RAM, 40 GB of pSLC storage, and gigabit Ethernet with PoE+ over a single RJ-45. A USB Type-C connector serves as a USB 2.0 host, and the streaming decoder handles H.265, H.264, and MJPEG up to 3840x2160 at 30 fps. A wall mount is available separately.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 |
| Compatible Systems | Crestron Videobar 70, Crestron Collab Compute, AirMedia Series 3 |
| Memory | 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage |
| Network | 1000 Mbps Ethernet with PoE+ PD over (1) RJ-45 |
| Video | H.265, H.264, MJPEG up to 3840x2160 at 30 fps, RTSP |
| Audio | Built-in speakers |
| Housing | Die-cast, smooth black finish, glass with black surround |
| Dimensions | 5.96 in. H x 9.68 in. W x 1.18 in. D (151 x 246 x 30 mm) |
