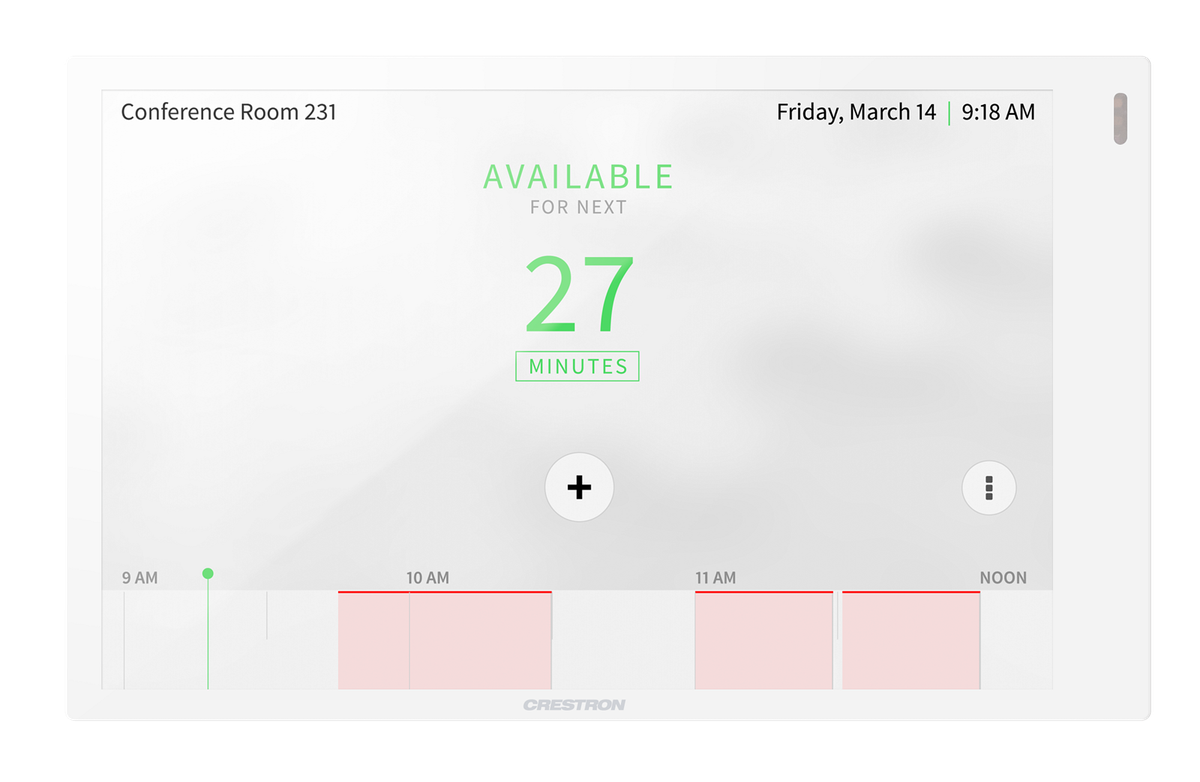

Crestron TSW-770-GV 7 in. Wall Mount Touch Screen, Government Version
The TSW-770-GV is the government build of Crestron's 7 in. wall mount touch screen. The microphone, the Bluetooth communications beacon, and Wi-Fi are removed so the panel can be installed in spaces where an open radio or an open microphone is not permitted. The 1280 x 800 capacitive display, the graphics engine, and the wall footprint match the standard TSW-770.
That leaves a wired panel on a single Ethernet run carrying control, PoE+ power, and H.265 or H.264 streaming video from a camera, an encoder, or a DigitalMedia switcher. Built-in speakers cover touch feedback and program audio. It surface mounts over a 2 or 3 gang US box, a 2 gang European DIN 49073 box, or a 2 gang UK BS 4662 box, and is offered in black smooth or white smooth.
| Display | 7 in. (178 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1280 x 800 pixels, 16:10 WXGA |
| Brightness | 350 nits (cd/m2) |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Omitted for Security | No microphone, no Bluetooth beacon, no Wi-Fi |
| Video | H.265, H.264 (MPEG-4 part 10 AVC), MJPEG |
| Audio | Built-in speakers |
| Network | 100 Mbps Ethernet with PoE+ PD |
| Dimensions | 4.17 in. H x 6.80 in. W x 1.99 in. D (106 x 173 x 51 mm) |
