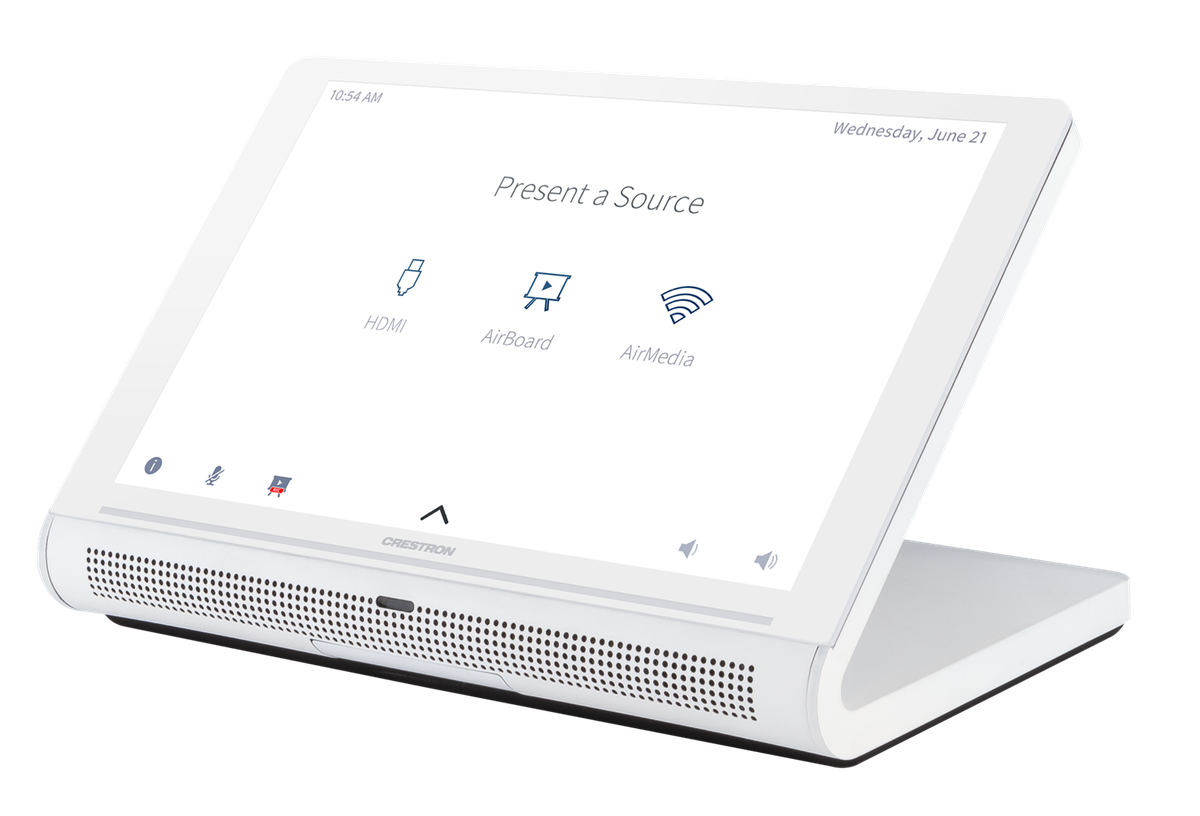

Crestron TS-770 7 in. Tabletop Touch Screen
The TS-770 sits on a conference table or a desk and drives the room from a 7 in. capacitive display. It runs Crestron HTML5 and Smart Graphics projects, and its built-in microphone adds voice recognition so a spoken command can raise a screen, pick a source, or set a lighting scene. Rava SIP intercom turns the same panel into a hands-free calling and paging station without separate wiring.
One Ethernet run does everything. PoE+ carries power, control, and H.265 or H.264 streaming video from an IP camera, a streaming encoder, or a DigitalMedia switcher, and dual-band 802.11ac Wi-Fi is available where a drop is not. A Crestron Bluetooth beacon supports proximity detection, a USB 2.0 host port takes supported Crestron accessories, and the TS-770-1070-SMK swivel mount kit fixes the panel permanently to a table when a loose unit is not wanted.
| Display | 7 in. (178 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1280 x 800 pixels, 16:10 WXGA |
| Brightness | 350 nits (cd/m2), 850:1 contrast |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Video | H.265, H.264 (MPEG-4 part 10 AVC), MJPEG streaming decoder |
| Audio | Built-in microphone and speakers, Rava SIP intercom, voice recognition |
| Network | 100 Mbps Ethernet, IEEE 802.11a/b/g/n/ac Wi-Fi (2.4 or 5 GHz) |
| Power | IEEE 802.3at Type 2 PoE+ PD, requests 15 W with LLDP |
| Dimensions | 4.02 in. H x 6.87 in. W x 4.37 in. D (102 x 175 x 111 mm) |
