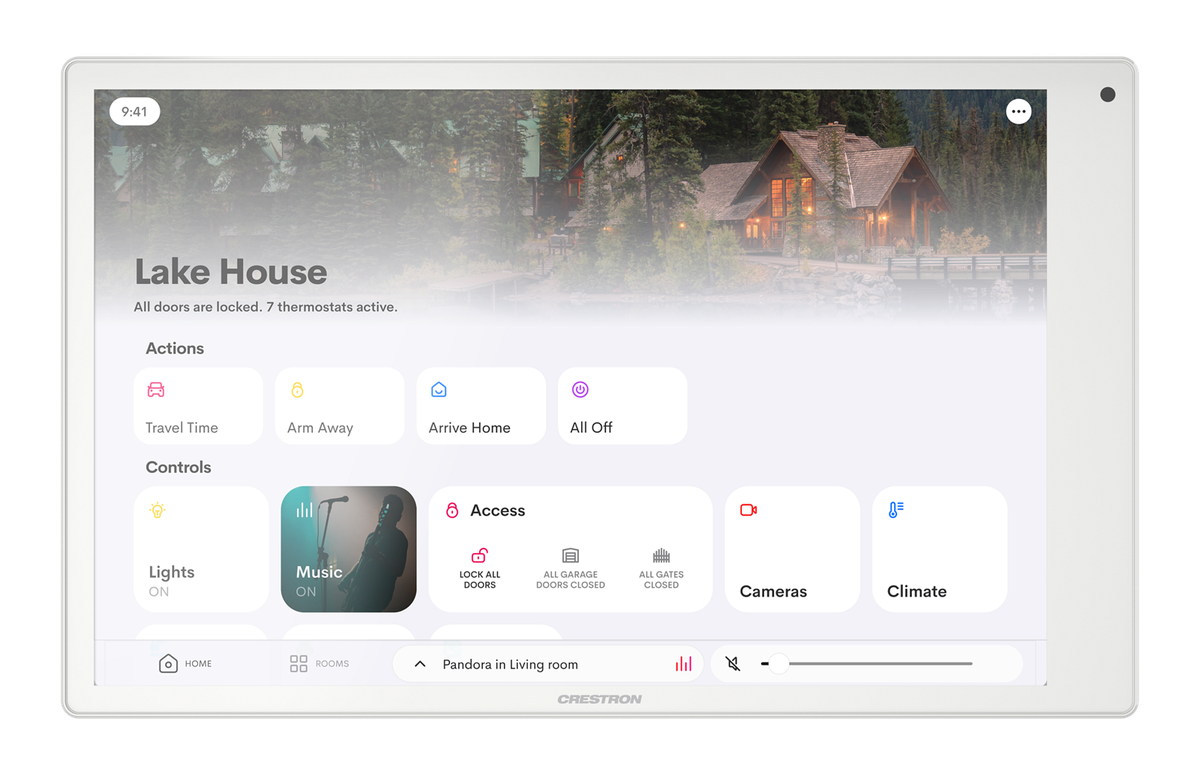

Crestron TSW-1080R 10.1 in. Wall Mount Touch Screen, Crestron Home OS
The TSW-1080R is the Crestron Home build of the 10.1 in. 80 Series wall touch screen. It arrives running Crestron Home OS, so it is adopted by the processor and configured from it rather than programmed, and it gives a residence a fixed 1920 x 1200 interface at the door of a room or in a hallway.
The die-cast body is 1.18 in. deep and surface mounts over a 2 or 3 gang US box, a 2 gang European DIN 49073 box, or a 2 gang UK BS 4662 box. Behind the glass is the current 80 Series platform: 8 GB of RAM, 40 GB of pSLC storage, gigabit Ethernet with PoE+, and Wi-Fi 6E across three bands. Streaming decode covers H.265, H.264, and MJPEG up to 4K at 30 fps, and a built-in microphone and speakers carry Rava SIP intercom.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 |
| Operating System | Crestron Home OS application |
| Memory | 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage |
| Network | 1000 Mbps Ethernet with PoE+, Wi-Fi 6E 802.11a/b/g/n/ac/ax 2x2 MIMO |
| Video | H.265, H.264, MJPEG up to 3840x2160 at 30 fps |
| Audio | Built-in microphone and speakers, Rava SIP intercom |
| Mounting | Surface mount over 2 or 3 gang US, 2 gang DIN 49073, or 2 gang BS 4662 box |
| Dimensions | 5.96 in. H x 9.68 in. W x 1.18 in. D (151 x 245 x 30 mm) |
