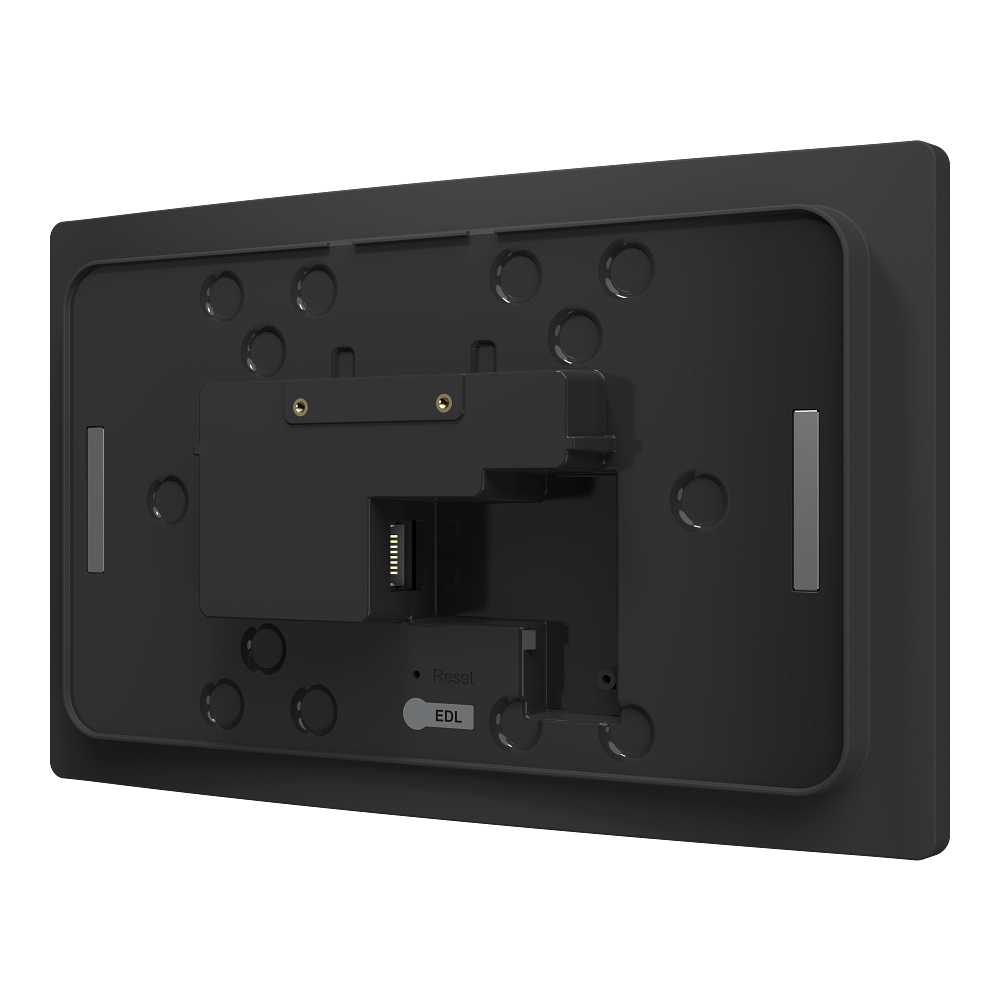

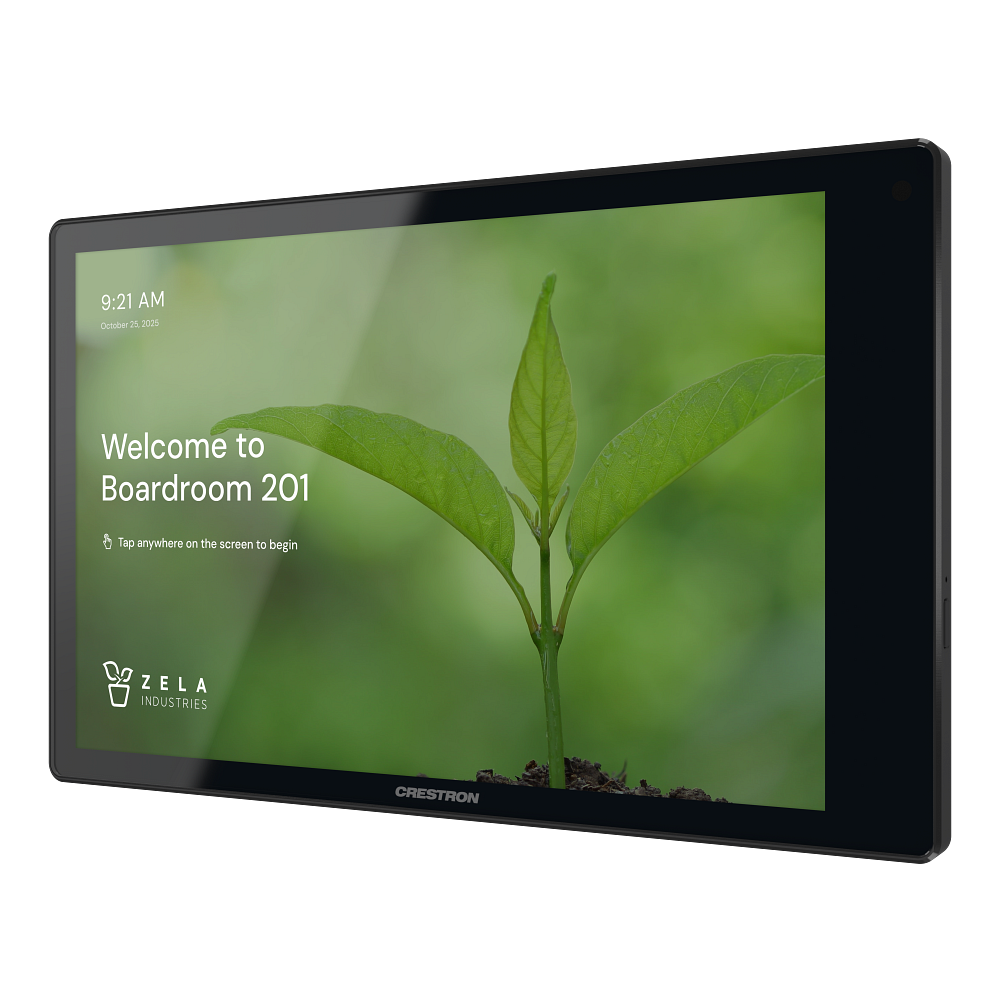

Crestron TSW-880 8.1 in. Wall Mount Touch Screen
The TSW-880 is the 8.1 in. member of Crestron's current wall mount touch screen line, and it works equally well as a boardroom controller, a room scheduling panel, or a residential wall interface. Six virtual buttons live in a collapsible tool bar and can each be reprogrammed or hidden, a proximity sensor wakes the screen before anyone touches it, and automatic brightness keeps it readable as room light changes.

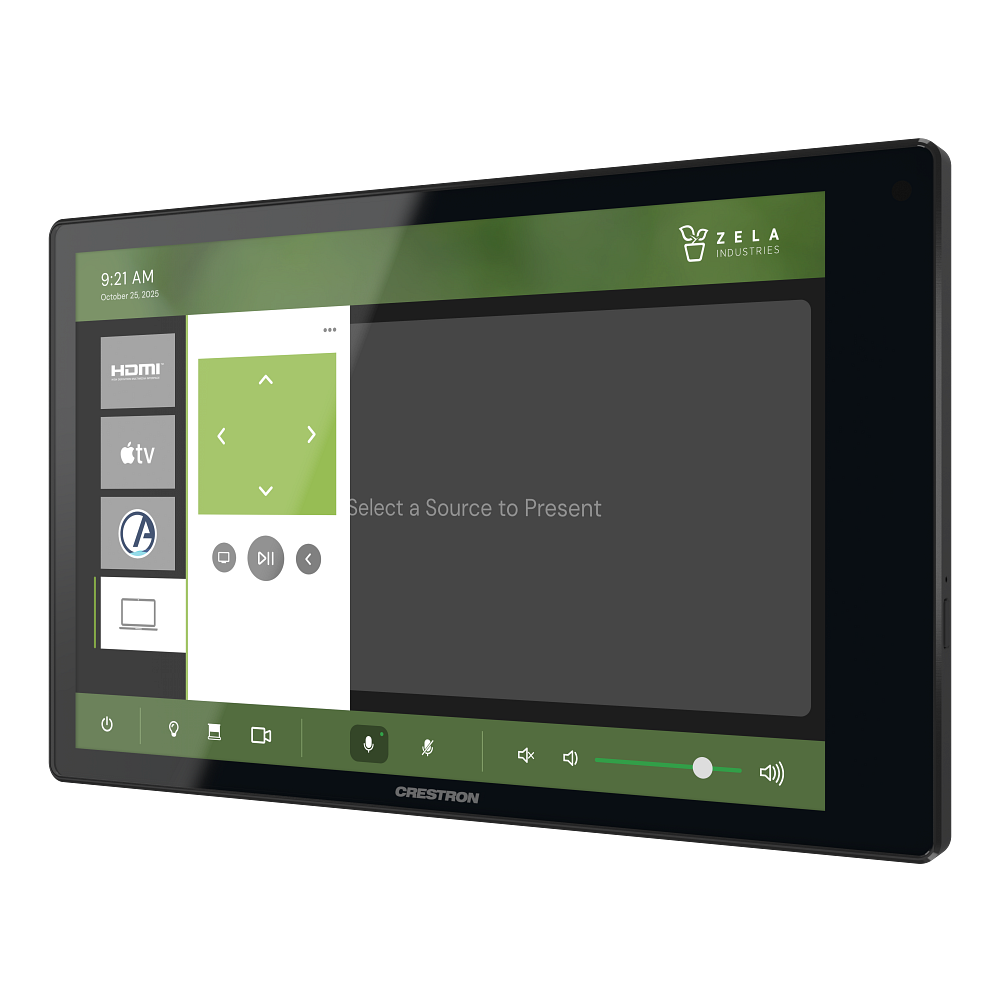

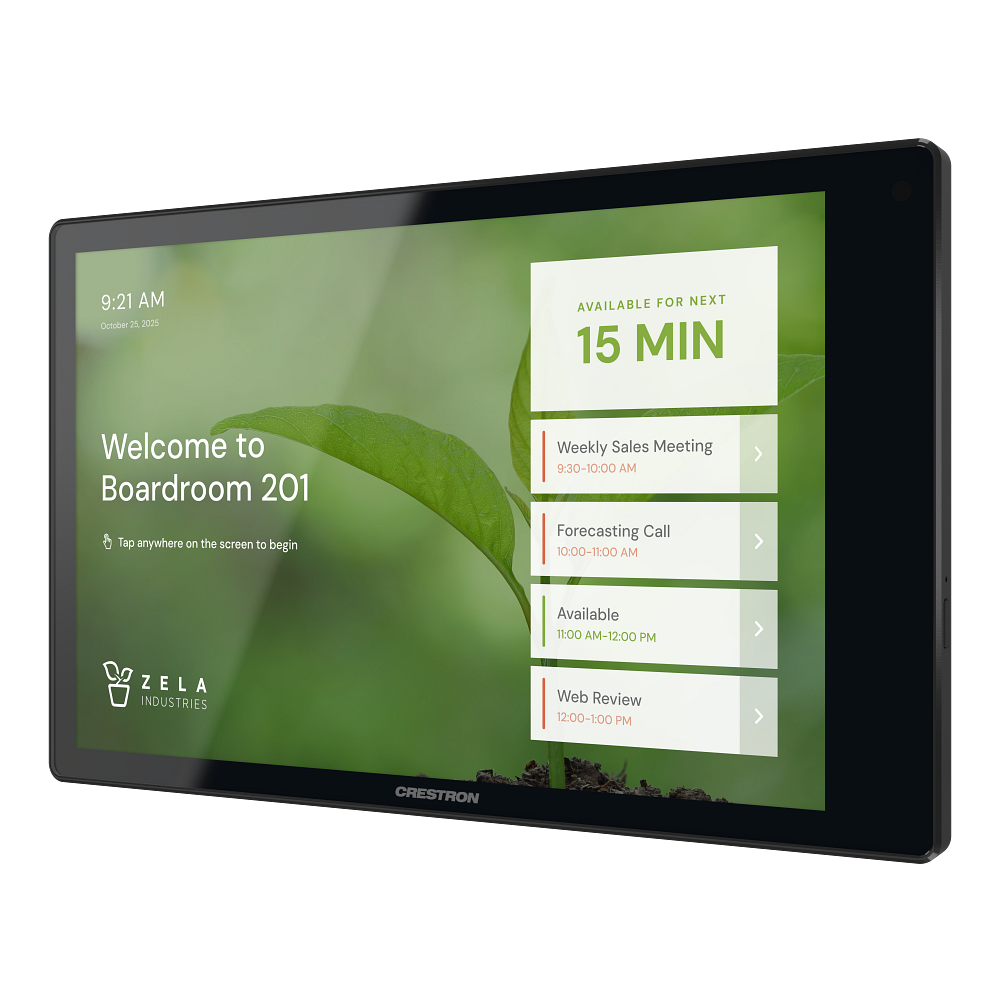

User interfaces come from Crestron HTML5 and Crestron Construct projects, or from the native Crestron Home OS and room scheduling apps built into the panel. It decodes H.265 and H.264 streams up to 3840 x 2160 at 30 fps in a dual scalable video window, carries 8 GB of RAM and 40 GB of storage, and connects over gigabit Ethernet with PoE+ or over Wi-Fi 6E across 2.4, 5, and 6 GHz. A USB-C port takes supported room scheduling accessories.
| Display | 8.1 in. (204 mm) diagonal TFT active matrix color LCD, 16:10 WXGA |
|---|---|
| Resolution | 1280 x 800 pixels, 350 to 400 nits, 1000:1 contrast |
| Touch Screen | Projected capacitive, 5 point multitouch capable |
| Memory | 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage, 1000 MB maximum project size |
| Network | 1000 Mbps Ethernet, IEEE 802.3at Type 2 PoE+ powered device, requests 30 W |
| Wireless | IEEE 802.11a/b/g/n/ac/ax Wi-Fi 6E (2.4, 5 and 6 GHz) 2x2 MIMO, Bluetooth 5.2 BLE |
| Streaming Video | H.265, H.264, MJPEG up to 3840 x 2160 at 30 fps, RTSP |
| Audio | Built-in microphone and speakers, Rava SIP intercom |
| Dimensions | 4.87 in. H x 7.93 in. W x 1.18 in. D (124 x 201 x 30 mm), 14.46 oz (410 g) |
