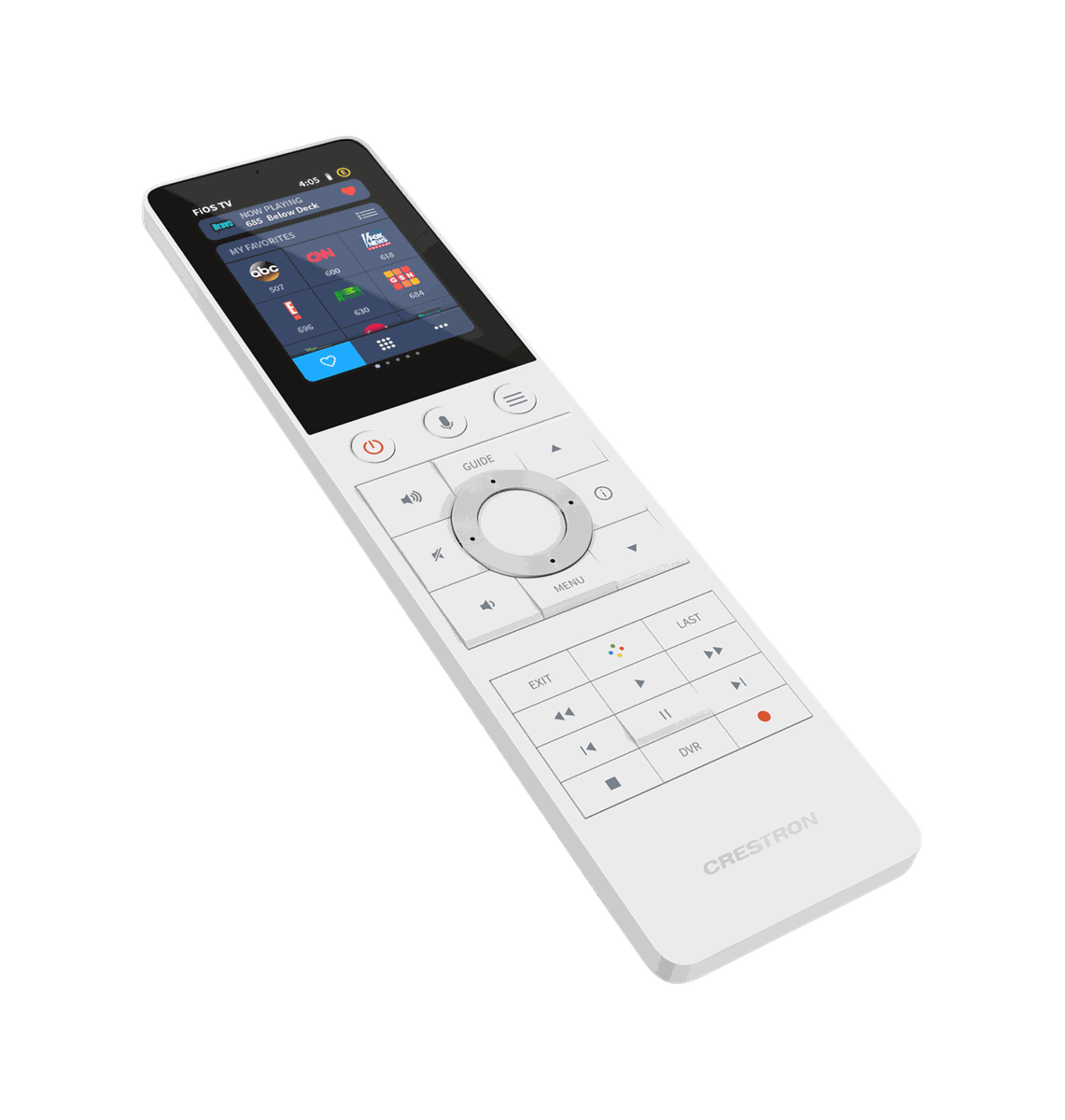

Crestron TSR-310 Handheld Touch Screen Remote
The TSR-310 is the handheld half of a Crestron room: a 3 in. colour touch screen above a full set of backlit hard buttons for power, volume, transport, and a metal five-way navigation pad. Movement sensing wakes it when it is picked up, and a dedicated voice button starts multilanguage voice capture through the built-in microphone. It runs Smart Graphics projects and the Performance UI for Crestron Home.
Wireless is 802.11a/b/g/n on 2.4 or 5 GHz with handoff across up to four access points, so the remote keeps working as it moves through a house or a floor. The Li-Polymer TSR-310-BTP battery gives 5.5 hours of continuous use and recharges in three hours, and charging is done through the TSR-310-DS table dock or the horizontal TSR-310-DS-H. The remote weighs 0.40 lb and is 8.68 in. long.
| Display | 3.00 in. (76 mm) TFT LCD, 320 x 480, 3:2 portrait |
|---|---|
| Brightness | 410 nits (cd/m2) typical, 700:1 contrast |
| Touch Screen | Projected capacitive, 3-point multi-touch capable |
| Buttons | Power, voice, home, (8) function, five-way navigation pad, (11) transport, all backlit |
| Wireless | IEEE 802.11a/b/g/n Wi-Fi (2.4 or 5 GHz), handoff across up to four access points |
| Battery | TSR-310-BTP Li-Polymer 3.7V 2000 mAh, 5.5 hours continuous, 3 hour charge |
| Audio | Built-in microphone for multilanguage voice recognition |
| Dimensions | 0.95 in. H x 2.28 in. W x 8.68 in. D (24 x 58 x 221 mm) |
| Weight | 0.40 lb (0.18 kg) |
