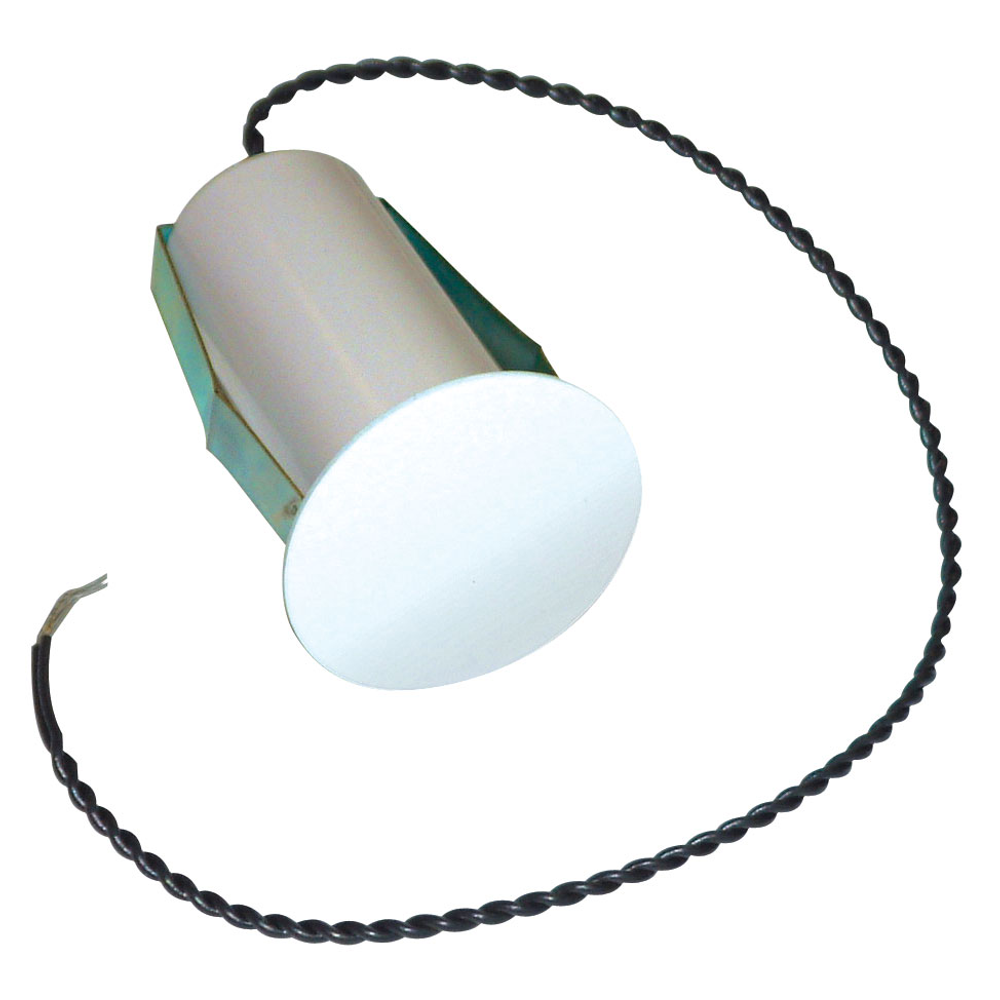

Crestron CHV-RTS Remote Temperature Sensor
A thermostat mounted by the door reads the temperature by the door. The CHV-RTS moves the measurement to where the room is actually occupied: a 1.50 in. wall-mounted disc that reports back to a Crestron thermostat over a single non-polarized twisted pair, accurate to 1 degree F across its range.
It protrudes about 1/8 in. from the wall and its primed metal cap takes paint or wallpaper, so once decorated it is close to invisible. It drops into a 1 in. round hole in drywall, and CAT5 or similar low-capacitance cable carries it up to 500 ft back to the thermostat. The optional MMK-RS kit, sold separately, simplifies rough-in during construction and allows a fully flush or non-drywall surface installation.
| Indoor Temperature Range | 0 to 110 degrees F (-18 to 43 degrees C) |
|---|---|
| Outdoor Temperature Range | -30 to 120 degrees F (-35 to 49 degrees C) |
| Accuracy | 1 degree F (0.5 degrees C) over full range |
| Connection | Single non-polarized twisted pair to the thermostat remote sensor input |
| Maximum Cable Length | 500 ft (152 m) via CAT5 or similar low-capacitance wire |
| Material | Cylindrical plastic with primed metal cap suitable for paint or wallpaper |
| Mounting | 1 in. (26 mm) diameter round hole in drywall; protrudes about 1/8 in. (3 mm); MMK-RS kit sold separately |
| Dimensions | 1.50 in. (39 mm) diameter |
