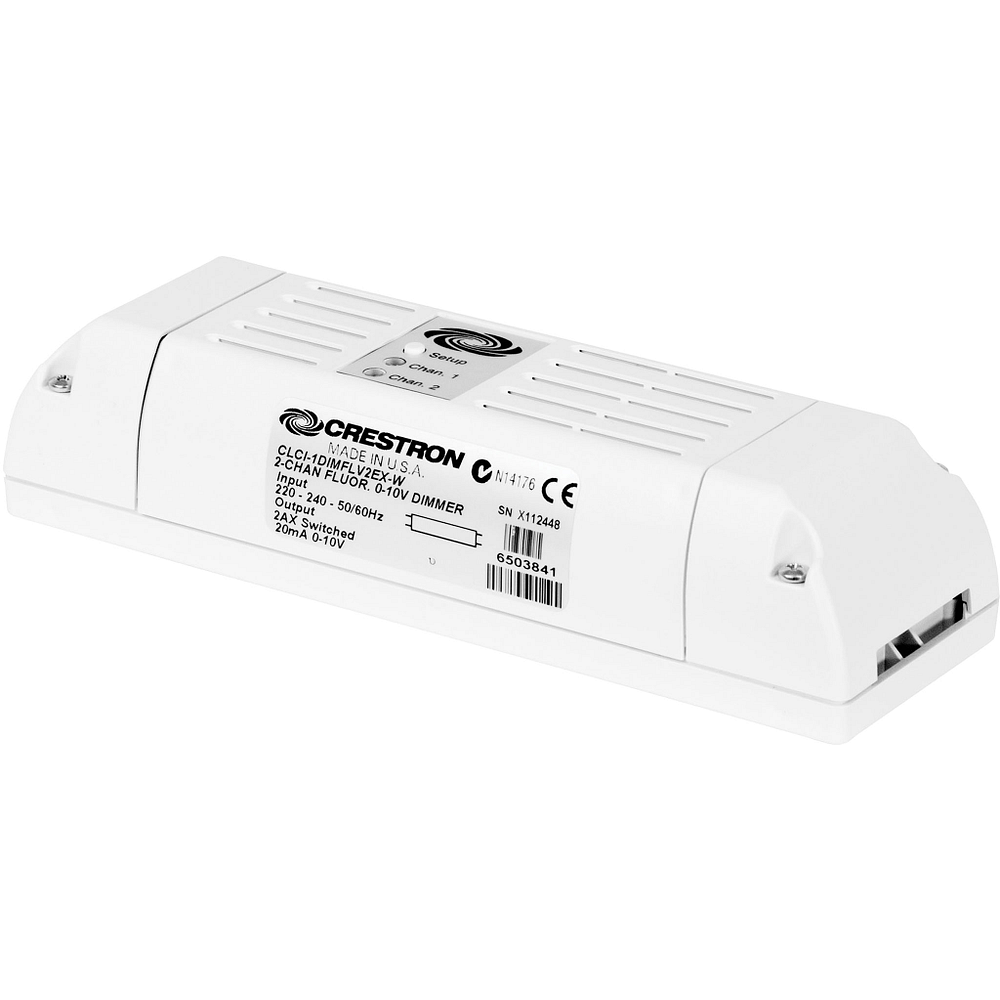

Crestron CLCI-1DIMFLV2EX-W In-Ceiling 0-10V Dimmer, 2 Channels, 230VAC
The CLCI-1DIMFLV2EX-W is a two-channel 0-10 Volt dimmer thin enough to sit in the ceiling void beside the fitting it controls. Each channel drives a 0-10V fluorescent ballast or LED driver, sinking up to 65 mA, and switches the mains side at 2AX per channel across incandescent, tungsten-halogen, magnetic and electronic low-voltage, fluorescent ballast, neon and cold cathode and motor loads at 220 to 240 VAC.
The wiring is the reason to specify it on a retrofit. Line, neutral and earth each have a second set of terminals wired in parallel, so units daisy-chain from one to the next with no wire connectors and no extra gang boxes, and a ceiling that had one switched circuit ends up with several zones. It installs inline without special wiring, keeps working from an ordinary momentary or maintained wall switch through the R terminal, and can be set up from the on-board button or that switch. It communicates over infiNET EX 2-way RF on 2.4 GHz, reaching about 45 m indoors to the gateway, and requires a CEN-RFGW-EX gateway or an MC3.
| Channels | 2, independently controlled |
|---|---|
| Dim Load Types | 0-10 Volt fluorescent ballast or LED driver, 65 mA maximum current sink per channel |
| Switch Load Types | Incandescent, tungsten-halogen, magnetic low-voltage, electronic low-voltage, fluorescent ballast, neon/cold cathode, motor |
| Maximum Load per Channel | 2AX (2A fluorescent) |
| Input Voltage | 220 to 240 Volts AC, 50/60 Hz line power |
| RF Transceiver | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4, default channel 15 |
| Range | 30 m (100 ft) indoors device to device; 45 m (150 ft) indoors device to gateway |
| Gateway | Requires a CEN-RFGW-EX gateway or an MC3 |
| Wiring | Loop-through parallel screw terminals on line, neutral and earth for daisy-chaining; R terminal for a remote momentary or maintained switch |
