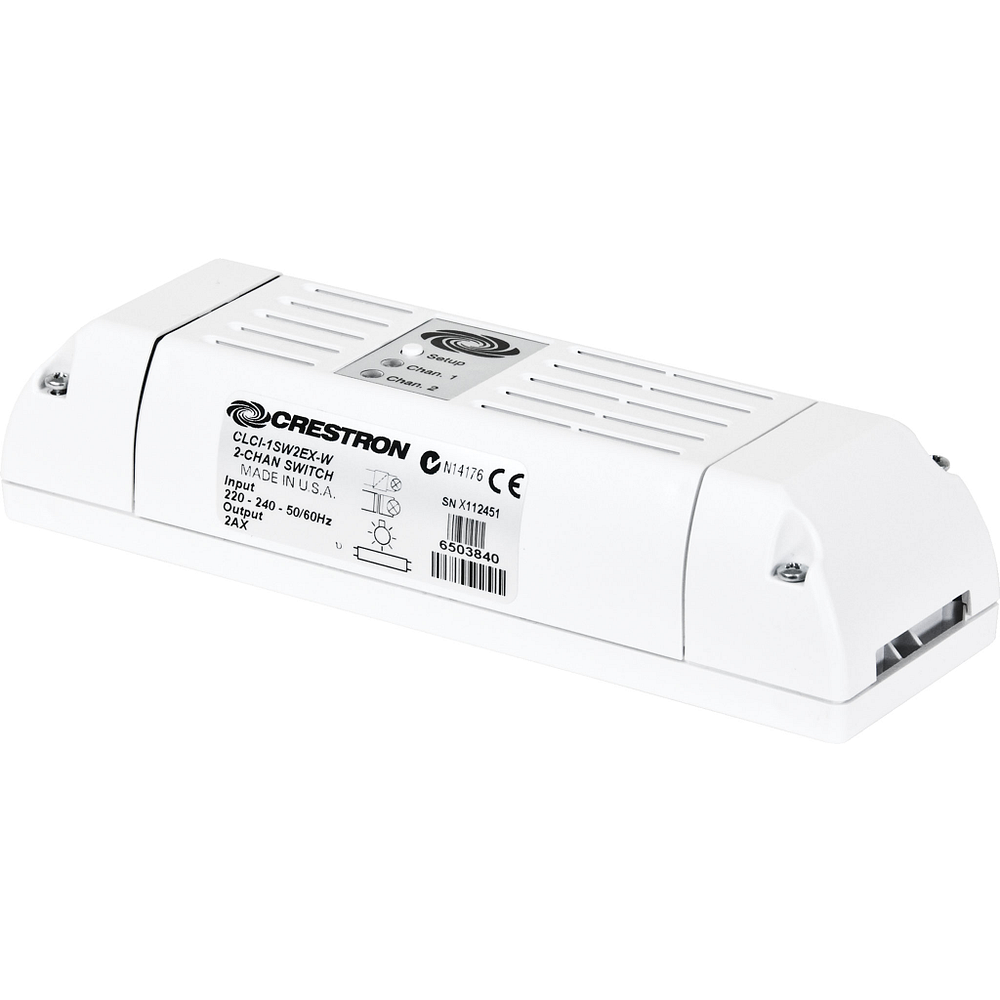

Crestron CLCI-1SW2EX-W In-Ceiling Switch, 2 Channels, 230VAC
The CLCI-1SW2EX-W switches two independent 230VAC lighting circuits from a slim body that fits in the ceiling next to the fixture. Each channel handles incandescent, tungsten-halogen, magnetic and electronic low-voltage, fluorescent ballast, neon and cold cathode and motor loads up to 500 VA, on its own pair of captive screw terminals for switched line and neutral.
It installs inline with no special wiring and keeps its existing wall switch: a standard momentary or maintained switch wired between L and R still controls it, and can also be used to set the device up alongside the on-board button. Line, neutral and earth terminals are duplicated and internally paralleled, so several units daisy-chain without connectors or extra gang boxes. Communication is infiNET EX 2-way RF at 2.4 GHz, about 46 m indoors to the gateway, and a Crestron wireless gateway is required and sold separately.
| Channels | 2, independently controlled |
|---|---|
| Line Power | 220 to 240VAC, 50/60 Hz |
| Maximum Load per Channel | 2AX (2A fluorescent), rated 500 VA |
| Load Types | Incandescent, tungsten-halogen, magnetic low-voltage, electronic low-voltage, fluorescent ballast, neon/cold cathode, motor |
| RF Transceiver | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4, default channel 15 |
| Range | 30 m (100 ft) indoors device to device; 46 m (150 ft) indoors device to gateway |
| Gateway | Requires a Crestron wireless gateway, sold separately |
| Wiring | Loop-through parallel captive screw terminals on line, neutral and earth; R terminal for a remote momentary or maintained switch |
