Crestron MC4-I 4-Series Control System, International
The MC4-I is the international version of the compact MC4 control system, sized for single-room media systems, smaller commercial spaces and multi-dwelling units where a rack-mounted processor is more than the job needs. It runs the 4-Series engine with a real-time preemptive multitasking kernel, 1 GB of SDRAM and 8 GB of flash, and supports up to ten simultaneously running programs with the appropriate licence.

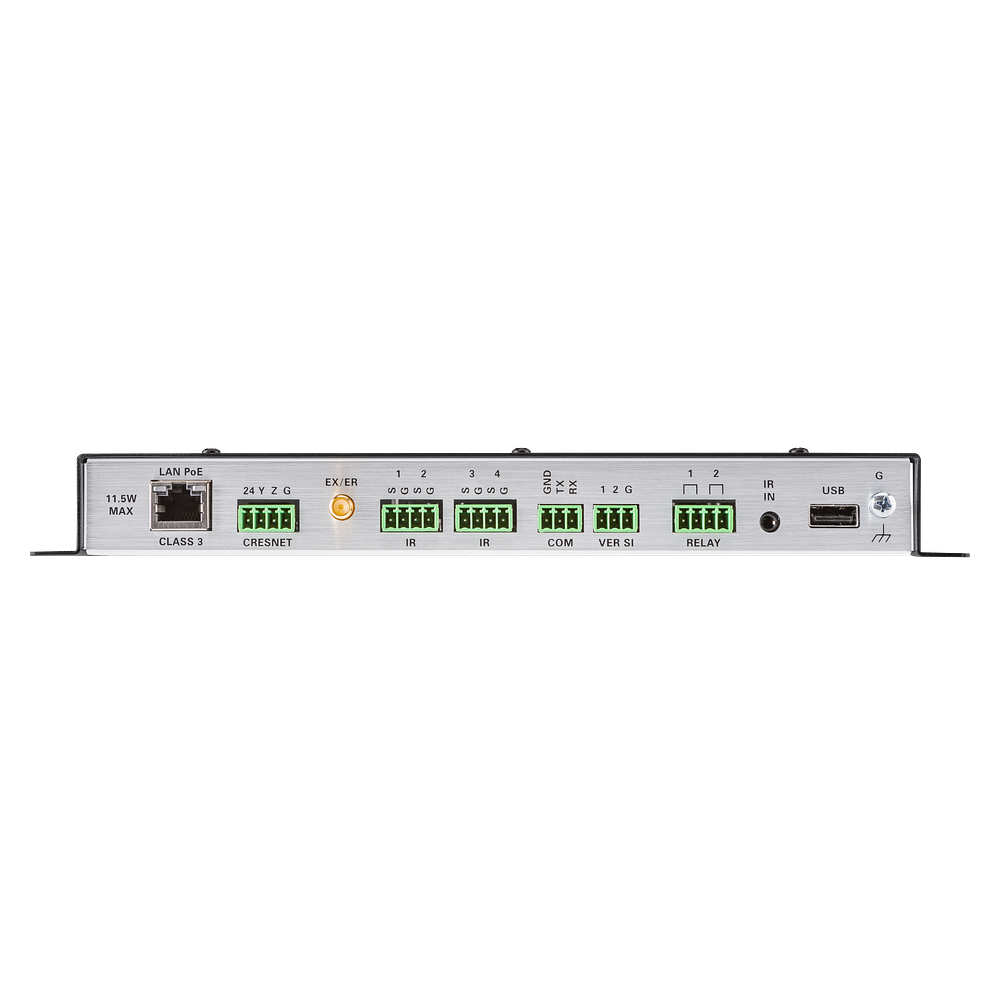

A built-in infiNET EX and ER wireless gateway acquires Crestron wireless devices directly, so keypads, thermostats and shade motors join without a separate gateway. Wired control comes off one RS-232 COM port, four IR outputs, two isolated relays and two Versiport I/O ports, with a Cresnet master port supplying 2.5 W to powered peripherals. The whole unit draws PoE over its gigabit Ethernet port at 7 W typical, and mounts freestanding, on a surface, on a single rack rail, or in 1RU with the included ears.
| Control Engine | Crestron 4-Series, real-time preemptive multithreaded kernel; Transaction-Safe Extended FAT file system |
|---|---|
| Memory | 1 GB SDRAM, 8 GB flash; microSD slot up to 32 GB; USB storage up to 1 TB |
| Ethernet | 100/1000 Mbps autoswitching; TCP/IP, SSL, TLS, SSH, SFTP, 802.1X, SNMP, BACnet/IP, XiO Cloud client |
| Wireless | infiNET EX 2-way RF, 2.4 GHz ISM channels 11-26, IEEE 802.15.4; 50 ft (15 m) to nearest mesh device |
| Control Ports | (1) bidirectional RS-232 to 115.2k baud, (4) IR outputs to 1.2 MHz, (2) isolated relays 1 A at 30 VAC/DC, (2) Versiport I/O |
| Cresnet | (1) 4-pin 3.5 mm detachable terminal block, master port, 2.5 W available |
| Power | IEEE 802.3at Type 1 (802.3af compatible) Class 0 PoE powered device; 7 W typical |
| Mounting | Freestanding, surface mount, single rack rail, or 1RU 19 in rack mountable (rack ears included) |
| Dimensions | 1.07 in H x 10.15 in W x 5.11 in D (27 x 258 x 130 mm); 1.0 lb (454 g) |
