Crestron MPC4-301 4-Series Media Presentation Controller 301

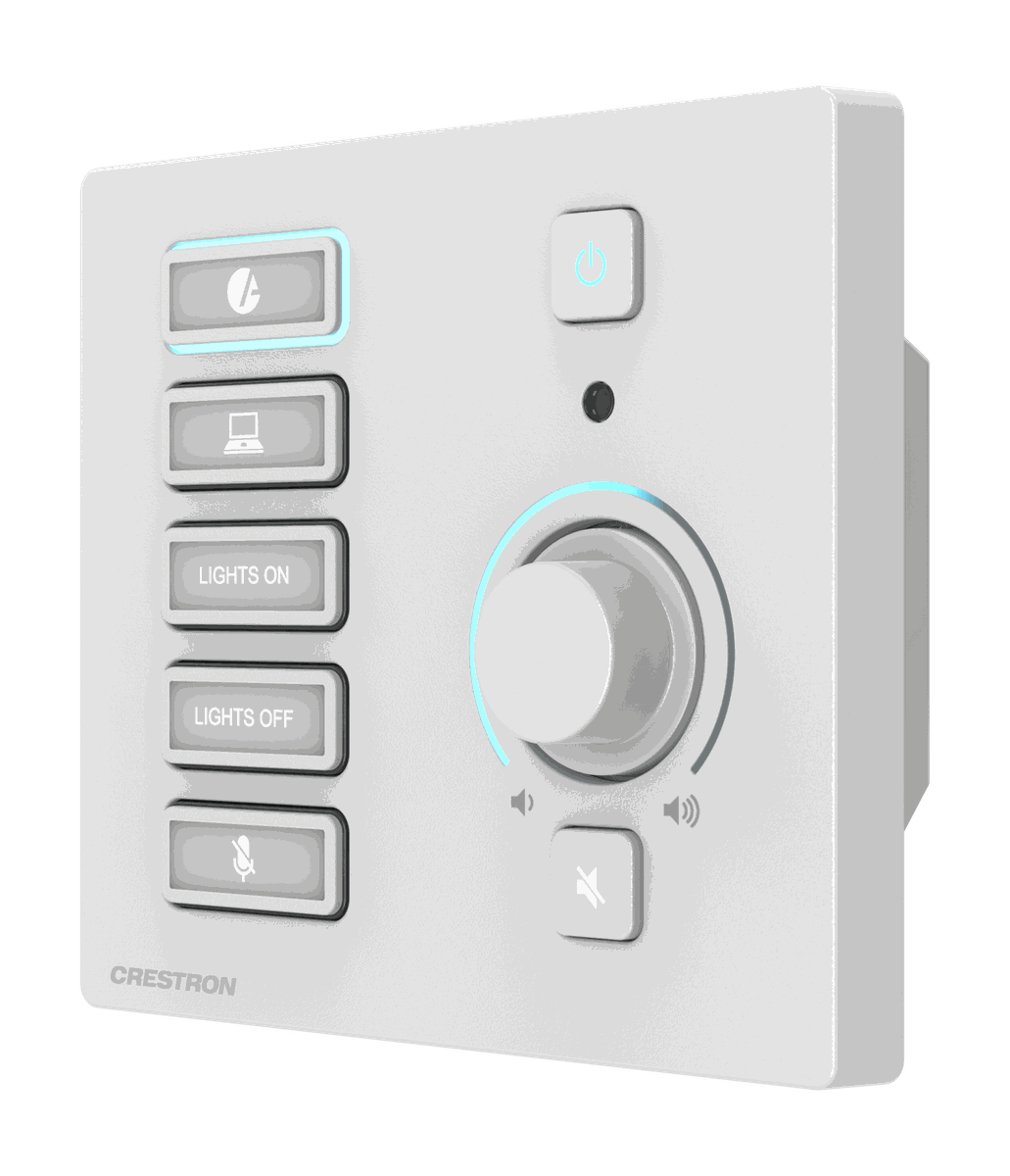

The MPC4-301 is the controller counterpart to the MPB4-301 button panel: the same five-button front with a continuous-turn rotary volume encoder and its circular LED level graph, but with a 4-Series control processor behind it, so the room needs no separate processor. It runs native .AV Framework, supports up to ten simultaneous programs and carries a battery-backed real-time clock. A Cresnet server port supplies 2.5 W to keypads and other Cresnet devices.
The five push buttons take 25 predesignated labels or five blanks, both included, with custom engraving available as MPB4/MPC4-BTN5-B or -W ENGRAVED. Enterprise deployment is the design brief: 802.1X network access control, Active Directory authentication, SSH, TLS and HTTPS, SNMP V3, and provisioning through XiO Cloud, Crestron Toolbox or Crestron Fusion. Power is PoE+, requesting 15 W with LLDP or 30 W without, at 8.5 W typical. It flush mounts in a 2-gang U.S. electrical box and includes a security screw.
| Control Engine | Crestron 4-Series control processor; up to 10 simultaneous programs; native .AV Framework |
|---|---|
| Buttons | (5) assignable push buttons; 25 predesignated labels and 5 blanks included |
| Volume | (1) continuous-turn rotary encoder with blue LED multisegment circular level graph |
| Ethernet | (1) 1000BASE-TX RJ-45, PoE+ powered device; 802.1X, Active Directory, SNMP, BACnet/IP, XiO Cloud client |
| Cresnet | Cresnet server port; 2.5 W available (104 mA at 24 VDC) |
| Power | IEEE 802.3at Type 2 PoE+; requests 15 W with LLDP or 30 W (Class 4) without; 8.5 W typical |
| Mounting | Flush mount in a 2-gang U.S. electrical box; security screw included |
| Dimensions | 4.50 in H x 5.00 in W x 2.40 in D (114 x 126 x 61 mm); 12.8 oz (363 g) |
