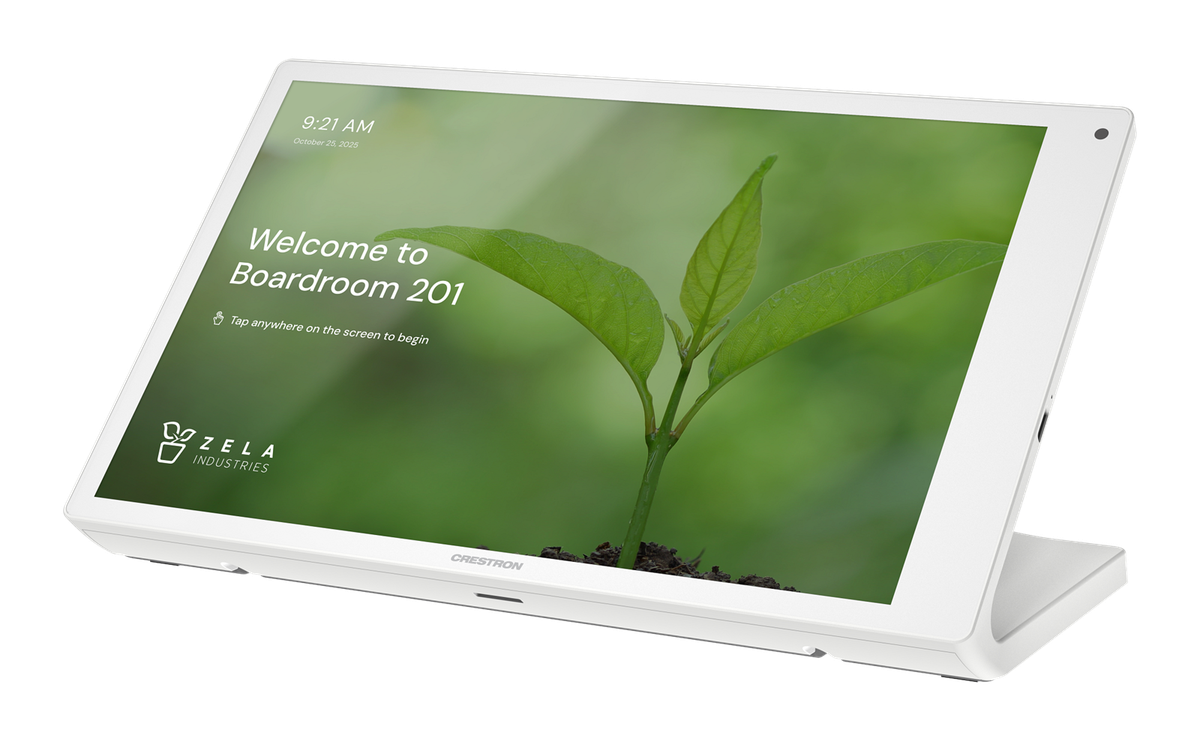

Crestron TS-1080 10.1 in. Tabletop Touch Screen
The TS-1080 is the 10.1 in. tabletop panel in the 80 Series. Its 1920 x 1200 display sits in a die-cast housing with a radar proximity sensor that wakes the screen as somebody walks up, and the platform behind it is current: 8 GB of LPDDR4 RAM, 40 GB of pSLC storage, and a 1000 MB project ceiling.
Networking is gigabit Ethernet with PoE+ plus Wi-Fi 6E 2x2 MIMO on 2.4, 5, and 6 GHz. The streaming decoder handles H.265, H.264, and MJPEG at up to 3840x2160 and 30 fps over RTSP, with AAC stereo audio. A built-in microphone and speakers drive Rava SIP intercom, and the single USB Type-C connector is a 2.0 host port today with DisplayPort Alt Mode listed as coming. The government version, TS-1080-GV-B, is listed here as a variant.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 |
| Brightness | 350 to 400 nits (cd/m2), 1000:1 contrast |
| Memory | 8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage |
| Network | 1000 Mbps Ethernet, Wi-Fi 6E 802.11a/b/g/n/ac/ax 2x2 MIMO (2.4, 5, 6 GHz) |
| Video | H.265, H.264, MJPEG up to 3840x2160 at 30 fps, RTSP |
| Audio | Built-in microphone and speakers, Rava SIP intercom |
| Power | IEEE 802.3at Type 2 PoE+ PD, 44 BTU/hr heat dissipation |
| Dimensions | 4.88 in. H x 9.68 in. W x 4.53 in. D (124 x 245 x 115 mm) |
